Across International Ai P04M 0.4L/min Compact Peristaltic Pump ETL

Save $8.90 USD

Price:
Sale price$881.10 USD Regular price$890.00 USD
Description

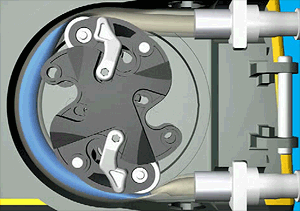

A peristaltic pump, also commonly known as a roller pump, is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing (though linear peristaltic pumps have been made). A rotor with a number of "rollers", "shoes", "wipers", or "lobes" attached to the external circumference of the rotor compresses the flexible tube. As the rotor turns, the part of the tube under compression is pinched closed (or "occludes") thus forcing the fluid to be pumped to move through the tube. Additionally, as the tube opens to its natural state after the passing of the cam ("restitution" or "resilience") fluid flow is induced to the pump. This process is called peristalsis and is used in many biological systems such as the gastrointestinal tract. Typically, there will be two or more rollers, or wipers, occluding the tube, trapping between them a body of fluid. The body of fluid is then transported, at ambient pressure, toward the pump outlet. Peristaltic pumps may run continuously, or they may be indexed through partial revolutions to deliver smaller amounts of fluid.

Source: Wikipedia





















Specifications
Specifications



 Model  P04M
 Electrical requirements
 110V-230V, with auto intelligent voltage recognition
 50/60Hz, 1-Phase 22 watts
 Power cord  110V US 3-prong (comes with purchase)
 230V cord (available upon request)
 Pumping rate
 0.4L/min
 Max. rotation speed  100 rpm (at 0.1 rpm step)
 Pump head
 Y15

 Max. tubing size

 1/2"

Standard Tubing Model Number

TP04M.XF

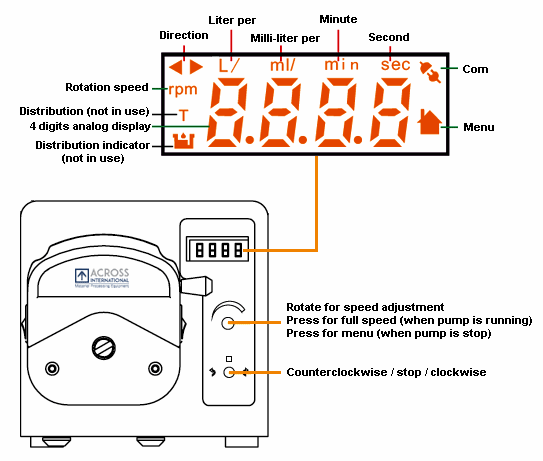

 Controller

 Type: analog
 Working temperature  0 to 40°C, < 80% humidity
 IP rating
 IP31
 Communication port  Included: Remote on/off switch
 Optional: RS485,
0-5V, 0-10V, 4-20mA input.

PLC control of pumps start, stop, speed and rotation directions.

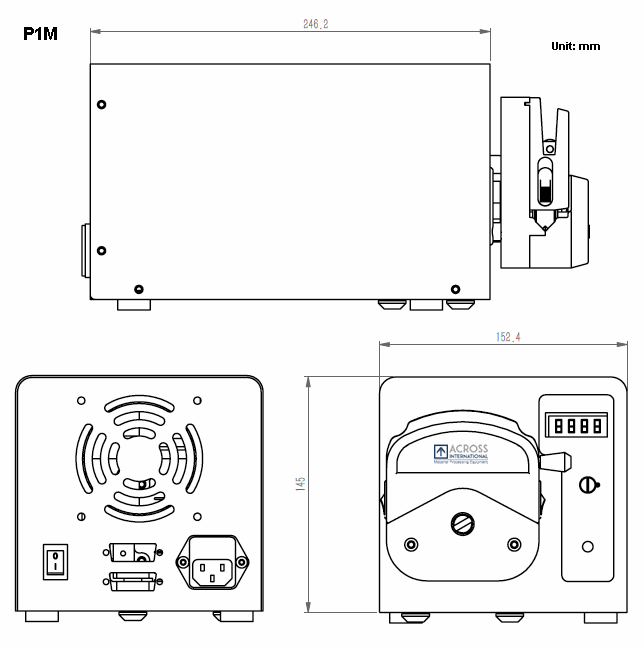

 Unit/shipping dimensions (WxDxH)
 6 x 12 x 7.5" / 10 x 15 x 10"
 Unit/shipping weight
 10 Lbs
 Compliance

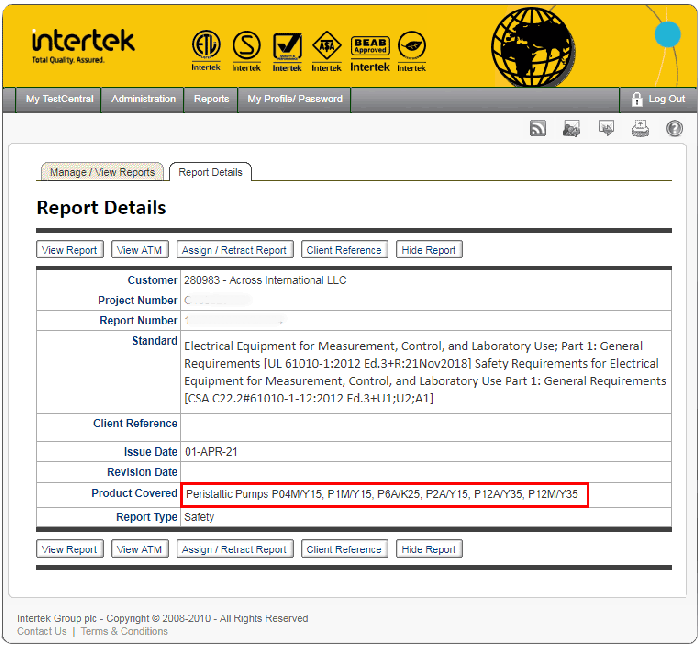

 ETL tested to UL and CSA standards
 Warranty  One year
Standard Packages

Standard package



 Part description

 Quantity

Part image

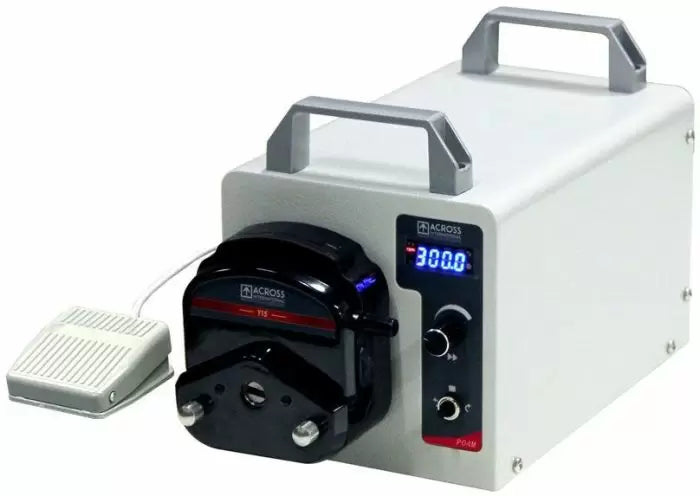

 Ai P04M peristaltic pump
1 set

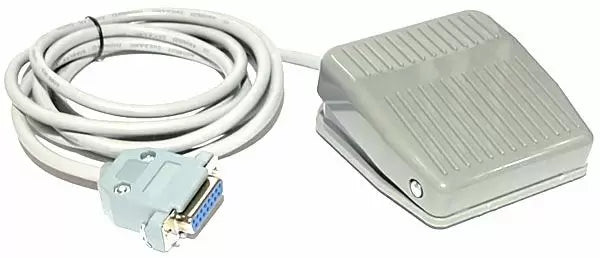

 Remote on/off switch - 75 inches
1 pc

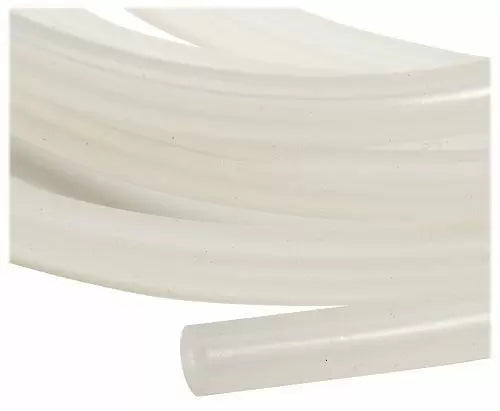

 Silicone tubing (4.8mm ID, 8mm OD)
6.5 ft

 Hose barb adapter
2 pcs
 110V US 3-prong power cord (230V cord upon request)
1 pc
 Users manual 1 pc
