Ai Glacier 4 Cu Ft -86°C Ultra-Low Upright Freezer ETL 110V

Save $215.64 USD
Power Lab Supply 2SKU: G04
Price:
$5,175.36 USD $5,391.00 USD
Description

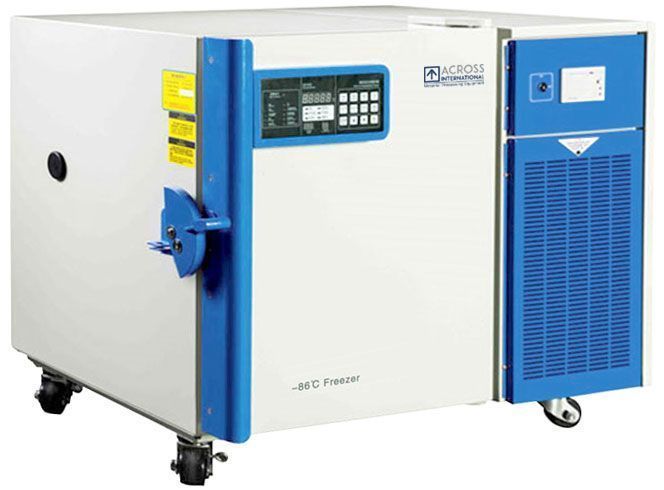

The Ai Glacier 4 Cu Ft -86°C ultra-low upright ULT freezer is designed for small labs that need a small amount of products or sample storage. Our unique single-compressor design offers ultra-low power consumption, very low noise, and ease of maintenance.

Features

  • CDC and VFC compliant
  • Great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
  • ETL tested to UL 61010-1 and CSA C22.2 standards
  • ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
  • Remote alarm, RS232, 4-20mA transmitter (optional)
  • Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
  • Digital temperature display with microprocessor-based temperature controller
  • All stainless steel interior for clean operation, durability, and ease of maintenance
  • Built-in printer tells you exactly how long it takes to go down to all temperatures
  • Stainless steel interior for clean operation, durability, and ease of maintenance
  • Dual silicon sealing gaskets for ultra airtight operation
  • 48-hour battery backup for controller, alarm and printer
  • Extremely quiet and reliable
  • Built-in swivel casters with locks

Important!

  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.



Specifications
Specifications
 Model  G04
 Electrical requirements  110V (±10%) 60Hz 1-Phase 950 watts 8.6A
 Performance  Temperature range: -40°C to -86°C

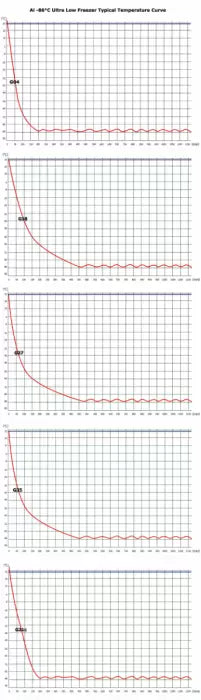

 Time to reach -86°C: 4 hours
 Compressor  Make: SECOP (formerly known as Danfoss), Germany
 Model: SC18MLX (104L2105)
 Power: 115V 60Hz 1-PHASE, 1HP
 Number of compressors: one
 Refrigerant: Ai proprietary mixture gases, CFC-free
 Chamber  Dimensions: 17.75 x 19 x 20" (WxDxH)
 Material: stainless steel
 Effective capacity: 3.5 Cu Ft
 Date printer  Built-in, records 7 days of data
 Shelf  Come with unit: one adjustable shelf (2 compartments)
 Material: 304 stainless steel
 Capacity: 65 Lbs, evenly distributed
 Dimensions: 17.5 x 17.5 inches
 Additional shelf unit price: $200

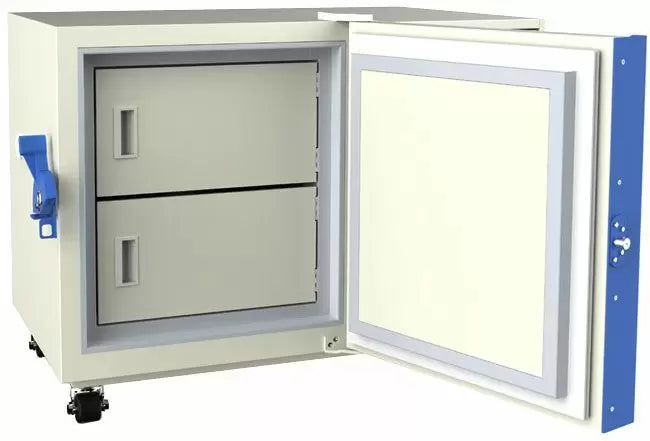

 Door and gasket  Inner door: two, each with one sealing gasket
 External door: one with dual sealing gaskets, lock-able
 Access port  One, 30mm diameter
 Built-in swivel casters  Four
 Noise level  48 dBA
 Communication  Remote alarm, RS232, 4-20 mA transmitter (optional)
 Working environment  - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
 - Humidity: <80% Rh
 - Altitude: < 2000 m / 6561 Ft
 - Stable, well-ventilated platform with no excessive dust
 - Keep freezer at least 12 inches from any walls or ceiling
 - Use dedicated power, do not share outlet
 - Extension power cable should be less than 10 feet is required
 - Freezer and power outlet should be grounded properly
 - Avoid direct sunlight, water spill and do NOT use freezer outdoor
 - Clean condenser fins and remove frost inside chamber at least once a month
 - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
    24 hours before turning the unit on for the first time.
 Battery backup system  48 hours (for controller display and alarms only)
 Unit/shipping weight & dimensions  380 Lbs / 455 Lbs

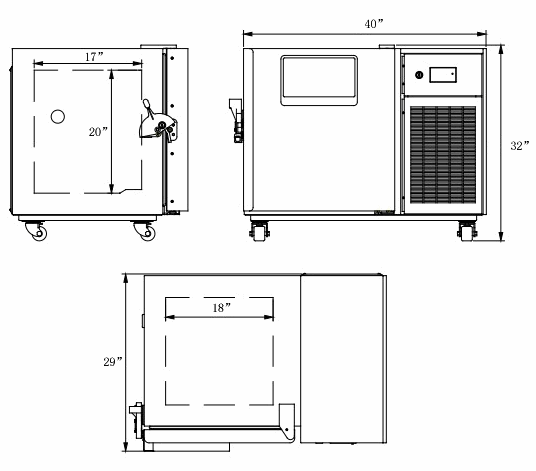

 42 x 28 x 32" / 46 x 32 x 45" (WxDxH)
 Safety  Compressor over-temp protection
 Compressor power surge delay protection
 Short circuit and ground protection
 Over-current protection
 Over-temperature and low-temperature protection
 Power failure protection
 Low battery, door open, filter clogging, system failure alarms
 External door with lock
 Compliance  UL STD 61010-1 (standard)
 CSA C22.2 NO. 61010-1 (standard)
 UL STD 471 (optional)
 Warranty  One year
Standard Packages
Standard Package

Part description

 Quantity

Part image
Ai G04 -86°C ultra-low upright freezer 1 pc

Remove-able shelf (17.5 x 17.5)” 1 pc
 Ice scraper 1 pc

 Printer paper for built-in printer 1 roll
 Door key 2 sets
 User's manual 1 pc
