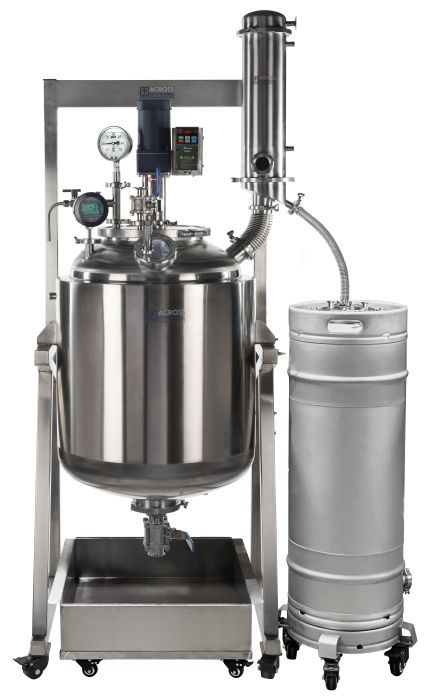

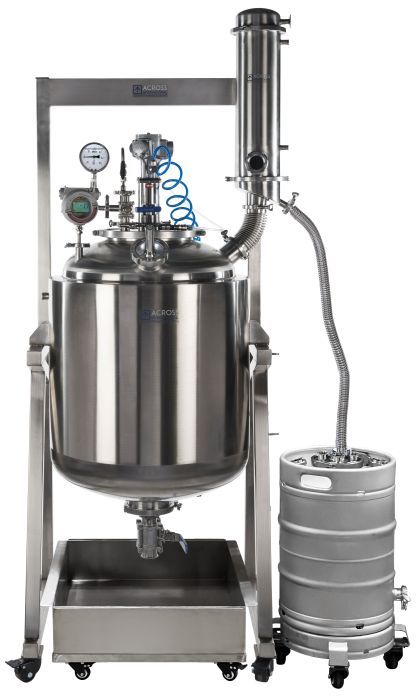

Name: Across International Ai ETL C1D1 Dual-Jacketed 200L 316L-Grade Stainless Steel Reactor
Brand: Power Lab Supply 2
SKU: SR200
Price: 23990.4 USD
Availability: OutOfStock

Across International Ai ETL C1D1 Dual-Jacketed 200L 316L-Grade Stainless Steel Reactor

Roll over image to zoom in Click on image to zoom

Peer review model lead time: 4 weeks

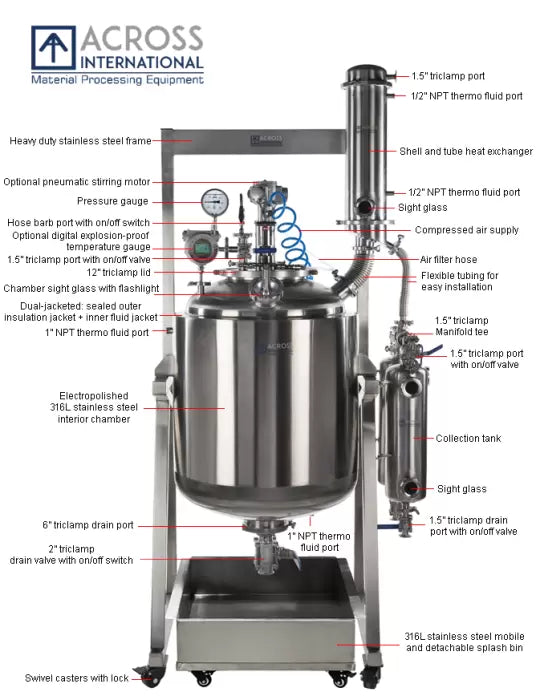

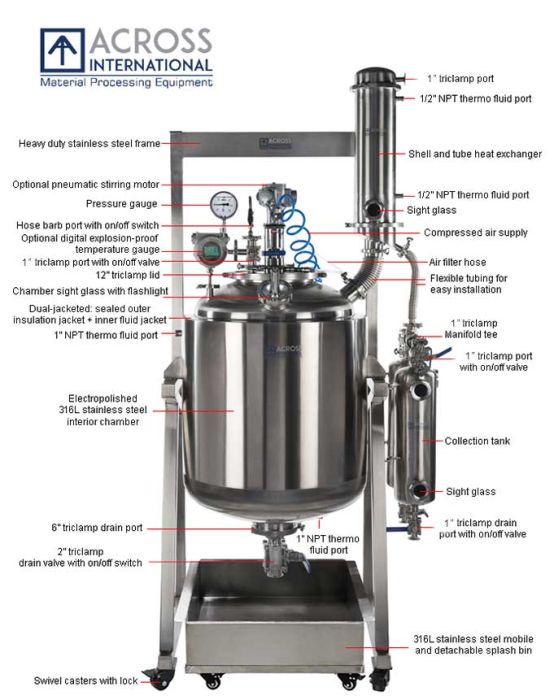

Ai 316L Grade Stainless Steel Reactor Features

Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
Shell and tube heat exchanger with 70 tubes for the best condensing results
ElectroPolished internal chamber

Greatly reduces surface roughness by leveling micro-peaks and valleys
Improved vacuum pressures, out-gassing rates, and pumping speed
Prolong equipment lifespan by reducing friction and wear
Much better sterilized and semiconductor grade surface
Essential for the food and pharmaceutical industries

Detachable condenser and collection tanks
Dual collection tanks with big sight glass allows you to drain without breaking vacuum
High drain port clearance for easy draining or added filtration
Large ports (top 12" bottom 6") allows easy chamber cleaning
Top placed vacuum port on condenser provides better flow and condensing results
No messy cable, with space saving integrated stirring motor controller
Heavy-duty stainless-steel frame with swivel casters
Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
Flexible bellow condenser connection reduces shipping damage
Electric motor and controller model is ETL certified to UL and CSA standards

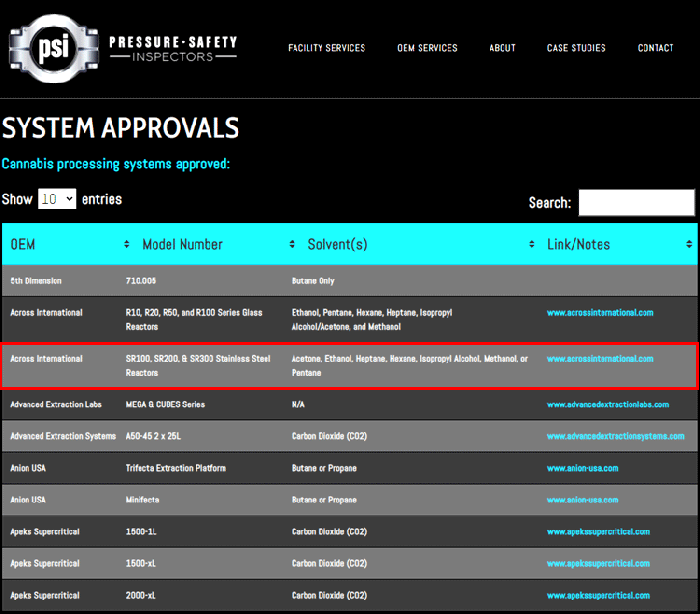

Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.

CAUTION!

Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
Always leave ample fluid space in heater reservoir to allow fluid heat expansion

Shell and Tube Heat Exchanger

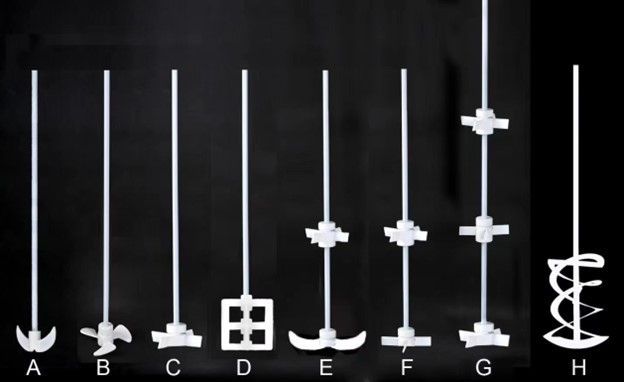

Standard Quick-change 316L Stainless Steel Propeller Agitator

Specifications

SPECIFICATIONS

Model	SR200
Electric stirring motor	220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated torque: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed
Pneumatic stirring motor	- Power: 1/4 HP - Rotation: 450 rpm max. (±8%) - Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) - Working temperature: -10C to +70C - For constant use: set rpm to 80% of maximum rpm - Motor lubricant Mobil Grease XHP 222, Lithium Complex, Blue, NLGI Grade 2 Check/replenish/replace every 500 hours - Air lubricant Type: JIS K2213-1 (ISOVG32) Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32 Speed: 2-3 drops per minute - For safety purpose, detach compressed air supply when not in use, left un-attended or at night - Do not run motor un-loaded - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. - Make sure exhaust port/hole is clear from any debris or blockage - Check every 2-3 days: Air Lubricant, Air Filter water drain

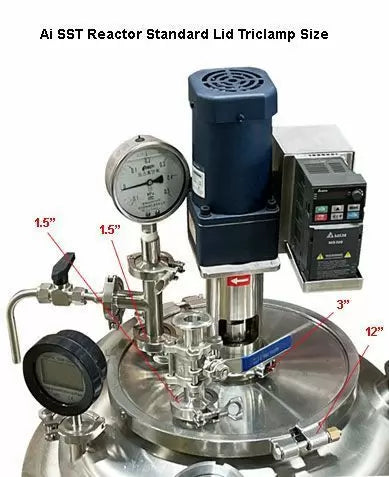

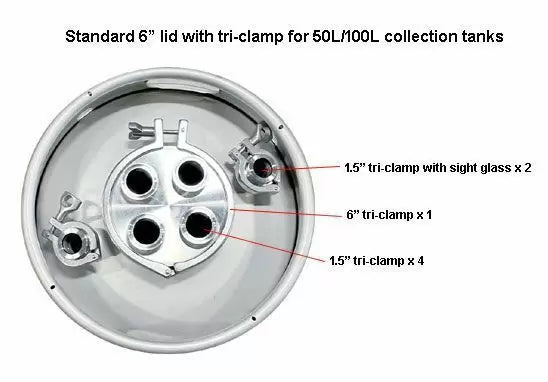

Port configuration	Lid: 12" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid port: 1" female NPT 50L/100L collection tank lid: 6" triclamp x 1, 1.5" triclamp x 4
Main vessel	Volume: 200L Minimum fill volume: 40L Material: 316L grade stainless steel Interior finish: ElectroPolished
Agitator	Structure: propeller, 3-blade, dual-layer (standard) Material: 316L grade stainless steel
Center fluid jacket	Volume: 35L Material: 304 grade stainless steel
Outer insulation jacket	Sealed Material: 304 grade stainless steel
Collection tank	Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly)
Material	All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis.
Main Condenser	Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2
Pressure	Ultimate vacuum level: 1 Torr
Temperature range	-55°C to +250°C (-67°F to +482°F)
Temperature sensor/display	Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
Sealing gasket	Food grade Viton
Main Mounting Frame	Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters
Drain port ground clearance	Drain port: 19.5 inches Drain valve: 14 inches
Shipping Weight (Unit)	570 Lbs / 890 Lbs
Shipping Dimensions	50" x 40" x 90" (WxDxH)
Assembled Dimensions	34" x 32" x 80" (WxDxH) without condenser and receiving flasks 44" x 32 " x 91" (WxDxH) with condenser and receiving flasks

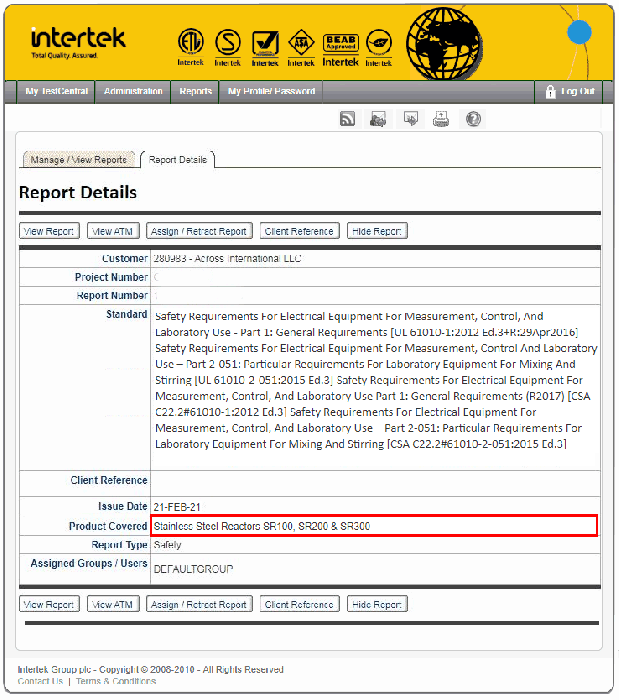

Compliance	ETL tested to UL and CSA standards C1D1 peer review by PSI (optional)

Standard Packages

Standard package

Part description	Quantity	Part image

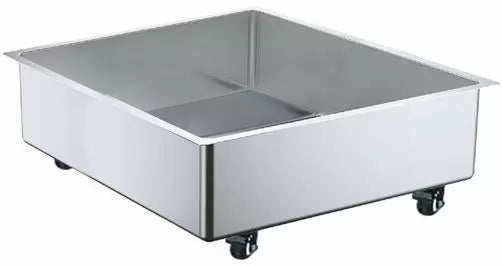

SR100/SR200 Base with vessel (splash bin shown in picture is optional at extra cost)	1

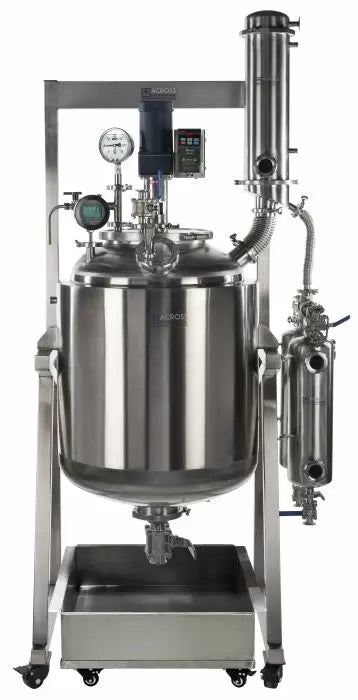

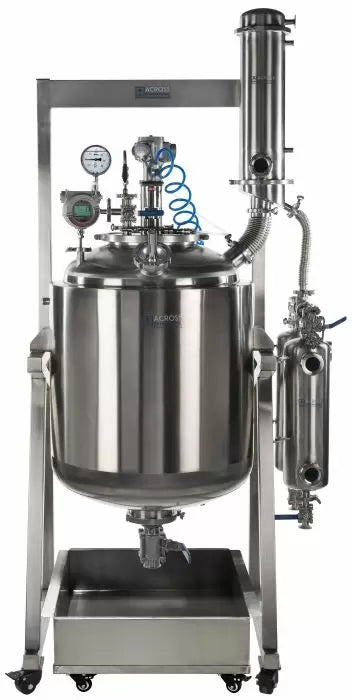

Electrical Motor with controller (pre-installed) or Pneumatic Motor	1
Compressed air regulator (color may vary) Comes only with pneumatic motor	1
Battery Operated Thermocouple (pre-installed)	1
Vacuum Gauge (pre-installed)	1
Condenser	1
Collection flask with two sight glasses (each sight glass comes with two gaskets)	2
1.5 “ tri clamp bellow (length )	1
3” tri clamp bellow (length )	1
1.5 “ 2-way tri-clamp ball valve (pre-installed)	5
1.5 “ 3-way tri-clamp ball valve (pre-installed)	1
2” tri-clamp ball valve	1
6” to 2” tri-clamp adapter (pre-installed)	1
90 degree 2” tri-clamp elbow (pre-installed)	1
90 degree 1.5” tri-clamp elbow(pre-installed)	2
1.5 “ tri clamp (pre-installed)	14
2 “ tri clamp (pre-installed)	1
6” tri clamp with bolts (pre-installed)	1
12” tri clamp with bolts (pre-installed)	1
1.5 “ tri clamp viton gasket (pre-installed)	14
2“ tri clamp viton gasket (pre-installed)	1
6” tri-clamp gasket (pre-installed)	1
12” tri-clamp gaskets (pre-installed)	1
User's manual	1
