Our EasyVac 9 CFM vacuum pumps are now 110V/220V 50/60Hz switchable and ETL and CE certified.

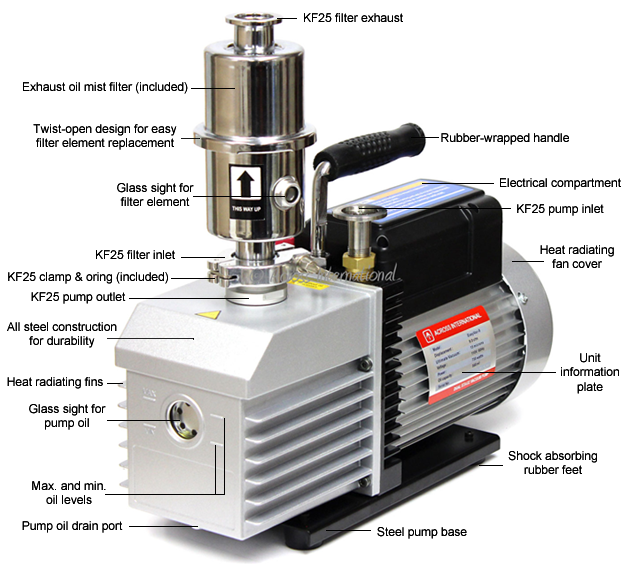

Ai EV9 are dual-stage high speed sliding-vane rotary compact vacuum pump with KF25 vacuum connector. Comes with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.
Free ($219 value) included.
Specifications
Specifications :
Electrical requirements
|
110V/220V 50/60Hz switchable, single phase 750 watts (1 HP) |

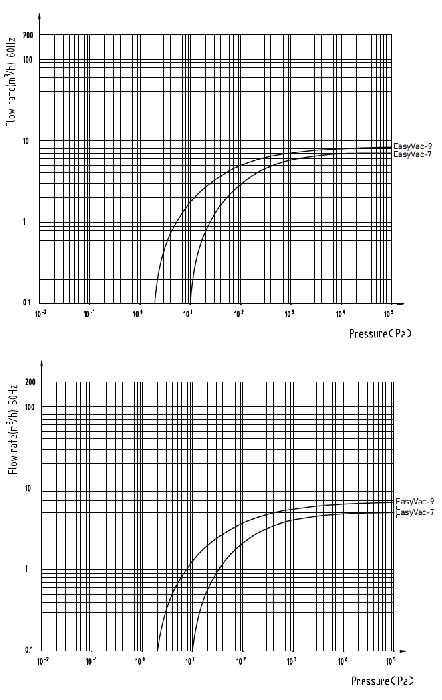

Pumping rate
|
9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz)
|
Vacuum level
|
15 micron/millitorr
|
Vacuum connection |
KF25/NW25 flange
|
Exhaust filter connection
|
KF25/NW25 flange
|
Oil volume |
560 ml / 0.6 quart
|
Motor rate |
1720 rpm |
Working temperature |
-5 to 60°C |
Pump dimensions (LxWxH)
|
16.5 x 6 x 11", height is 16" with exhaust filter
|
Shipping dimensions (LxWxH)
|
20 x 9 x 13"
|
Pump weight
|
37 Lb
|
Shipping weight |
41 Lb |
Recommended oil |
|
Compliance
|

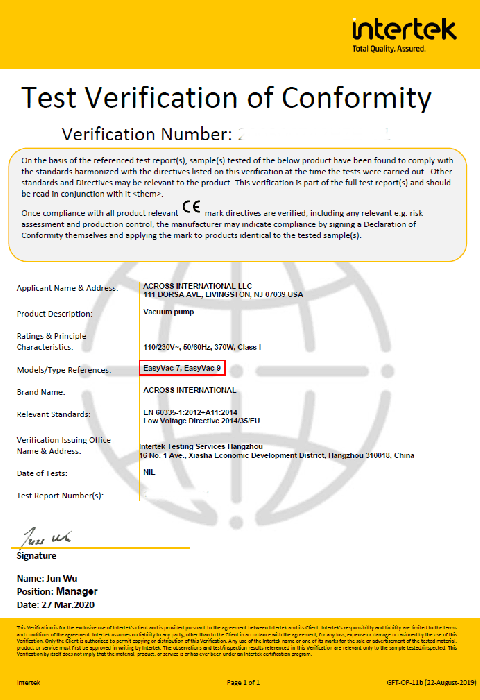

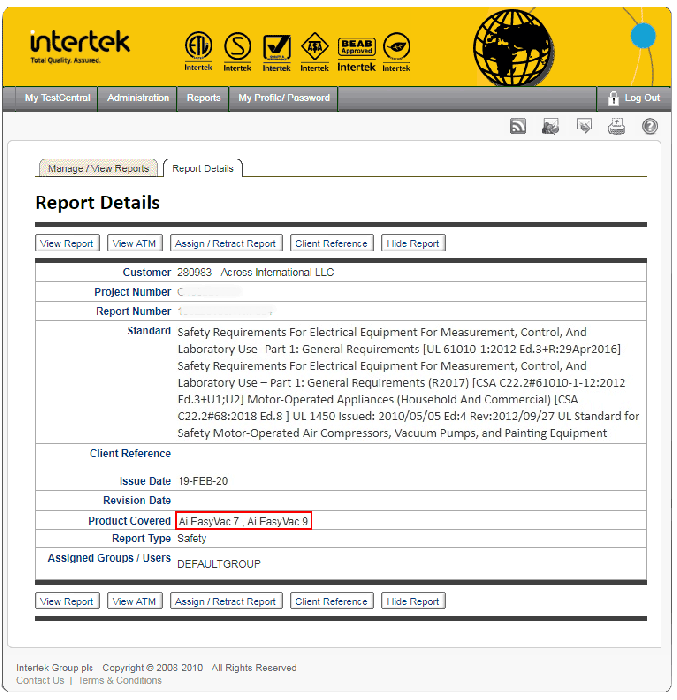

ETL tested to UL and CSA standards, CE
|
Warranty |
One year |
Download |
|
|
Standard Packages
Standard package
Part description
|
Quantity
|
Part image |
Ai EasyVac-9 vacuum pump with exhaust oil mist filter
|
1 set
|
|
Ai premium vacuum pump oil (300mL)
|
2 pcs |
|
KF25 stainless steel vacuum bellow (3 ft)
|
1 pc
|
|
|
2 pcs
|
|
|
2 pcs
|
|
Users manual |
1 pc
|
|
|
