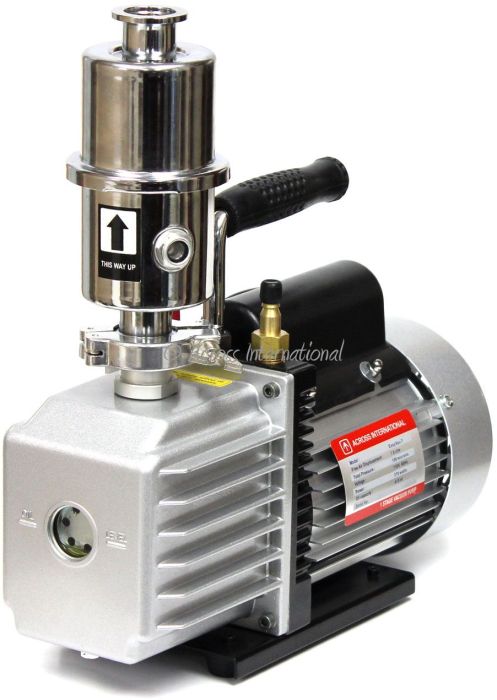

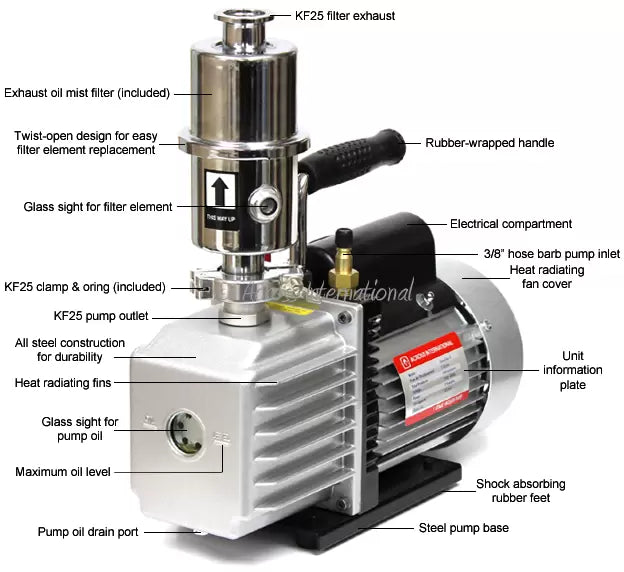

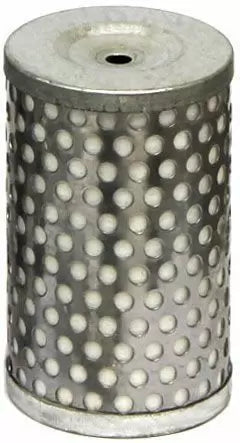

Ai EasyVac 7 single-stage sliding-vane rotary compact vacuum pump with 3/8" hose barb vacuum connector. Comes with a 3-foot food grade silicone hose and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.
Free three feet (a $19.99 value) included.
Ā
Ā
Ā

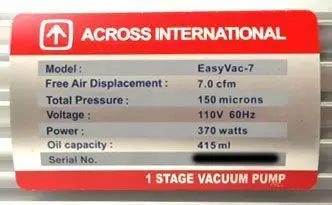

Specifications
|
Specifications Ā
Ā Electrical requirements
|
Ā 110V/220V 50/60Hz switchable, 1-Phase 1/2 HP 370 watts
|

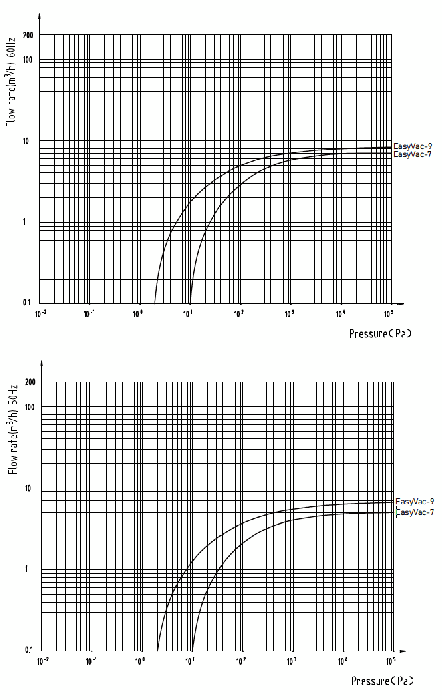

Ā Pumping rate
|
Ā 7 cfm (110V 60Hz), 6 cfm (220V 50/60Hz)
|
Ā Vacuum level
|
Ā 150 micron/millitorr
|
|
Ā Vacuum connection
|
Ā 3/8" hose barb
|
Ā Exhaust filter connection
|
Ā KF25/NW25 flange
|
Ā Oil volume
|
Ā 415 ml / 0.44 quart
|
| Ā Motor rate |
Ā 1720 rpm |
| Ā Working temperature |
Ā -5 to 60Ā°C |
Ā Pump dimensions (LxWxH)
|
Ā 13 x 5 x 10"
|
Ā Shipping dimensions (pump) (LxWxH)
|
Ā 18 x 7 x 11.5"
|
Ā Pump weight
|
Ā 22 Lb
|
Ā Shiping weight
|
Ā 23 Lb |
| Ā Recommended oil |
Ā |

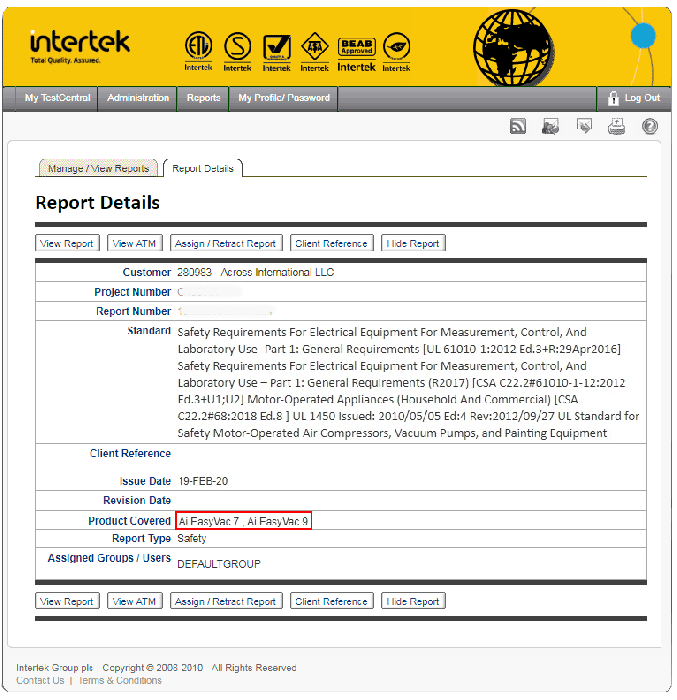

Ā Compliance
|

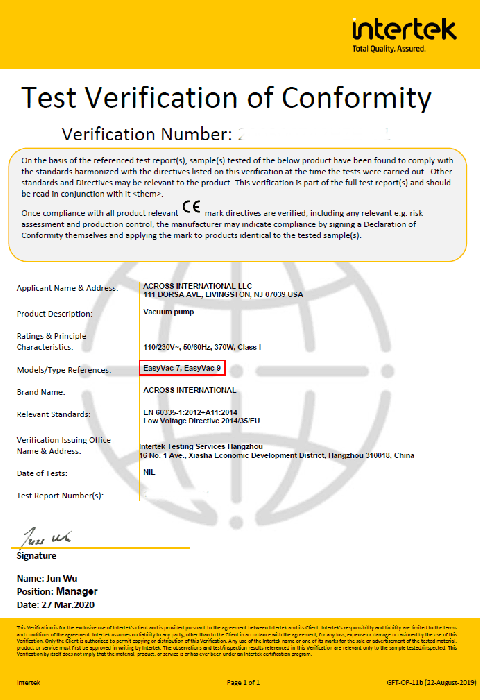

Ā ETL tested to UL and CSA standards, CE
|
| Ā Warranty |
Ā One year |
| Ā Download |
Ā |
|
Standard Packages
Standard packageĀ
Ā Part description
|
Ā Quantity
|
Part image |

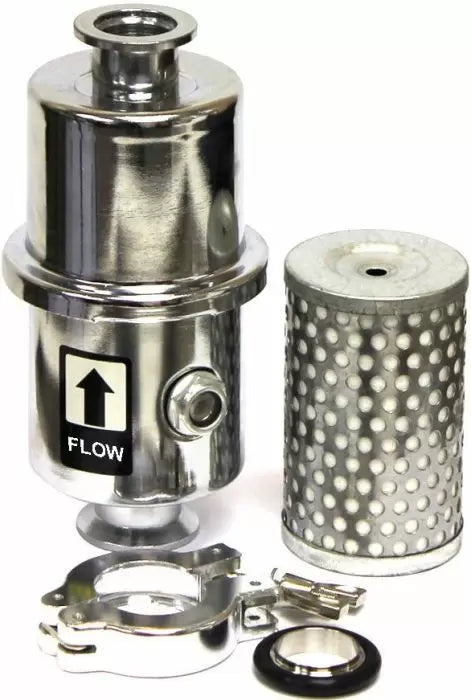

Ā Ai EasyVac-7 vacuum pump with exhaust oil mist filter
|
1 set
|
|

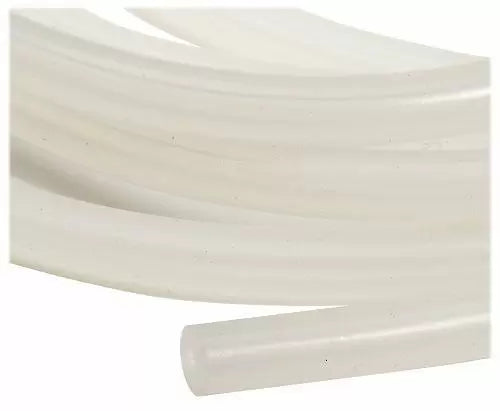

Ā 3/8" white premium food grade silicone vacuum hose (3 ft)
|
1 pc
|
|
Ā Ai premium vacuum pump oil (300mL)
|
2 pcs |
|
| Ā KF25 wing nut flange quick clamp |
1 pc |
|
| Ā KF25 flange centering ring |
1 pc |
|
| Ā 110V standard 3-prong US power cord (220V Cord available upon request) |
1 pc |
|
| Ā User's manual |
1 pc
|
|
|
