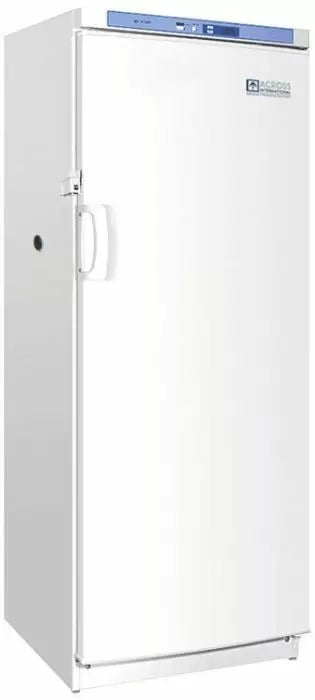

The new Ai EasyChill series -25C freezers is perfect for mid to large storage of sample and products. Our unique compressor design offers you speedy cooling and great temperature uniformity inside the chamber.
Features
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
- Lock-able door, high or low temperature alarms, power failure alarm
- UL certified
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
|
Specifications
| Model |
E09 |
Electrical requirements
|
115V (±10%) 60Hz 1-Phase, 2.6A
|
| Temperature range |
-10°C to -25°C |
| Controller |
Microprocessor, LED display |
| Compressor |
Power: 110V 60Hz 1-PHASE
Cooling type: direct cooling
Defrost mode: manual
Refrigerant: CFC-free R600a HC refrigerant
|
| Chamber |
Dimensions: 19 x 18 x 56" (WxDxH)
Material: coated steel
Volume: 9.3 Cu Ft
|
Door and gasket
|
Lockable door (lock NOT provided), dual sealing gaskets
|
| Working environment |
- Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C)
- Humidity: <85% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
|

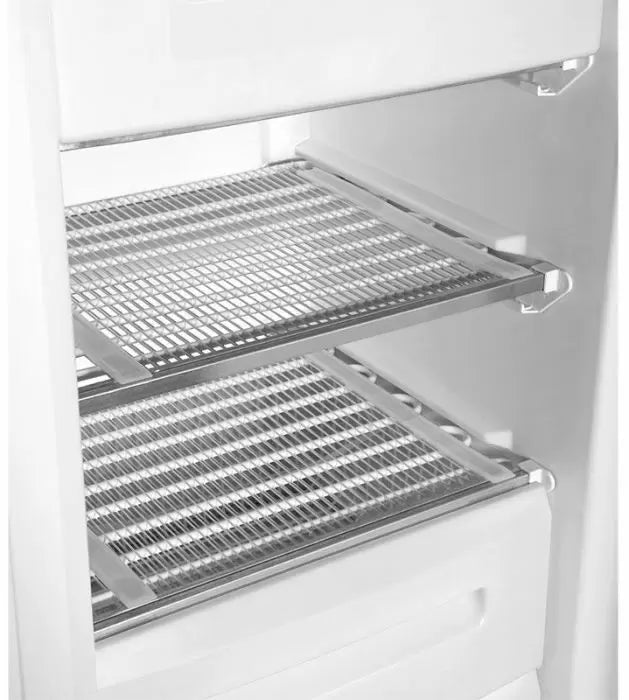

Storage bin
|
Seven |

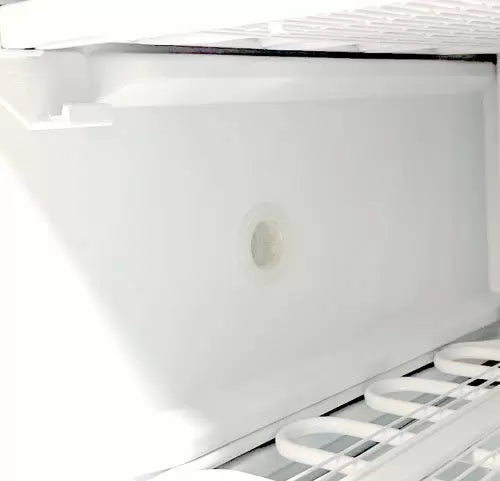

| Access port |
One, 1" diameter, left side of the freezer
|
Noise level
|
34 dBA |
Unit/shipping weight & dimensions
|
195 Lbs / 205 Lbs
27.5 x 28 x 65.5" / 30.5 x 30 x 74" (WxDxH)
|
| Safety |
Compressor over-temp protection
Compressor power surge delay protection
External door with lock
|
| Compliance |
UL 61010-1
CSA C22.2
|
| Warranty |
One year |
|
Standard Packages
Standard Package
Part description
|
Quantity
|
Part image |
Ai E09 -25°C freezer
|
1 pc
|
|
| Plastic storage bin |
7 pcs |
|
| Ice scraper |
1 pc |
|

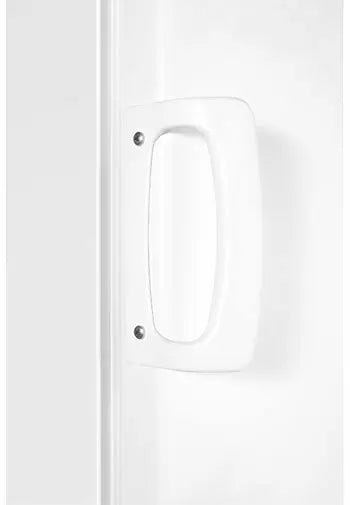

Door Handle (1 pc) & Lock Washers (2 pcs)
|
3 pcs |
|
| Users manual |
1 pc
|
|
|
