The new Ai EasyChill series -30C 29 Cu Ft freezers works on 110V to 230V power source, it is perfect for large storage of sample and products. Our unique compressor design offers you speedy cooling, great temperature uniformity inside the chamber, energy efficiency, and extremely quite operation.
The E29 is Energy Star and UL certified and is great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum.
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
|
Specifications
| Model |
E29 |
Electrical requirements
|
115V-230V (±10%) auto-detect, 50/60Hz 1-Phase 470W
|
| Performance |
Temperature range: -10°C to -30°C
Time from ambient to -30°C: 2.5 hours
Uniformity: ±3°C
Time from -30°C to 0°C with door closed (ambient 25°C): 6 hours
|
| Controller |
Microprocessor-controlled, displays chamber temperature, ambient temperature
and input voltage
|
| Compressor |
Cooling type: direct cooling
Defrost mode: manual
Refrigerant: R290
|
| Chamber |
Dimensions: 29.5 x 29.7 x 57.5" (WxDxH)
Material: coated steel
Volume: 28.9 Cu Ft
|
| Shelf |
Five |
Door and gasket
|
Inner door: three
Outer door: one, lockable door, dual sealing gaskets
|
| Working environment |
- Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C)
- Humidity: <85% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
|
| Battery backup system |
48 hours (for controller display and alarms only) |
| Access port |
Two
|
Noise level
|
37 dBA |
Unit/shipping weight & dimensions
|
463 Lbs / 625 Lbs
39 x 37.5 x 78" / 41 x 42 x 83" (WxDxH)
|
| Safety |
Compressor over-temp protection
Compressor power surge delay protection
External door with lock
Door open, power failure, sensor error, low battery, chamber high/low
temperature, and high ambient temperature alarms
|
| Compliance |
UL 61010-1
CSA C22.2
Energy Star
|
| Warranty |
One year |
|
Standard Packages
Standard Package
Part description
|
Quantity
|
Part image |

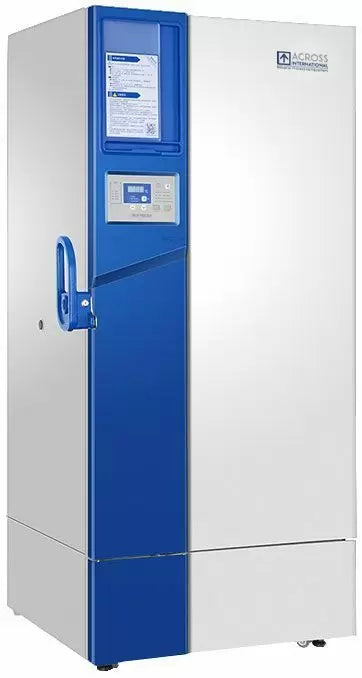

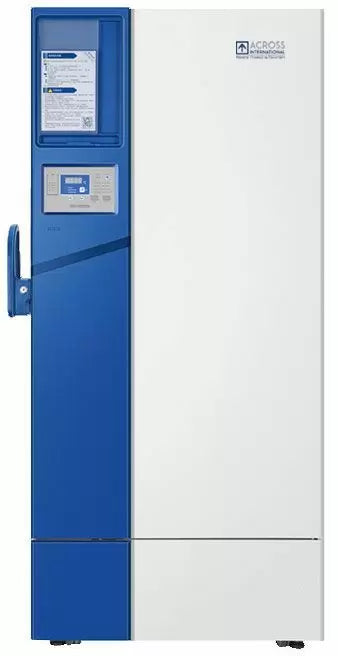

Ai E29 -30°C upright freezer
|
1 pc
|
|
| Shelf |
5 pcs |
|
| Ice scraper |
1 pc
|
|
| Users manual |
1 pc
|
|
|
