Model |
SR50 |
|
Electric stirring motor |
220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated torque: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed |
|
Pneumatic stirring motor |
Power: 1/4 HP Rotation: 450 rpm max. (±8%) Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) - Working temperature: -10C to +70C - For constant use: set rpm to 80% of maximum rpm - Motor lubricant Daphne Eponex EP-No. 1 Check/replenish/replace every 500 hours - Air lubricant Type: JIS K2213-1 (ISOVG32) Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32 Speed: 2-3 drops per minute - For safety purpose, detach compressed air supply when not in use, left un-attended or at night - Do not run motor un-loaded - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. - Make sure exhaust port/hole is clear from any debris or blockage - Check every 2-3 days: Air Lubricant, Air Filter water drain |
|
Port configuration |

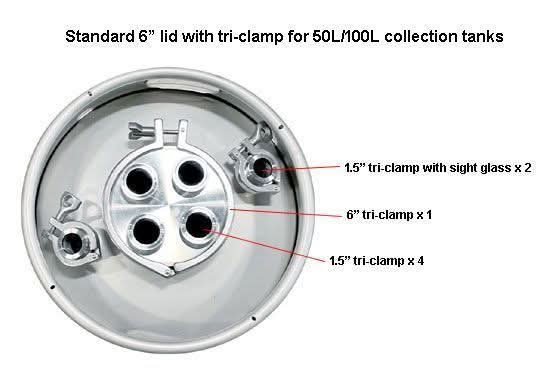

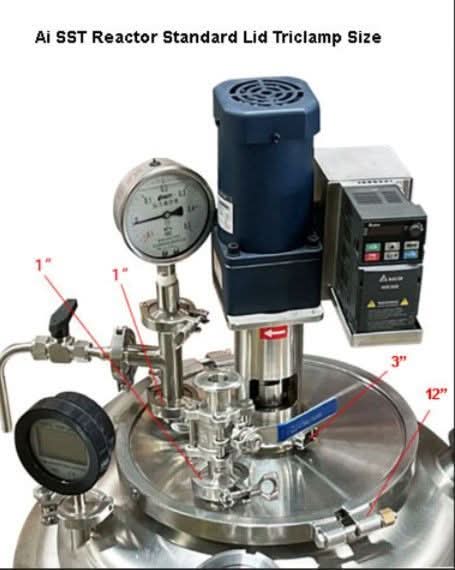

Vessel lid: 12" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid ports: 1" female NPT 50L/100L collection tanks * Lid: 6" tri-clamp, with 1.5" tri-clamp x 4 * Top of tank: 1.5" tri-clamp with sight glass x 2 * Drain port: 1.5" tri-clamp |
|
Main vessel |
Volume: 50L Minimum fill volume: 12.5L Material: 316L grade stainless steel Interior finish: ElectroPolished |
|
Agitator |

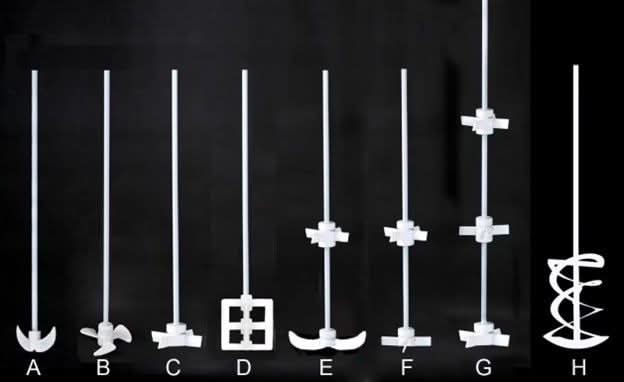

Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 20 inches |
|
Center fluid jacket |
Volume: 14L Material: 304 grade stainless steel |
|
Outer insulation jacket |
Insulation material: perlite, 2", sealed Housing material: 304 grade stainless steel |
|
Collection tank |

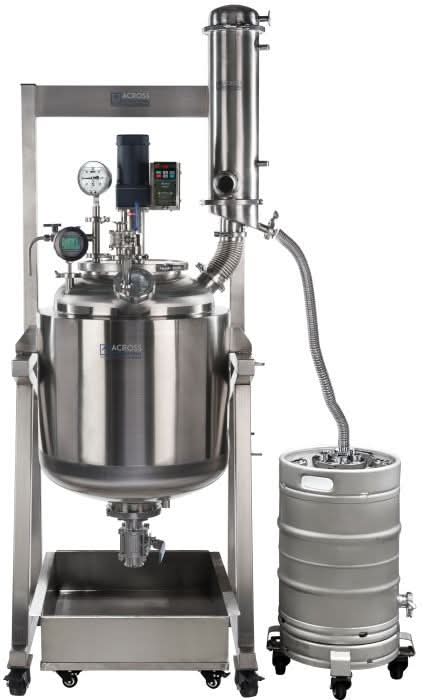

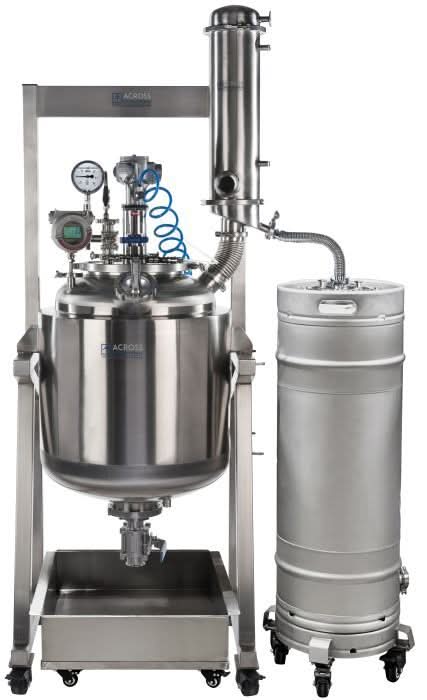

Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly) |
|
Material |
All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel |
|
Main Condenser |
Style: shell and tube heat exchanger Condensing area: 0.89 m2 |
|
Pressure |
Ultimate vacuum level: 1 Torr Maximum positive pressure (C1D1 peer reviewed to 15 psi)
Main vessel: atmosphere Fluid jacket: 14 psi |
|
Temperature range |
-55°C to +250°C (-67°F to +482°F) |
|
Temperature sensor/display |
Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp |
|
Sealing gasket |
Food grade Viton |
|
Main Mounting Frame |
Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters |
|
Drain port ground clearance |
Drain port: 19.5 inches Drain valve: 14 inches |
|
Unit/shipping weight |
410 lbs (electric) 385 lbs( air)/ 676 (electric) | 651( Air) |
|
Unit/shipping dimensions |
Full assembly – 38”x 29” x 76” (WxDxH) Shipping Dimensions – 46 x 35 x 77” (electric) | 46 x 35 x 77” (WxDxH) |
|
Compliance |
n/a |
|
Part description |
Quantity |

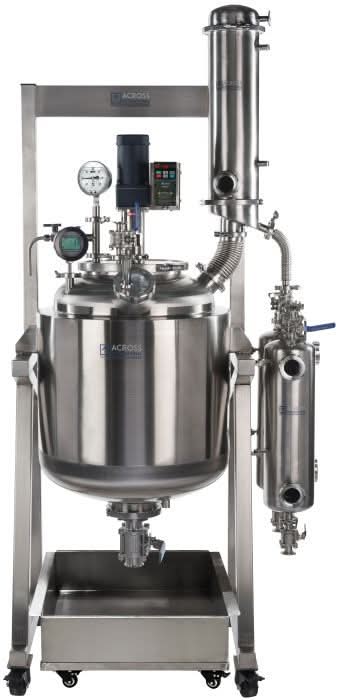

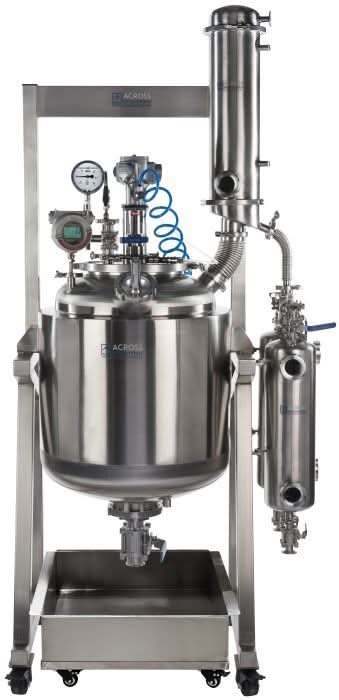

| SR50 Base with vessel (splash bin shown in picture is optional at extra cost) |
1 |
| Electrical Motor with controller (pre-installed) or Pneumatic Motor |
1 |
| Compressed air regulator (color may vary) Comes only with pneumatic motor
|
1 |
| Battery Operated Thermocouple (pre-installed) | 1 |
| Vacuum Gauge (pre-installed) | 1 |
| Condenser | 1 |
| Collection flask with two sight glasses (each sight glass comes with two gaskets) | 2 |
| 1.5 “ tri clamp bellow (length ) | 1 |
| 3” tri clamp bellow (length ) | 1 |
| 1.5 “ 2-way tri-clamp ball valve (pre-installed) | 5 |
| 1.5 “ 3-way tri-clamp ball valve (pre-installed) |
1 |
| 2” tri-clamp ball valve | 1 |
| 6” to 2” tri-clamp adapter (pre-installed) | 1 |
| 90 degree 2” tri-clamp elbow (pre-installed) | 1 |
| 90 degree 1.5” tri-clamp elbow(pre-installed) | 2 |
| 1.5 “ tri clamp (pre-installed) | 14 |
| 2 “ tri clamp (pre-installed) | 1 |
| 6” tri clamp with bolts (pre-installed) | 1 |
| 12” tri clamp with bolts (pre-installed) | 1 |
| 1.5 “ tri clamp viton gasket (pre-installed) | 14 |
| 2“ tri clamp viton gasket (pre-installed) | 1 |
| 6” tri-clamp gasket (pre-installed) | 1 |
| 12” tri-clamp gaskets (pre-installed) | 1 |
| User's manual | 1 |
