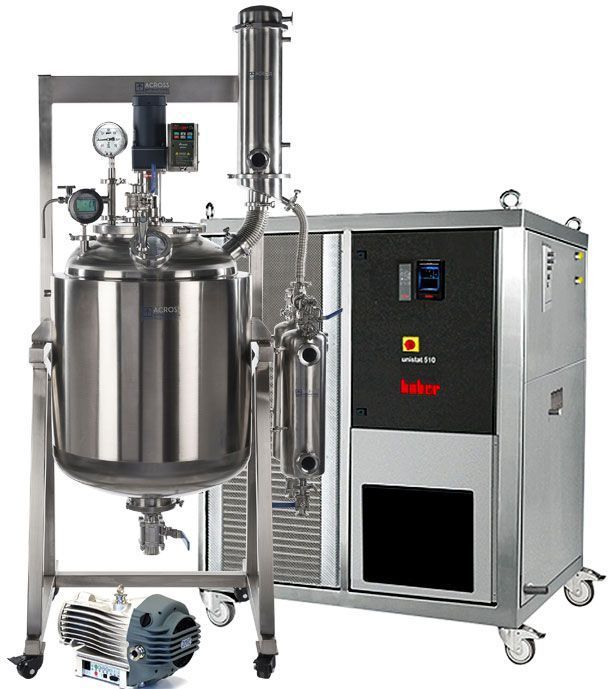

Ai Dual-Jacketed 200L 316L SST Reactor Crystallization Package

Save $5,004.88 USD
Power Lab Supply 2SKU: SR200_20iC_510

Price:
Sale price$120,117.12 USD Regular price$125,122.00 USD
Description

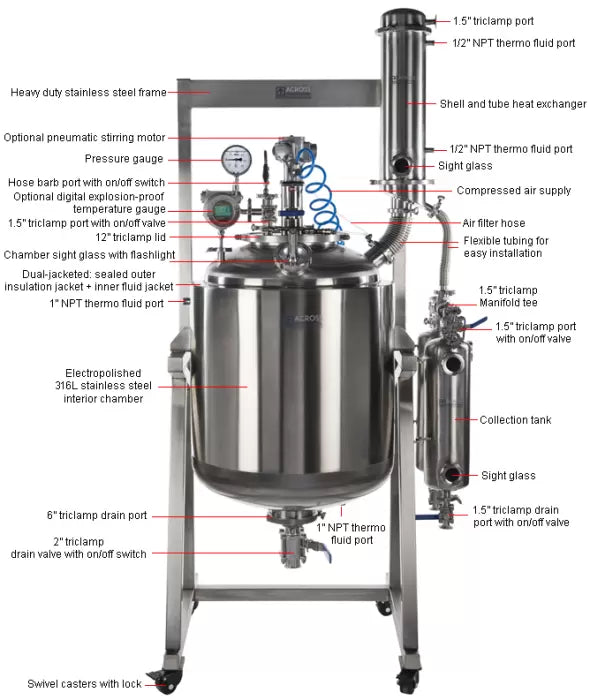

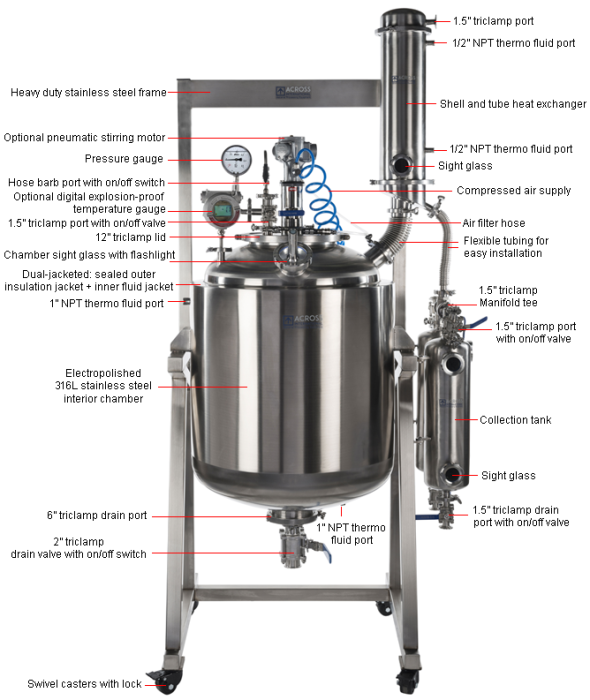

Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results
  • ElectroPolished internal chamber
    • Greatly reduces surface roughness by leveling micro-peaks and valleys
    • Improved vacuum pressures, out-gassing rates, and pumping speed
    • Prolong equipment lifespan by reducing friction and wear
    • Much better sterilized and semiconductor grade surface
    • Essential for the food and pharmaceutical industries
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12" bottom 6") allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Positive/negative pressure gauge
  • Matte finish stainless steel

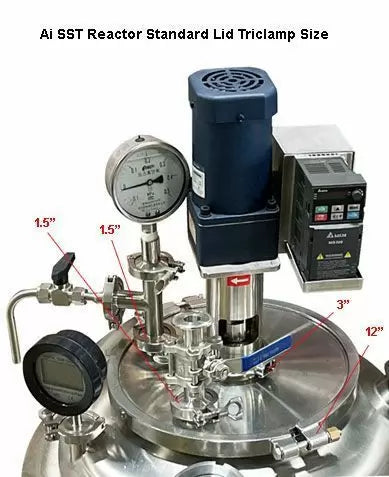

  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage

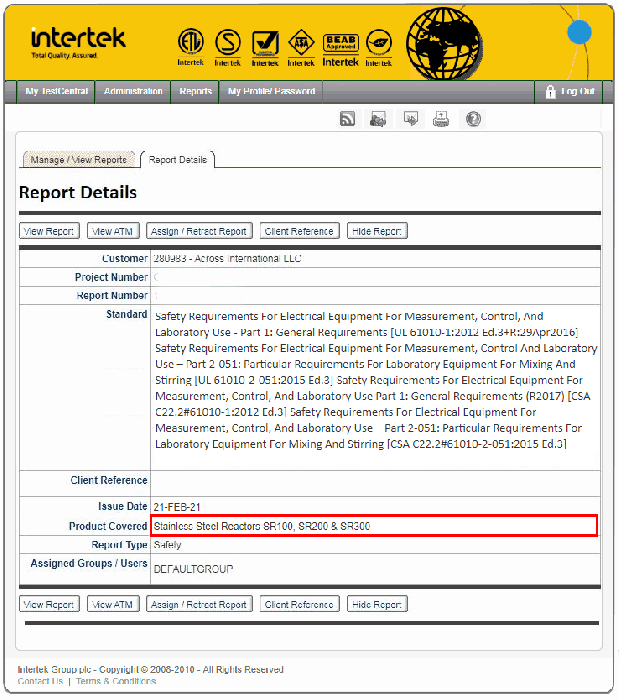

  • Electric motor and controller model is ETL certified to UL and CSA standards

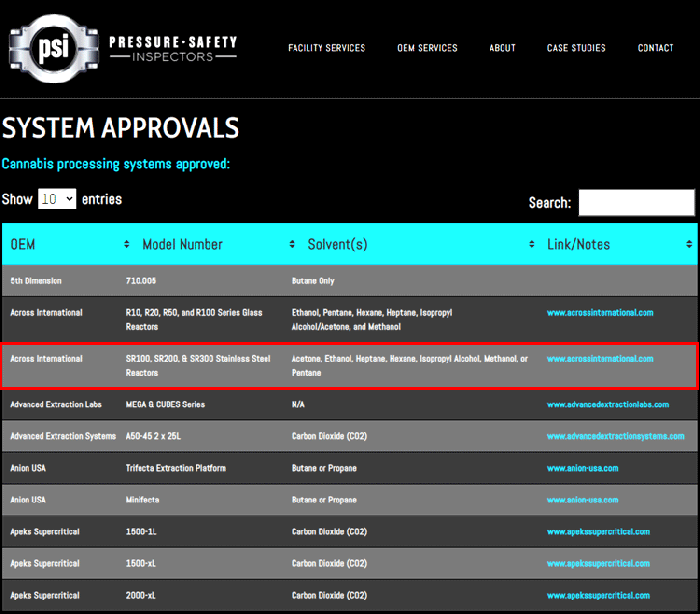

  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.



CAUTION!

  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits

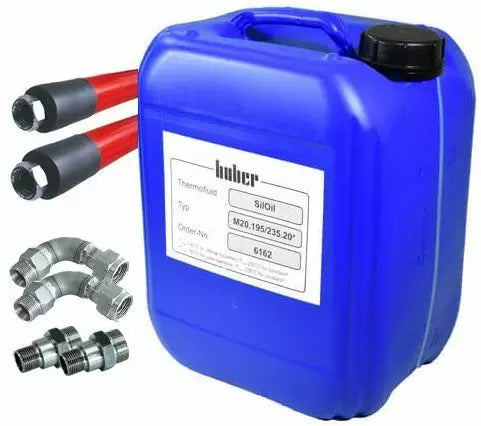

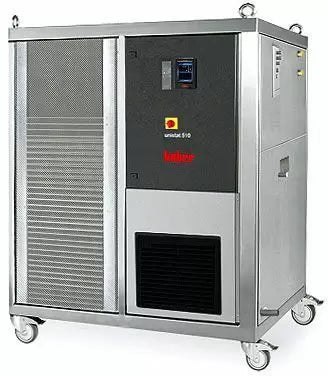

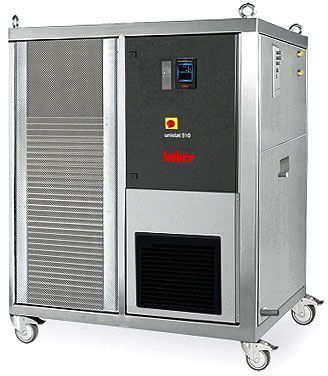

Huber Unistat 510 adapters, tubing and fluid for SR200 stainless steel reactors for Crystallization

  • P/N 6165 x 1 M60 (-60 to 115) 5L - fluid
  • P/N 6166 x 4 M60 (-60 to 115) 10L - fluid
  • P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
  • P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
  • P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)
