Name: Ai Dual-Jacketed 100L 316L SST Reactor Crystallization Package
Brand: Power Lab Supply 2
SKU: SR100_UDP6_510
Price: 121468.8 USD
Availability: InStock

Ai Dual-Jacketed 100L 316L SST Reactor Crystallization Package

Roll over image to zoom in Click on image to zoom

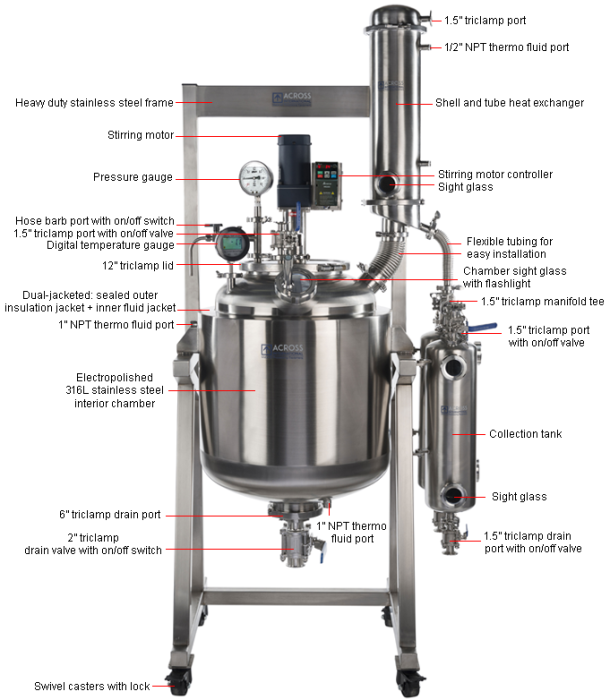

Ai 316L Grade Stainless Steel Reactor Features

Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST

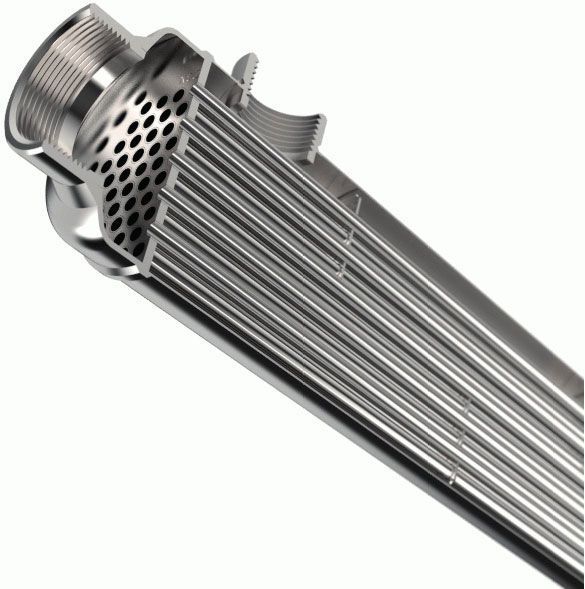

Shell and tube heat exchanger with 70 tubes for the best condensing results
ElectroPolished internal chamber

Greatly reduces surface roughness by leveling micro-peaks and valleys
Improved vacuum pressures, out-gassing rates, and pumping speed
Prolong equipment lifespan by reducing friction and wear
Much better sterilized and semiconductor grade surface
Essential for the food and pharmaceutical industries

Detachable condenser and collection tanks
Dual collection tanks with big sight glass allows you to drain without breaking vacuum
High drain port clearance for easy draining or added filtration
Large ports (top 12" bottom 6") allows easy chamber cleaning
Top placed vacuum port on condenser provides better flow and condensing results
No messy cable, with space saving integrated stirring motor controller
Heavy-duty stainless-steel frame with swivel casters
Built-in flashlight gives you a clear view inside the chamber
Positive/negative pressure gauge
Matte finish stainless steel
Customizable lid for various application
Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
Choice of bolted or pin clamp for various pressure applications
Flexible bellow condenser connection reduces shipping damage

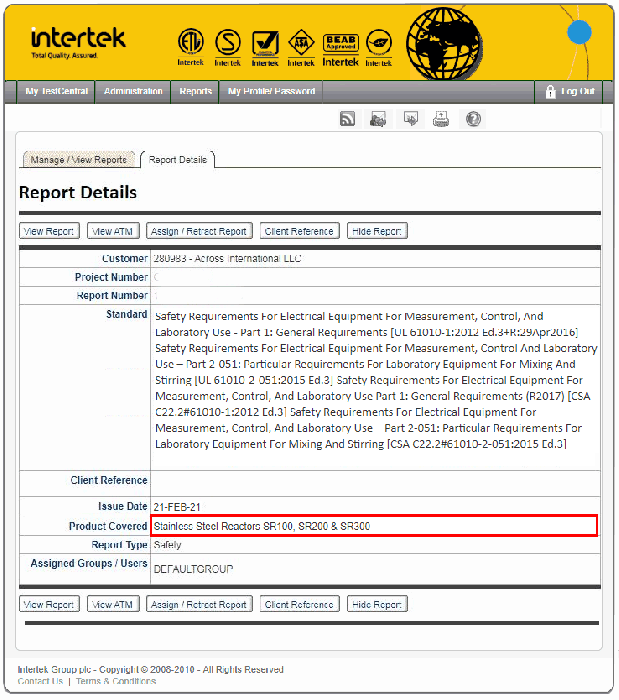

Electric motor and controller model is ETL certified to UL and CSA standards

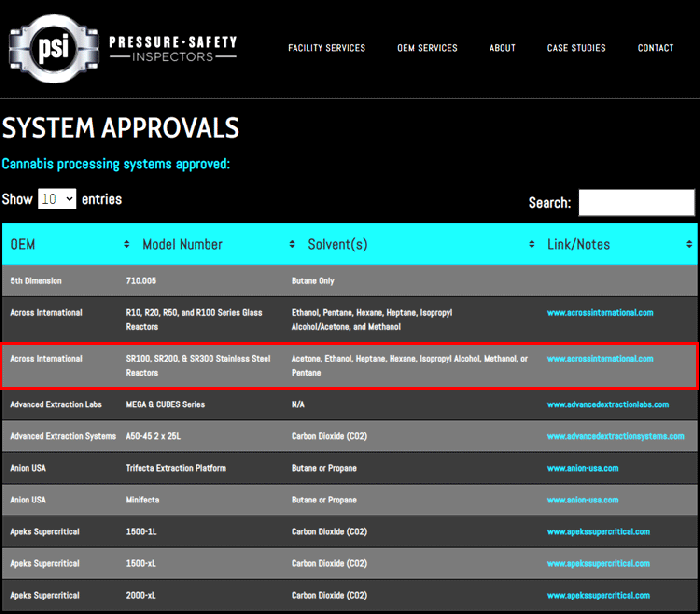

Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.

CAUTION!

Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
Always leave ample fluid space in heater reservoir to allow fluid heat expansion
Always keep system vacuum passage or drain valve open when heating up circulation jackets
Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits

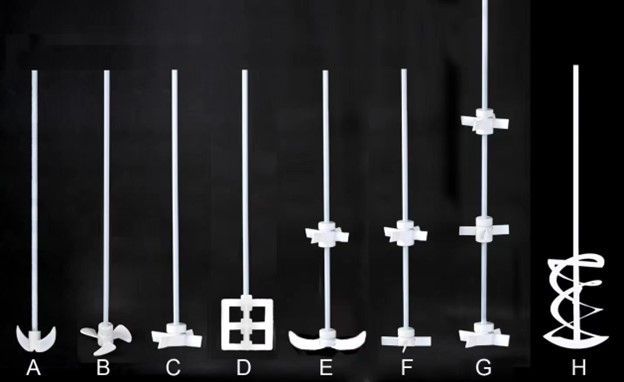

Impellar/Stirrer Options

	Name
Stirrer Type A	Anchor
Stirrer Type B	Piched Marine
Stirrer Type C	Pitched Blade
Stirrer Type D	Square Blade
Stirrer Type E	Anchor with Upper Pitched Blade
Stirrer Type F	Dual Pitched Blade
Stirrer Type G	Triple Pitched Blade
Stirrer Type H	Double Helix

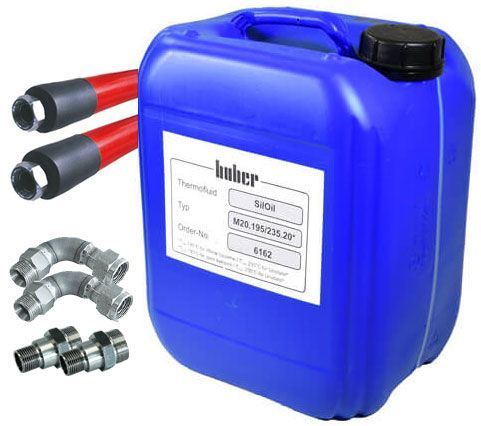

Huber Unistat 510 adapters, tubing and fluid for SR100 stainless steel reactors for Crystallization

P/N 6165 x 1 M60 (-60 to 115) 5L - fluid
P/N 6166 x 3 M60 (-60 to 115) 10L - fluid
P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)

SPECIFICATIONS

Model	SR100
Electric stirring motor	220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated toruqe: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed
Pneumatic stirring motor	- Power: 1/4 HP - Rotation: 450 rpm max. (±8%) - Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) - Working temperature: -10C to +70C - For constant use: set rpm to 80% of maximum rpm - Motor lubricant Daphne Eponex EP-No. 1 Check/replenish/replace every 500 hours - Air lubricant Type: JIS K2213-1 (ISOVG32) Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32 Speed: 2-3 drops per minute - For safety purpose, detach compressed air supply when not in use, left un-attended or at night - Do not run motor un-loaded - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. - Make sure exhaust port/hole is clear from any debris or blockage - Check every 2-3 days: Air Lubricant, Air Filter water drain

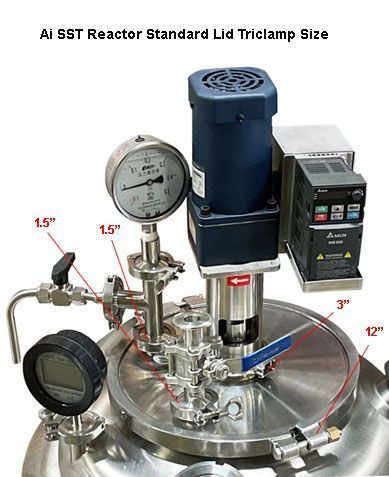

Port configuration	Lid: 6" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid ports: 1" female NPT
Main vessel	Volume: 100L Material: 316L grade stainless steel Interior finish: ElectroPolished
Agitator	Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 20 inches
Center fluid jacket	Volume: 22L Material: 304 grade stainless steel
Outer insulation jacket	Sealed Material: 304 grade stainless steel
Collection tank	10L x 2
Material	All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel
Main Condenser	Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2
Pressure	Ultimate vacuum level: 1 Torr
Temperature range	-55°C to +250°C (-67°F to +482°F)
Temperature sensor/display	Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
Sealing gasket	Food grade Viton
Main Mounting Frame	Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters
Drain port ground clearance	Drain port: 19.5 inches Drain valve: 14 inches
Shipping Weight (Unit)	255 Lbs / 350 Lbs
Shipping Dimensions	38 x 32 x 82" (WxDxH)
Compliance	ETL tested to UL and CSA standards C1D1 peer review by PSI (optional)

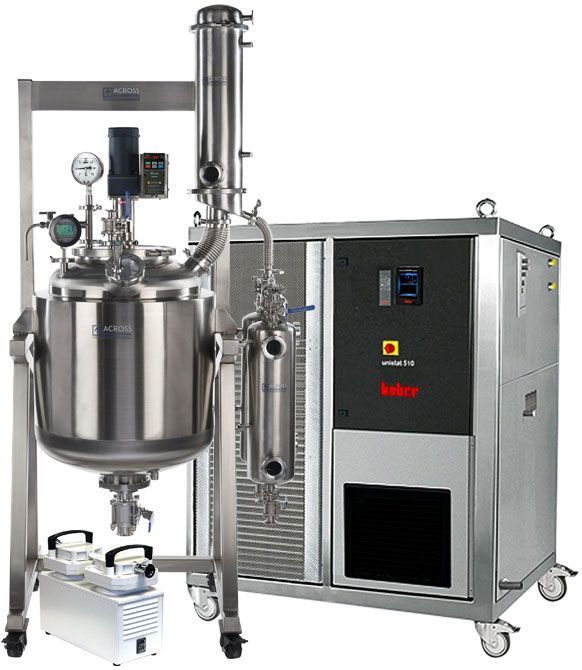

Standard package

SR100 Air or Electric Motor and Accessories

Part description	Quantity	Part image
SR100 stainless steel reactor with electric motor	1 set
2M KF25 flexible vacuum bellow	1 pc
KF25 quick clamp and centering ring	2 sets
KF25 to 1.5" Triclamp Adapter	1 pc
1.5" Tri-Clamp Gasket (Viton)	1 pc
1.5" Tri-Clamp Single Pin Clamp	1 pc
Users manual	1 pc

Vacuum Pump with Accessories

Part description

Quantity

Part image

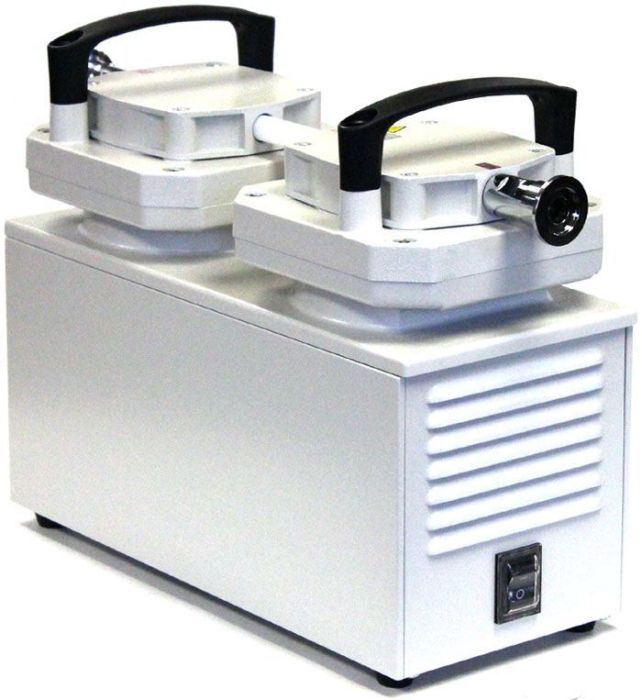

ULVAC 220V UDP-6 6 cfm 6 torr 2-head diaphragm pump and vacuum hose

KF25 Accessories Package
KF25-FC x 1
KF25-CR x 1
FVB-25-10 x 1

1 set

Chiller with Accessories

Part description	Quantity	Part image

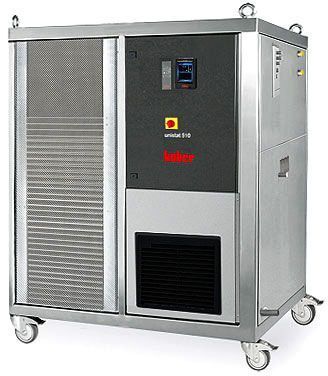

HUBER Unistat 510 -50°C To 250°C With Pilot ONE	1 pc
Huber expansion tank, adapters, tubing and fluid P/N 6165 x 1 M60 (-60 to 115) 5L - fluid P/N 6166 x 3 M60 (-60 to 115) 10L - fluid P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female) P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f) P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)	1 set
