Description
Another innovation from Across International and DigiVac that has just won the , Silver, for Excellence in Instrumentation, the Concerto 4-channcel rotary evaporator controller. Control Your evaporation process like a symphony! Control up to 4 rotary evaporators or chambers with a single vacuum pump. Fine tune your evaporation process with Concerto!
Â
Â
Â
Â
SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS
- Up to 4 chamber control with only 1 high-end vacuum pump for rotary evaporators up to 100 Liters and Falling Film Systems
- Fine control of target vapor pressure for more precise compound separation through distillation
- Enables using reliable and long lasting rotary vane oil pumps & dry scroll pumps in applications where diaphragm pumps were previously required
Keeps vacuum pumps near their base pressure resulting in greater longevity
PRECISION CONTROL & INTUITIVE DESIGN
- Ease of use through precise automated control with programmable recipes and graphing of vacuum levels
- Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
- The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing

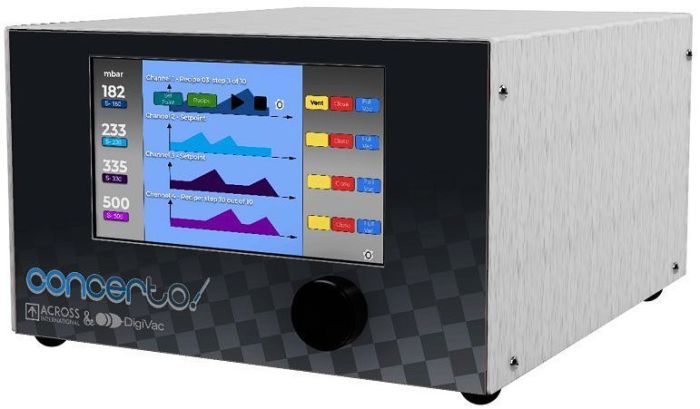

- Numerical readings right on the LCD screen and one touch start, stop and release buttons
FEATURES
- Silver Innovation Award Winner for Instrumentation at PittCon 2020!
- GO BIG OR GO HOME & MAXIMIZE THROUGHPUT: Largest flow paths available to insure maximum flow for faster evaporation
- The rotary evaporator controller is particularly useful when you are looking to maintain pressure at a certain level as needed for botanical processing and rotary evaporation. Mounting is bench top.
- Simplify your lab & control more with less
- Up to 4 chamber control with only 1 high-end vacuum pump for rotary evaporators up to 100 Liters and Falling Film Systems
- Fine control of target vapor pressure for more precise compound separation through distillation
- Enables using reliable and long lasting rotary vane oil pumps and dry scroll pumps in applications where diaphragm
- pumps were previously required
- Keeps vacuum pumps near their base pressure resulting in greater longevity
- Go big or go home and maximize throughput
- Largest flow paths available to insure maximum flow for faster evaporation
- Precision control and intuitive design
- Ease of use through precise automated control with programmable recipes and graphing of vacuum levels
- Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
- The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing
- Numerical readings right on the LCD screen and one touch start, stop and release buttons
- Made in the USA
Â
Â
Â
Â
| Â Model | Â Concerto |
| Â Power | Â Auto sensing 110V/220V 50/60Hz |
|  Performance |  Range: 2 to 760 Torr  Accuracy: ±5% of reading  Integral sensor accuracy: ±2 Torr  Integral sensor range: 0.5 to 775 Torr  Display units: Torr, mTorr, mBar, kPa  Time to convergence within 5% after disturbance: <30 seconds |

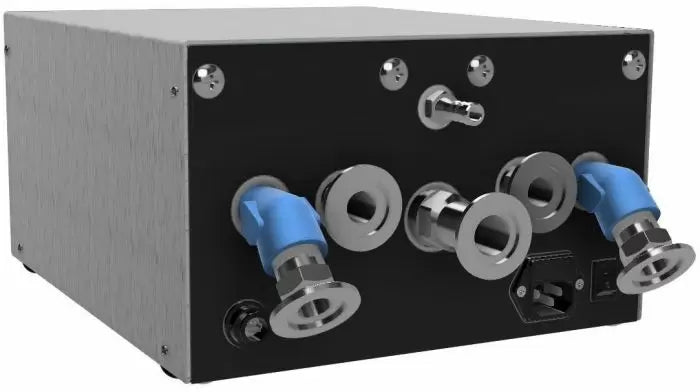

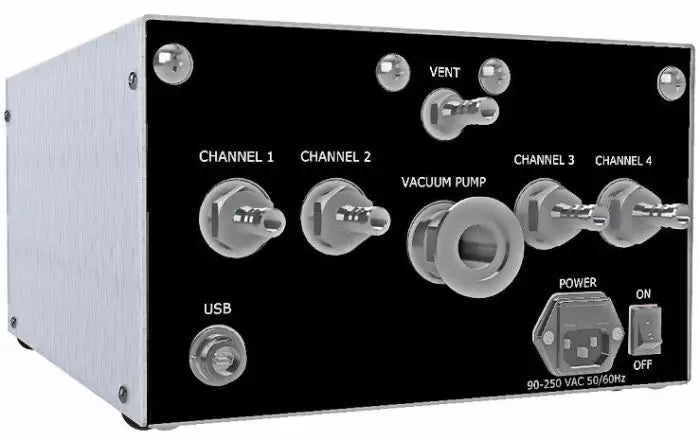

|  Construction |  Inlet: 3/8" hose barb x 4 or KF25 x 4  outlet: KF25 x 1  Vacuum path orifice: minimum 12.5 mm  Minimum bleed valve orifice: 10 mm  Valves: wetted materials aluminum and Viton  Integral sensor: isolated Piezo sensor | SEN-775i  Integral sensor wetted materials: 316 stainless steel, isolated  Set-points: quickly dial in set-point with control knob  Vacuum fittings: staggered fittings on rear to enable either                         KF25 vacuum fittings or barb for rotovaps |
| Â Dual vacuum control |
 By both proportional throttle and bleed (vent to atmosphere) |
| Â 4 channels |
 Individually control vacuum and bleed valves for each of 4 channel  with dedicated isolated sensors |
| Â Output |
 Ability to be controlled remotely via USB for integration into larger systems |

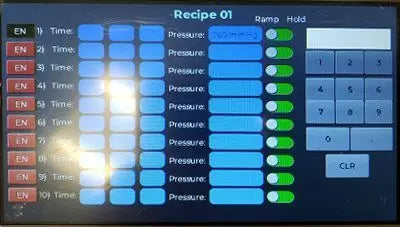

| Â Recipes |
 Program ramps and holds with different durations and vacuum levels |
| Â Unit weight |
 25 Lb |
|  Dimensions |
 Unit: 10.25 x 12 x 5.25", shipping: 16 x 16 x 12 (WxDxH) |

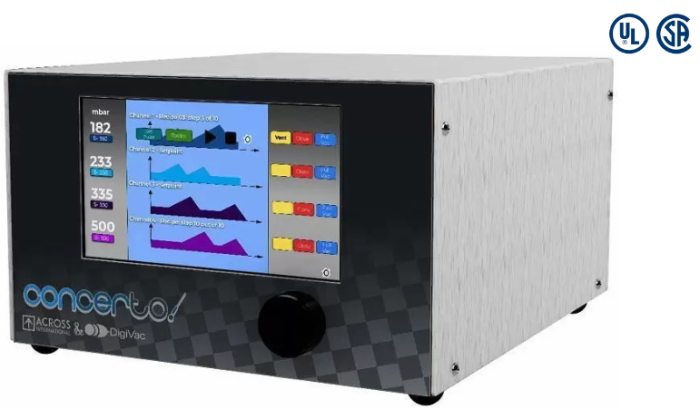

| Â Compliance | Â RoHS & built to UL/CSA/CE standards (NOT certified yet) |
| Â Warranty | Â One year |
|
 Part description |
 Quantity |
Part image |
| Concerto 4-Channel Vacuum Controller | 1 pc | |
| Power Cord | 1 pc | |

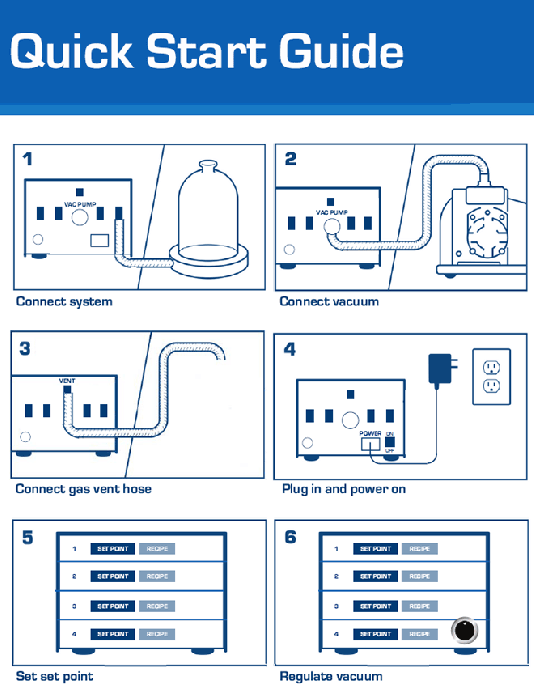

| Quick Start Guide | 1 pc | |
| Set of 4 Number Stickers | 4 pc | |
| User Manual | 1 pc |
