Across International Ai DigiM 5L 300°C 2000 RPM PID Controlled Digital Heating Mantle

Power Lab Supply 2SKU: DigiM501
No reviews

Certification: Please Select
Power option: 110V 60Hz
Sale price$970.20 USD

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.







 Electrical requirements
 110V 60Hz 1-Phase, 1100 watts, 12A
 220V 50/60Hz 1-Phase, 1100 watts, 6A
 Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 2000 rpm. (1,500 rpm for UL model)
 Motor power: 40 watts
 Motor type: brushless DC motor
 Controller  PID control with digital temperature and rotation speed display
 External thermocouple
 Type: PT100
 Cable length: 43 inches
 Stainless steel probe length: 15 inches
 Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 5 liters
 Top opening diameter:
9 inches
 Depth: 5.5 inches
 Dimensions (WxDxH)  Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 15 inches
 Weight  Unit: 22 lbs, shipping: 32 lbs
 Safety  Thermocouple failure protection

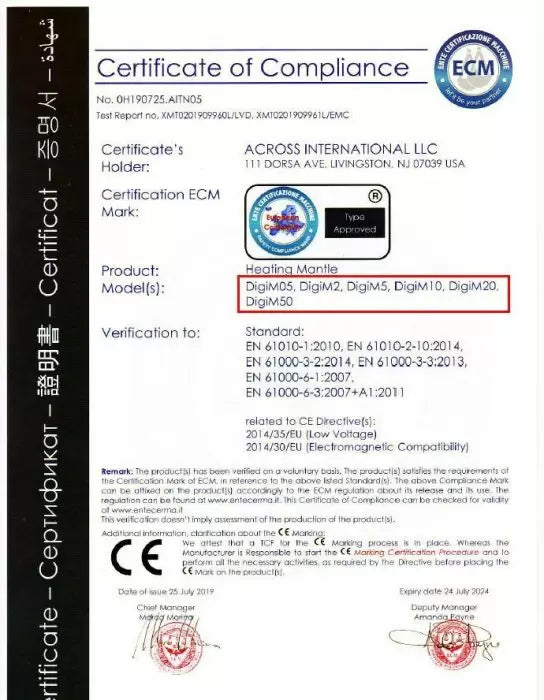

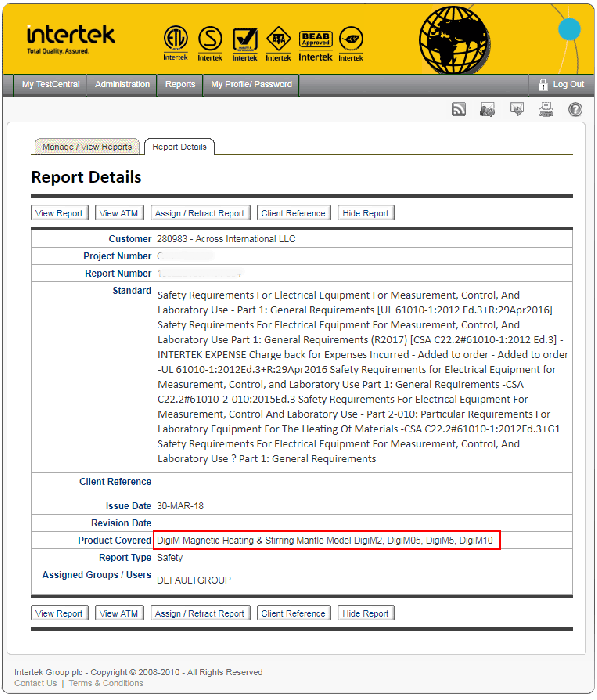

 Certification  ETL tested to UL and CSA standards (optional), CE (standard)
 Warranty  One year
Standard Packages
Standard package


 Part description


Part image

 Ai DigiM 5L digital heating & stirring mantle
1 set
External temperature probe
DigiM05, DigiM2, DigiM5: Cable Length: 40”,  Probe Length: 9” DigiM10, DigiM20: Cable  Length: 43”, Probe Length: 15”
1 pc
 Internal temperature plug 1 pc
Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs 1 or 2 pcs
Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs 1 or 2 pcs
 PTFE coated stir bar
2 pcs
 PTFE coated magnetic stir bar remover 1 pc
4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10, and DigiM20: 2 pcs 1 or 2 pcs
 User's manual
1 pc
