2019 Model (194133)

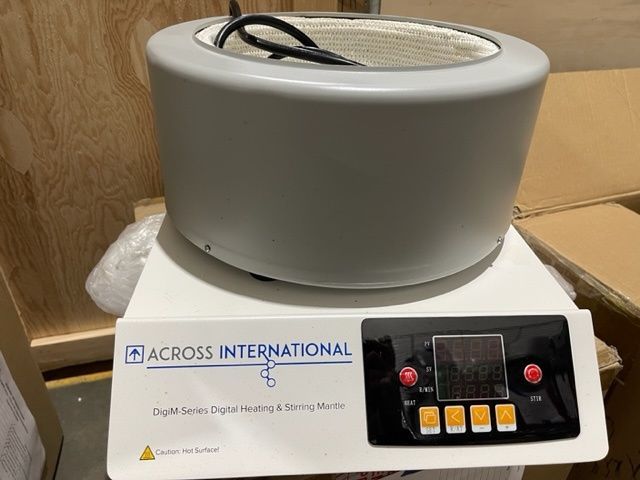

New, minor damage on lower left front corner, unit is fully inspected
3 Month Warranty
Across International heating and stirring mantles to come standard with a digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM5 mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Specifications
|
Specifications
Model
|
DigiM5
|
Electrical requirements
|
220V 60Hz 1-Phase, 1100 watts, 12A |
Heating
|
Ambient to 300°C
|
| Stirring |
Min. speed: 110 rpm, max. speed: 1200 rpm
Motor power: 40 watts
Motor type: brushless DC motor
|
| Controller |

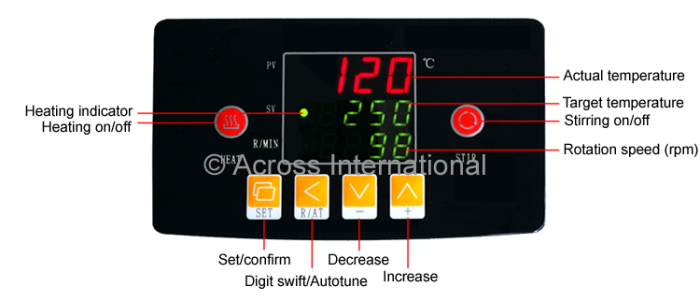

PID control with digital temperature and rotation speed display |
External thermocouple
|
Type: PT100
Cable length: 43 inches
Stainless steel probe length: 15 inches
Stainless steel probe diameter: 5 mm
|
| Flask holder |
Maximum flask capacity: 5 liters
Top opening diameter: 9 inches
Depth: 5.5 inches
|
| Dimensions (WxDxH) |
Unit: 13.5 x 17 x 10 inches, shipping: 20 x 16 x 15 inches
|
| Weight |
Unit: 22 lbs, shipping: 32 lbs |
| Safety |
Thermocouple failure protection |

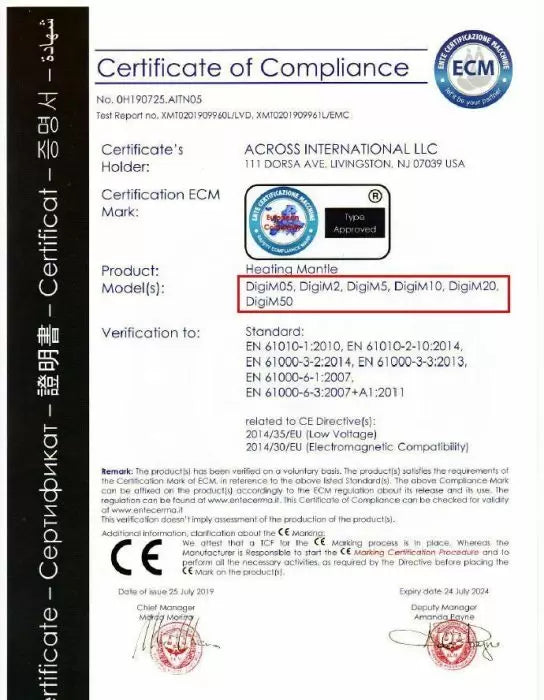

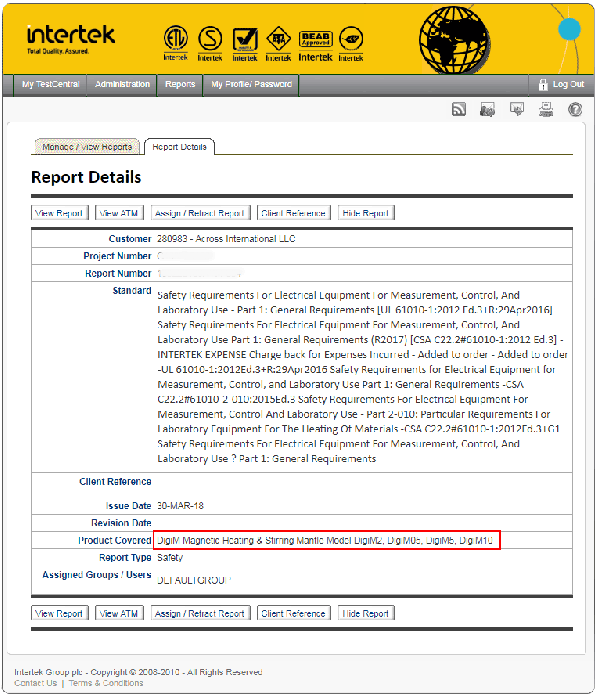

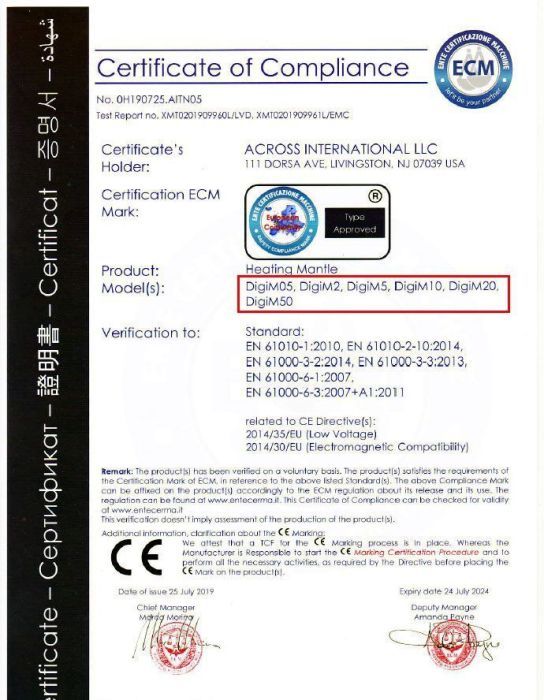

| Certification |
ETL tested to UL and CSA standards (optional), CE (standard)
|
| Warranty |
3 Month Warrenty |
|
Standard Packages
| Standard package
Part description
|
Quantity
|
Part image |
Ai DigiM 5L digital heating & stirring mantle
|
1 set
|
|
External temperature probe
DigiM05, DigiM2, DigiM5: Cable Length: 40”, Probe Length: 9” DigiM10, DigiM20: Cable Length: 43”, Probe Length: 15” |
1 pc |
|
| Internal temperature plug
|
1 pc |
|
| Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs |
1 or 2 pcs |
|
| Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs |
1 or 2 pcs |
|
PTFE coated stir bar
|
2 pcs |
|
| PTFE coated magnetic stir bar remover |
1 pc |
|
| 4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10, and DigiM20: 2 pcs |
1 or 2 pcs |
|
User's manual
|
1 pc
|
|
|
