Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.
The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.
Specifications
Specifications
Model
|
DigiM10
|
Electrical requirements
|
110V 60Hz 1-Phase, 2050 watts, 24A or 220V 50/60Hz 1-Phase, 2050 watts, 12A
|
Heating
|
Ambient to 300°C
|
Stirring |
Min. speed: 110 rpm, max. speed: 2000 rpm (1,500 rpm for UL model) Motor power: 40 watts Motor type: brushless DC motor
|
Controller |

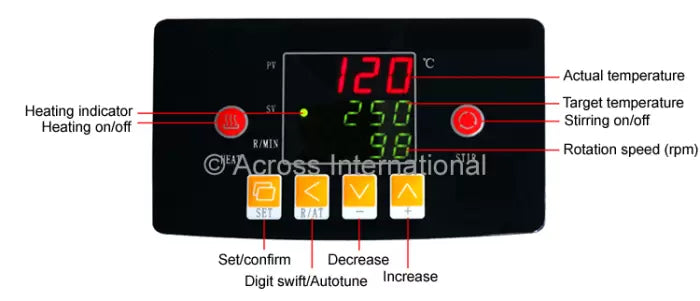

PID control with digital temperature and rotation speed display |
External thermocouple
|
Type: PT100 Cable length: 43 inches Stainless steel probe length: 15 inches Stainless steel probe diameter: 5 mm
|
Flask holder |
Maximum flask capacity: 10 liters Top opening diameter: 11.75 inches Depth: 6.5 inches
|
Dimensions (WxDxH) |
Unit: 18 x 17.5 x 13 inches, shipping: 22 x 21 x 18 inches
|
Weight |
Unit: 30 lbs, shipping: 40 lbs |
Safety |
Thermocouple failure protection |
Certification |

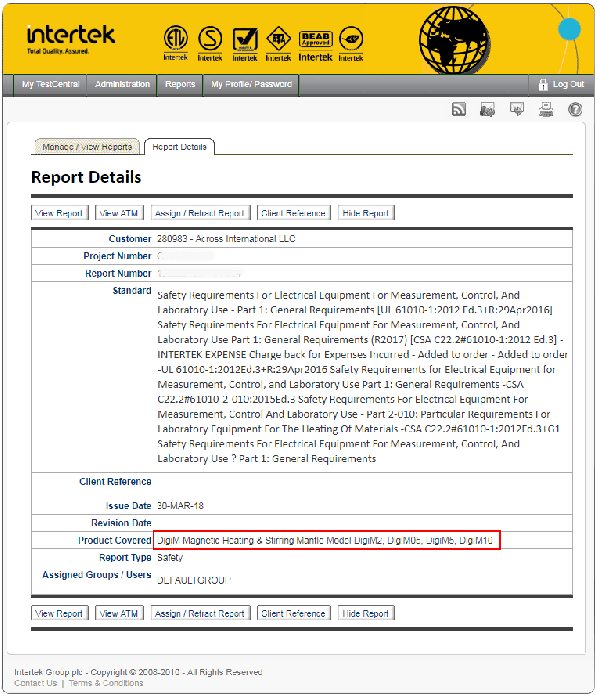

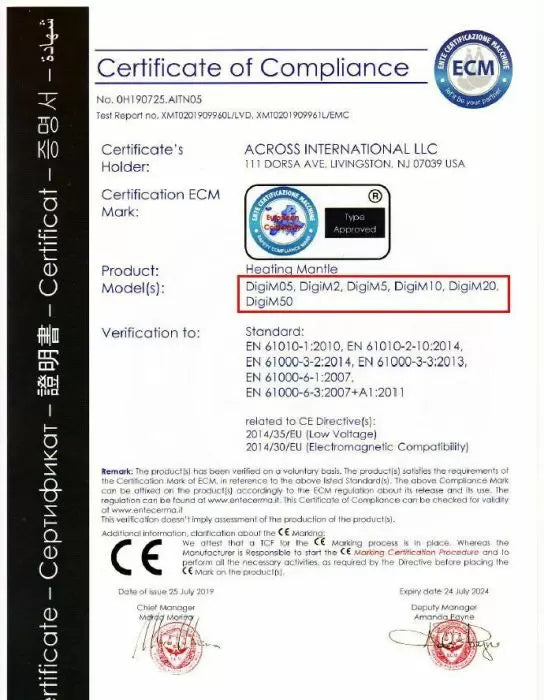

ETL tested to UL and CSA standards (optional), CE (standard)
|
Warranty |
One year |
|
Standard Packages
Standard package
Part description
|
Quantity
|
Part image |
Ai DigiM 10L digital heating & stirring mantle
|
1 pc
|
|
External temperature probe DigiM05, DigiM2, DigiM5: Cable Length: 40”, Probe Length: 9” DigiM10, DigiM20: Cable Length: 43”, Probe Length: 15” |
1 pc |
|
Internal temperature plug
|
1 pc |
|
Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs
|
1 or 2 pcs |
|
Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs
|
1 or 2 pcs |
|
PTFE coated stir bar
|
2 pcs |
|
PTFE coated magnetic stir bar remover
|
1 pc |
|
4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs |
1 or 2 pcs |
|
User's manual
|
1 pc
|
|
|
