The Ai DeepFreeze series -40C 35 Cu Ft freezers is perfect for extra-large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
- All stainless steel interior for clean operation, durability, and ease of maintenance
- Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Stainless steel interior for clean operation, durability, and ease of maintenance
- Dual silicon sealing gaskets for ultra airtight operation
- 72-hour battery backup for controller
- Built-in remote alarm and RS-485 port
- USB interface for data export and storage
- Extremely quiet and reliable
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials
- Built-in swivel casters with adjustable support that will secure the unit on uneven floor
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
Specifications
| Model |
D35 |
Electrical requirements
|
110V (±10%) 60Hz 1-Phase, 1,375 watts 12.5A
|
| Performance |
Temperature range: -20°C to -40°C
Time to reach -40°C: 6 hours (110V)
|
| Compressor |
Make: SECOP
Number of compressor: two
Style: parallel
Refrigerant: R507
|
| Chamber |
Dimensions: 40 x 27 x 54"
Material: 304 stainless steel
Capacity: 35 Cu Ft
|
| Shelf |
Come with unit: three adjustable shelves (4 compartments)
Material: 304 stainless steel
Capacity: 110 Lbs on three shelves, evenly distributed
450 Lbs on the base of the chamber, evenly distributed
Dimensions: 40 x 27 inches (compatible with G35)
Additional shelf unit price: $250
|
Door and gasket
|
Inner door: four, each with one sealing gasket
External door: one with dual sealing gasket, lock-able
|
| Working environment |
- Temperature: 16°C to 32°C
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
|
| Battery backup system |
72 hours (for controller display and alarms only) |
| Access port |
Two, one on the side and one in the back, one inch diameter |
| Communication |
Remote alarm 4-20mA transmitter, USB, RS-485 |
| Built-in swivel casters |
Four, with two leveling feet
|
Noise level
|
52 dBA |
Unit/shipping weight & dimensions
|
735 Lbs / 964 Lbs
54 x 41.5 x 78.5" / 59 x 45 x 86" (WxDxH)
|
| Safety |
Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure alarms
External door with lock
|
| Warranty |
One year |
|
Standard Packages
Standard Package
Part description
|
Quantity
|
Part image |

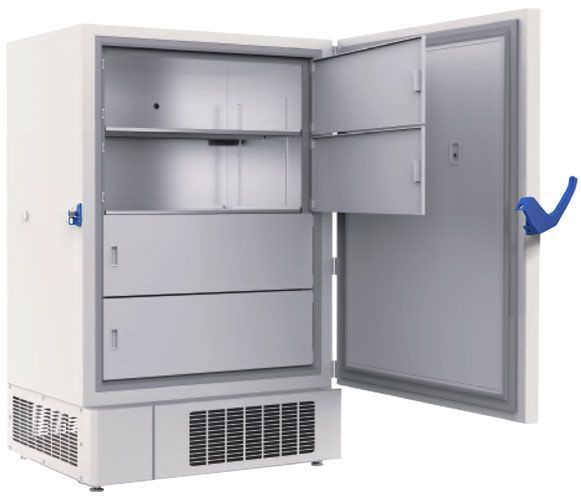

Ai D35 -40°C upright freezer
|
1 pc
|
|
| Shelf
|
3 pcs |
|
Ice scraper
|
1 pc |
|
| Additional access port inside cap
|
2 pcs
|
|
| Wrench |
1 pc |
|
| Door key |
2 pcs |
|
USB drive with data reading program
|
1 pc |
|
| Users manual |
1 pc
|
|
|
