The Ai DeepFreeze series -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
- High/low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Dual silicon sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller
- Built-in remote alarm and RS-485 port
- USB interface for data export and storage
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
Specifications
| Model |
D16 |
Electrical requirements
|
110V (±10%) 60Hz 1-Phase 8.89A
|
| Performance |
Temperature range: -20°C to -40°C
|
| Compressor |
Number of compressors: two
Cooling method: direct cooling
Defrost mode: manual
Style: parallel
Refrigerant: R290
|
| Chamber |
Dimensions: 25.5 x 22.5 x 24.5" (WxDxH)
Number of chambers: two
Material: stainless steel
Volume: 15.9 Cu Ft
|
| Shelf |
Quantity: two in each chamber, four in total
Style: fixed
Material: stainless steel |
Door
|
2
|
| Working environment |
- Temperature: 16°C to 32°C
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
|
| Access port |
Two
|
| Communication |

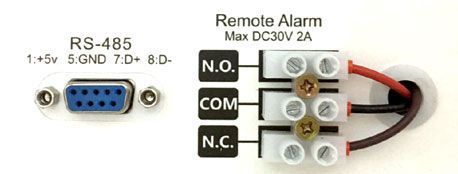

Remote alarm 4-20mA transmitter, USB, RS-485
|
| Built-in swivel casters |
Four, two with brakes
|
Noise level
|
52 dBA |
Unit/shipping weight & dimensions
|
320 Lbs / 345 Lbs
30.5 x 26.5 x 73" / 37.5 x 34.5 x 80" (WxDxH)
|
| Safety |
Compressor over-temp protection
Compressor power surge delay protection
Power failure protection
Low battery, door open, filter clogging, system failure, sensor error, condenser
overheat alarms
External door with lock
|
| Warranty |
One year |
|
Standard Packages
Standard Package
Part description
|
Quantity
|
Part image |
Ai D16 -40°C 16 Cu Ft upright freezer
|
1 pc
|
|
Ice scraper
|
1 pc |
|
| Additional access port inside cap
|
2 pcs
|
|
| Wrench |
1 pc |
|
| Door key |
2 pcs |
|
USB drive with data reading program
|
1 pc |
|
| Users manual |
1 pc
|
|
|
