Ai HandPress 3 x 2 swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and a built-in adjustable pressure knob.
**ACROSS INTERNATIONAL ONLINE SALES PRICE ONLY AVAILABLE AND VALID IN CONTINENTIAL US**
**OFERTA ONLINE DE PRENSAS ACROSS INTERNATIONAL SOLAMENTE DISPONIBLE Y VALIDO EN LOS ESTADOS UNIDOS EEUU CONTINENTIAL**
Features
Excellent for creating solventless botanical extractions
Specifications
|
Specifications
Electrical requirements
|
220V 50/60Hz, single phase, 1100 watts
|
Heated platen
|
Dimensions: 3 x 2 inches
Number of heated platens: two
Material: solid aluminum
|
| Maximum downward pressure |
1,000 lbs or 167 psi
(measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in the USA)
|

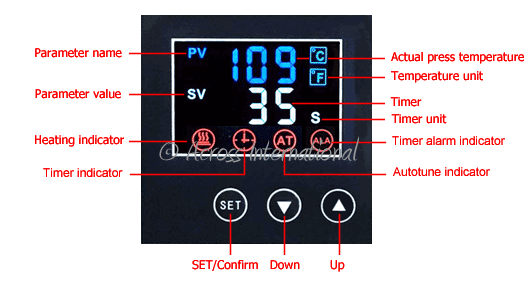

Temperature controller
|
Type: PID controlled digital controller with LCD panel
Number of controller installed: two
Display unit: Fahrenheit or Celsius
Temperature range: ambient to 480°F (250°C)
Timer range: 1 to 999 seconds
|
| Body material |
Powder coated steel |
| Safety |
Press arm lock, timer alarm
|
Unit weight/shipping weight
|
30 Lb / 50 Lbs
|
Unit dimensions (WxDxH)
|
14.5 x 13.5 x 19 inches
|
| Shipping dimensions (WxDxH) |
19 x 18 x 22 inches |
| Recommended heat settings for botanical extractions
|
Flowers: 180°F to 230°F
Concentrates: 150°F to 200°F |
| Warranty |
90 days
|
|
Standard Packages
| Standard package
Part description
|
Quantity
|
Part image |
Ai 3x2" manual heat press with dual heating platens
|
1 pc
|
|
Users manual
|
1 pc
|
|
|
