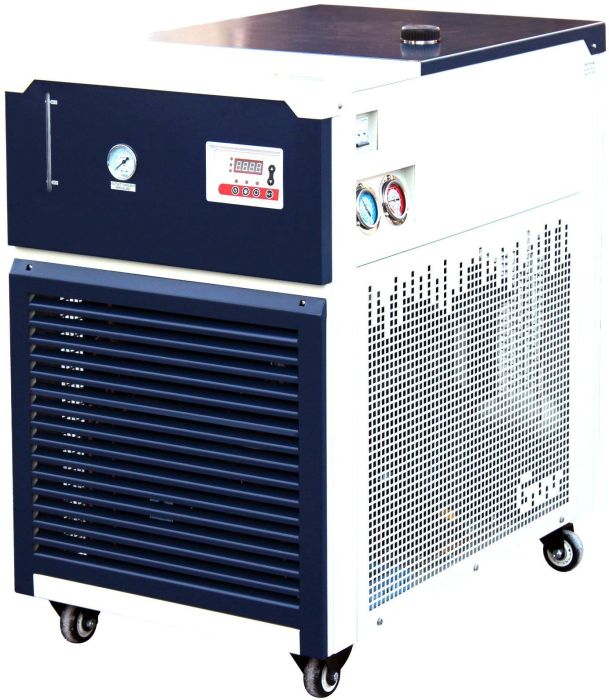

Across International Ai -30°C 40L Recirculating Chiller with 30L/Min Centrifugal Pump

Power Lab Supply 2SKU: C30-40-50L

Certification: Please Select
Delivery liftgate service: Please Select
Price:
Sale price$12,470.40 USD
Description

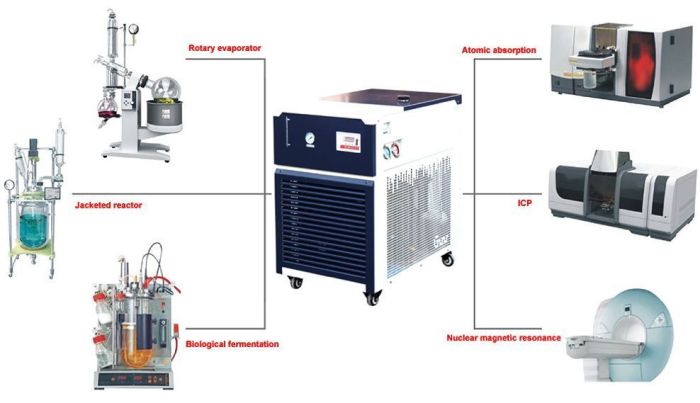

Ai C30-40 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C30-40 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

IMPORTANT! -30C/-22F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).

C30-40 circulating chiller features

  • ETL tested to UL and CSA standards
  • No dry ice or liquid nitrogen needed
  • Advanced PID digital temp controller
  • Built-in chilling fluid filter protects the recirculating pump and prevent blockage
  • All steel construction for durability
  • Eco-friendly R404A refrigerant
  • Cost saving as the water consumption is completely eliminated
  • Built-in casters for mobility
  • Insulated tubing included
  • Recommended for 50L rotary evaporators





Specifications
Specifications

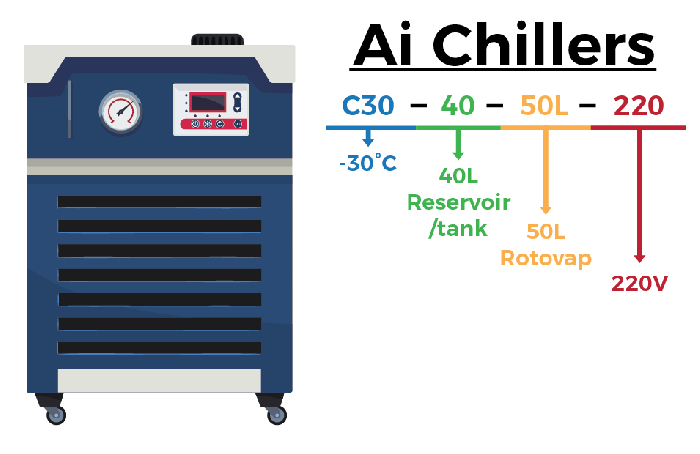

 Model  C30-40-50L
 Temperature range  Ambient to -30°C (No load)
 Electrical requirements
 220V 60Hz 1-PH 18A, 3,960 watts (Not compatible with 50Hz power)
 Cooling capacity
 (Assuming working environment
  25°C/77°F)
 @ 32°F/0°C:          5,000W
 @ 14°F/-10°C:       3,000W
 @-4°F/-20°C:         1,800W
 @-22°F/-30°C:       1,000W
 Compressor  Make: KK
 Power: 208-230V 60Hz 1-PH
 Number of compressor: one
 Refrigerant: R404A (3.2 kgs)
 Recirculating pump  Model: 25PLBR30-10
 Type: Centrifugal
 Output: 280 watts
 Pumping speed: 30 L/min or 8 gallon/min
 Maximum pressure: 1 bar

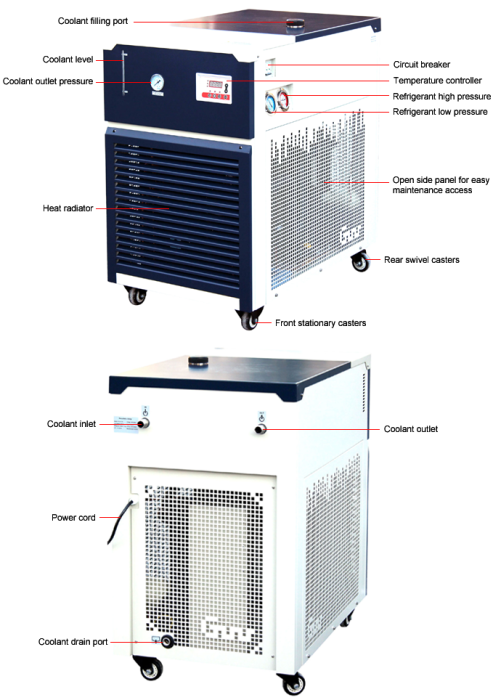

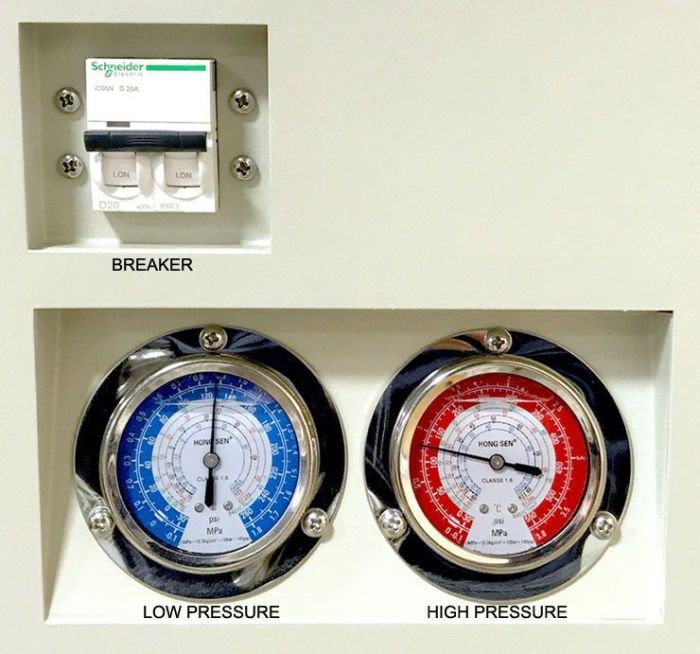

 Coolant outlet pressure  Displayed on the built-in mechanical pressure gauge

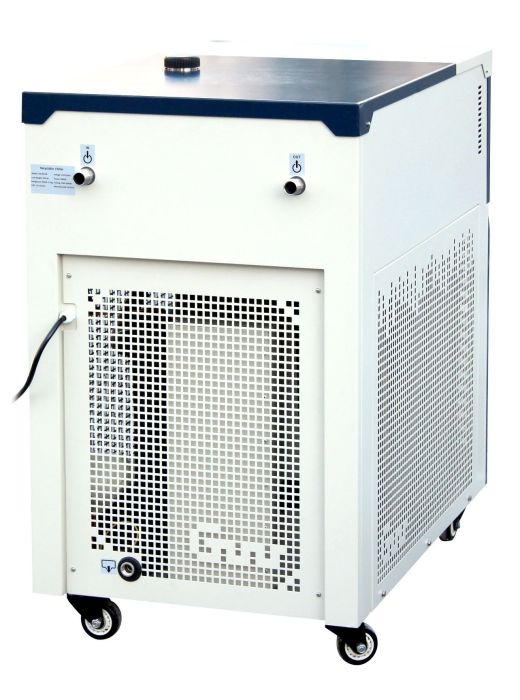

 Reservoir
 Material: Type 304 stainless steel, polished
 Chilling fluid connection: 3/4" NPT
 Drain port: 1/2" NPT
 Overflow port: 3/8" hose barb
 Capacity: 40 liters or 10.6 gallons
 Dimensions: 17.5 x 17.5 x 9.5" (WxDxH)

 Radiator  Fan motor
      Make: Boyoung
      Model: YWF4E-400
      Power: 220V 60Hz 1.3A 300W
      Rotation speed: 1550 rpm
      Flow rate: 4240 m3/hour
 Cleaning
      Clean radiator fins with a fin comb every three months

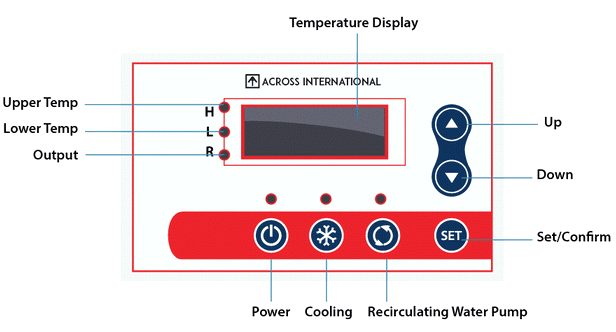

 Temperature controller

 Type: Digital microprocessor PID controlled
 Display unit: Celsius °C
 Temperature accuracy: +/- 2°C
 Temperature range: Ambient to -30°C

 Temperature sensor type

 Pt100

 Housing  Powder coated type 42 stainless steel
 Recommended coolant
 For 50°F/10°C or higher:
            distilled water
 Between 50°F/10°C and -22°F/-30°C:

50% ethylene glycol + 50% distilled water

 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters  Four
 Unit/shipping dimensions
 40 x 25 x 41" / 46 x 30 x 51" (WxDxH)
 Unit/shipping weight  365 Lbs / 480 Lbs
 Safety  Compressor over-temp protection
 Compressor delay start protection
 Short circuit and ground protection
 Over-current protection
 Over-voltage protection
 Recommended for rotary evaporators  Ai 50L SolventVap rotary evaporators
 Warranty  One year

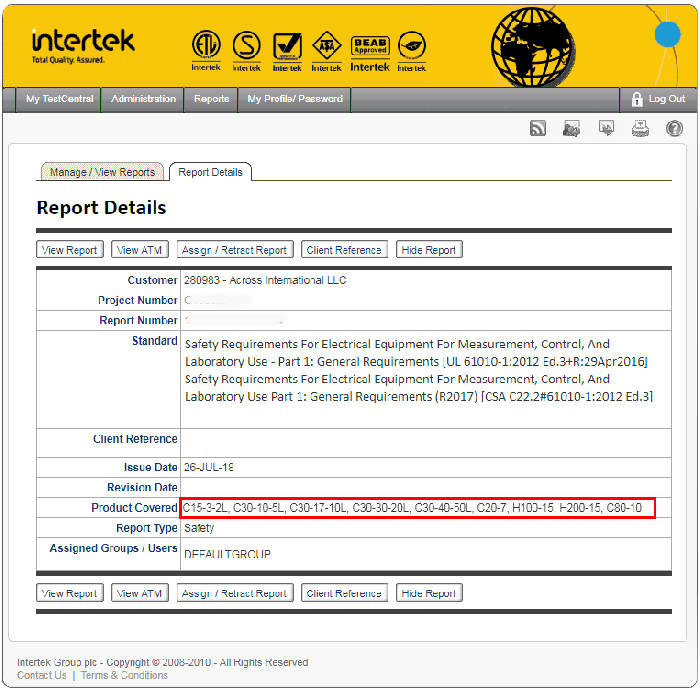

 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
 Download
Standard Packages
Standard package



 Part description

 Quantity

Part image

 Ai C30 -30°C 40L capacity recirculating chiller
1 pc
 3/8" insulated chilling fluid tubing 11 ft
 1/2" NPT to 3/8" barb connector with on/off valve
3 pcs

 3/4” NPT Male to 1/2” NPT female adapter 2 pcs
 Brush 1 pc
 PTFE sealing tape 1 pc
 Users manual 1 pc
