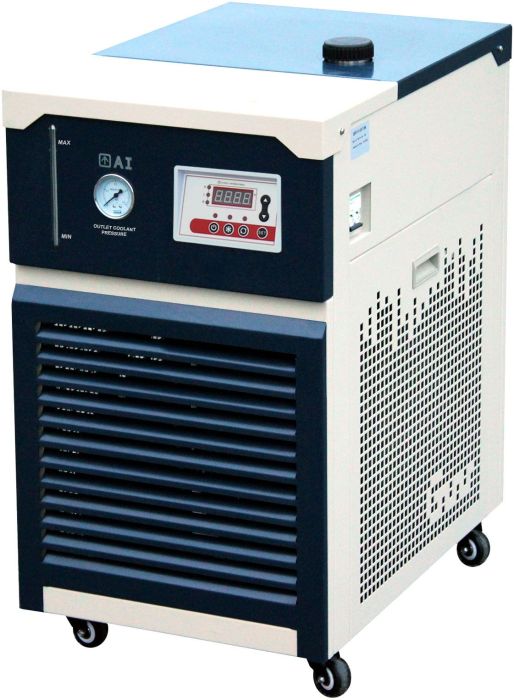

Across International Ai -30°C 17L Recirculating Chiller with 20L/Min Centrifugal Pump

Save $125.80 USD
Power Lab Supply 2SKU: C30-17-10L
No reviews

Sale price$6,164.20 USD Regular price$6,290.00 USD

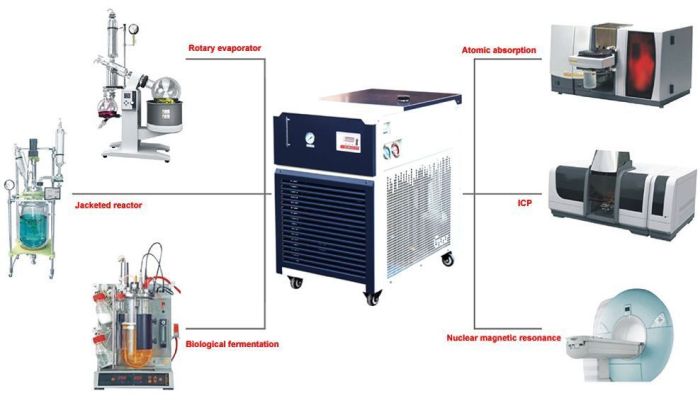

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.


C30 circulating chiller features

  • ETL tested to UL and CSA standards
  • No dry ice or liquid nitrogen needed
  • Advanced PID digital temp controller
  • Built-in chilling fluid filter protects the recirculating pump and prevent blockage
  • All steel construction for durability
  • Eco-friendly R410A refrigerant
  • Cost saving as the water consumption is completely eliminated
  • Built-in casters for mobility
  • Insulated tubing included
  • Recommended for 10L rotary evaporators

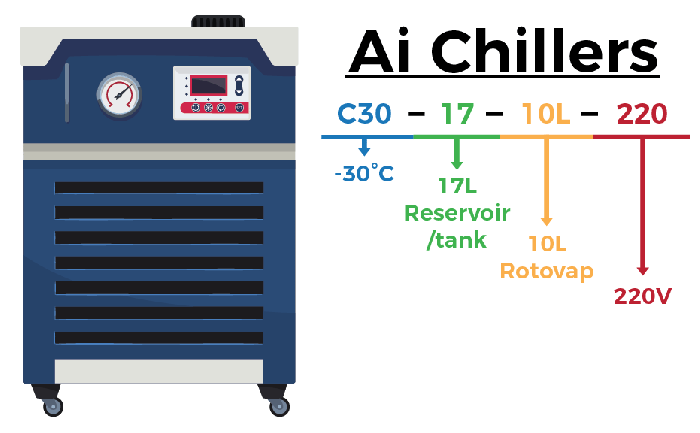

 Model  C30-17-10L
 Temperature range  Ambient to -30°C (No load)
 Electrical requirements
 220V 60Hz 1-PH, 1200 watts (Not compatible with 50Hz power)
 Cooling capacity
 (Assuming working environment
 @ 32°F/0°C:          1,750W
 @ 14°F/-10°C:       1,100W
 @-4°F/-20°C:           700W
 @-22°F/-30°C:         300W
 Compressor  Make: Panasonic
 Power: 208-230V 60Hz 1-PH
 Number of compressor: one
 Refrigerant: R410A

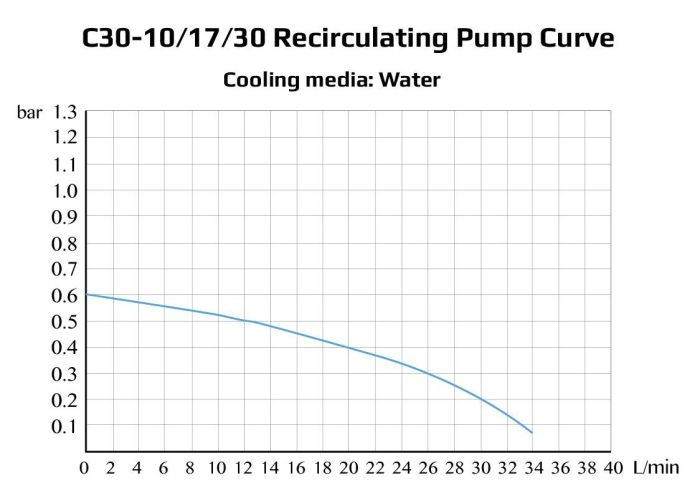

 Recirculating pump  Type: Centrifugal
 Output: 100 watts
 Pumping speed: 20 L/min or 5.3 gallon/min
 Maximum head: 20 feet or 6 meter
 Maximum pressure: 5.8 psi

 Coolant outlet pressure  Displayed on the built-in mechanical pressure gauge
 Material: Type 304 stainless steel, polished
 Chilling fluid connection: 3/8" hose barb x 2
 Capacity: 17 liters or 4.5 gallons

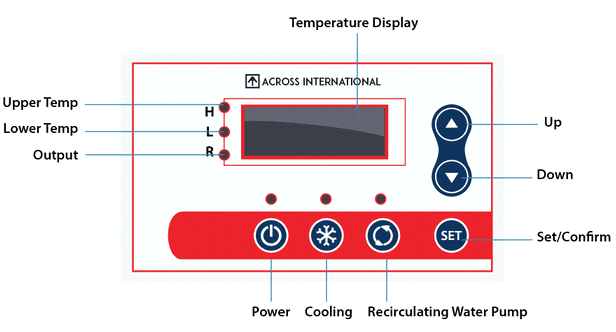

 Temperature controller

 Type: Digital microprocessor PID controlled
 Display unit: Celsius °C
 Temperature accuracy: +/- 2°C
 Temperature range: Ambient to -30°C

 Temperature sensor type


 Housing  Powder coated type 42 stainless steel
 Recommended coolant
 For 50°F/10°C or higher:
            distilled water
 Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water

 Working environment  -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters  Four
 Unit/shipping dimensions
 26.5 x 18 x 30.5" / 32 x 23 x 40" (WxDxH)
 Unit/shipping weight  175 Lbs / 235 Lbs
 Safety  Compressor over-temp protection
 Compressor delay start protection
 Short circuit and ground protection
 Over-current protection
 Recommended for rotary evaporators  Ai 10L SolventVap rotary evaporators
 Warranty  One year

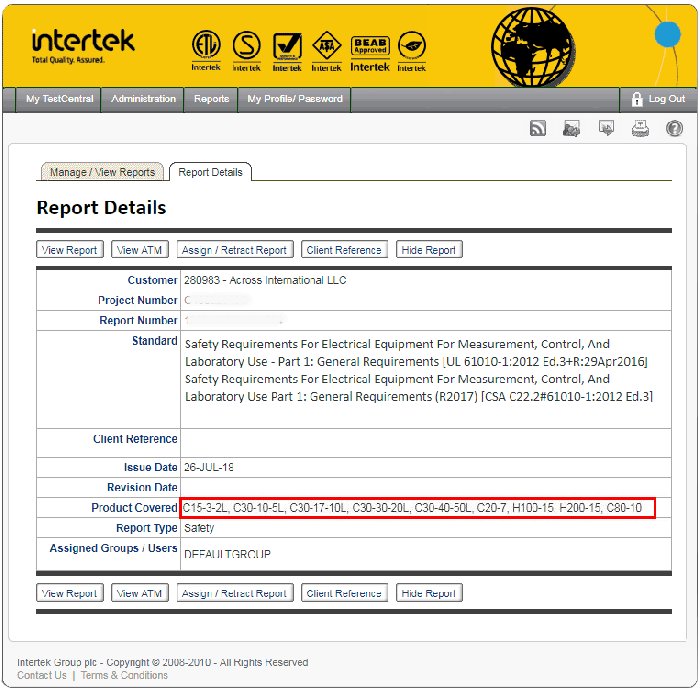

 Compliance  UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
Standard Packages
Standard package


 Part description


Part image

 Ai -30°C/-22°F recirculating chiller
1 pc

 3/8" insulated chilling fluid tubing 11 ft
 3/8" stainless steel chilling fluid connector with on/off valve
3 pcs
 Brush 1 pc
 PTFE sealing tape 1 pc
 Users manual 1 pc
