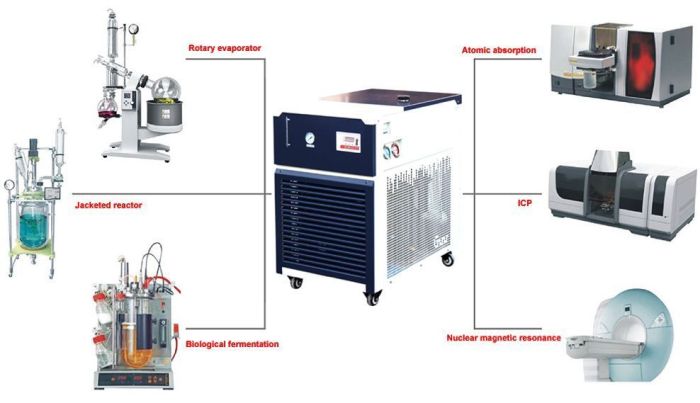

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30C/-22F ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C30 circulating chiller features
- ETL tested to UL and CSA standards
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Eco-friendly R410A refrigerant
- Insulated tubing included
- Recommended for 5L rotary evaporators
Specifications
Specifications

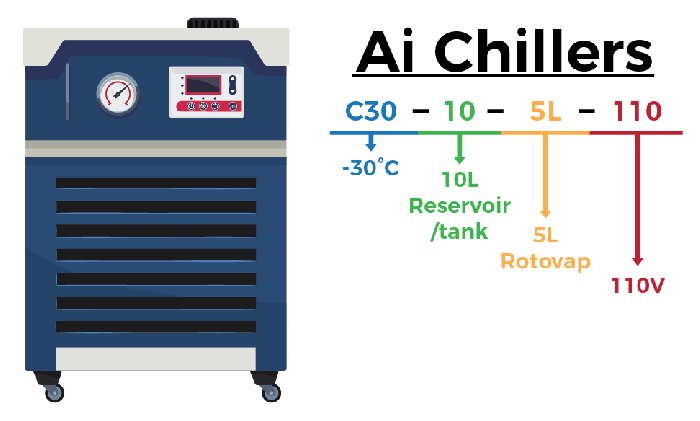

| Model |
C30-10-5L |
| Temperature range |
Ambient to -30°C (No load) |
Electrical requirements
|
220V 60Hz 1-PH, 1,100 watts (Not compatible with 50Hz power)
|
Cooling capacity
(Assuming working environment
25°C/77°F) |
@ 32°F/0°C: 1,250W
@ 14°F/-10°C: 800W
@-4°F/-20°C: 300W
@-22°F/-30°C: 150W |
| Compressor |
Make: Panasonic
Power: 208-230V 60Hz 1-PH
Number of compressor: one
Refrigerant: R410A
|

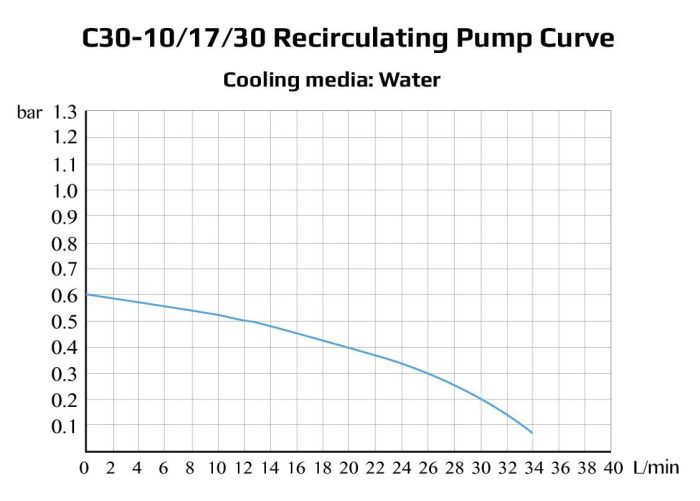

| Recirculating pump |
Type: Centrifugal
Output: 100 watts
Pumping speed: 20 L/min or 5.3 gallon/min
Maximum head: 20 feet or 6 meter
Maximum pressure: 5.8 psi
|
| Coolant outlet pressure |
Displayed on the built-in mechanical pressure gauge |
Reservoir
|
Material: Type 304 stainless steel, polished

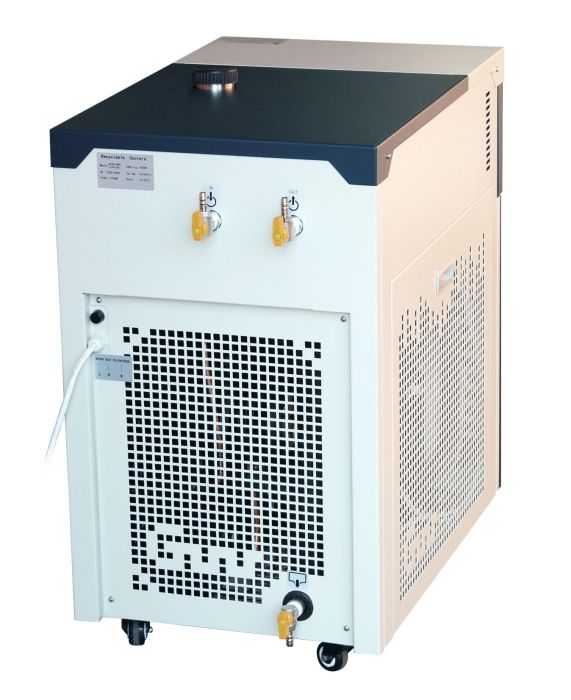

Chilling fluid connection: 3/8" hose barb x 2
Capacity: 10 liters or 2.6 gallons
|

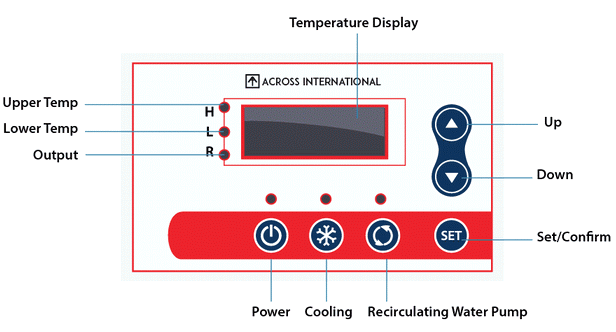

| Temperature controller |
Type: Digital microprocessor PID controlled
Display unit: Celsius °C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to -30°C
|
| Temperature sensor type |
Pt100 |
| Housing |
Powder coated type 42 stainless steel
|
Recommended coolant
|
For 50°F/10°C or higher:
distilled water
Between 50°F/10°C and -22°F/-30°C:
50% ethylene glycol + 50% distilled water
|
| Working environment |
-15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters |
Four
|
Unit/shipping dimensions
|
26.5 x 17 x 27" / 32 x 22 x 36" (WxDxH)
|
| Unit/shipping weight |
155 Lbs / 210 Lbs
|
| Safety |
Compressor over-temp protection
Compressor delay start protection
Short circuit and ground protection
Over-current protection
|
| Recommended for rotary evaporators |
Ai 5L SolventVap rotary evaporators
|
| Warranty |
One year |

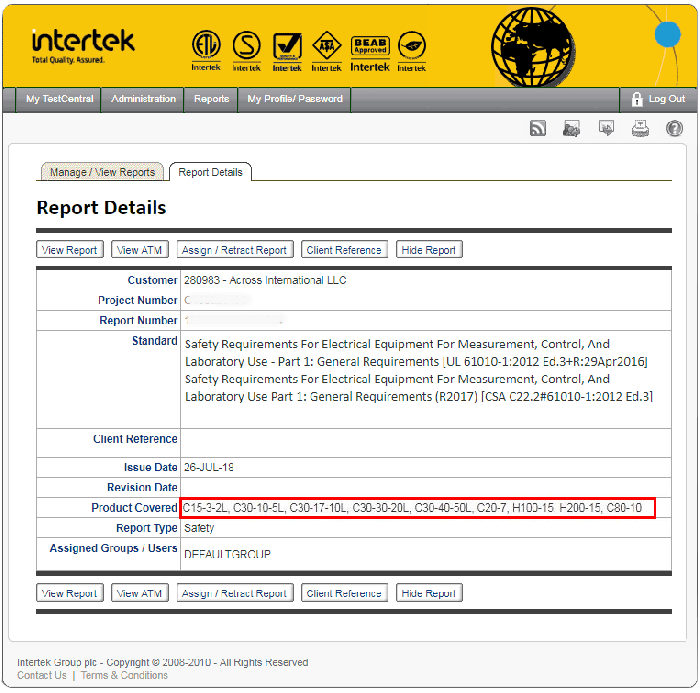

| Compliance |
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3 |
| Download |
|
|
Standard Packages
Standard package
Part description
|
Quantity
|
Part image |

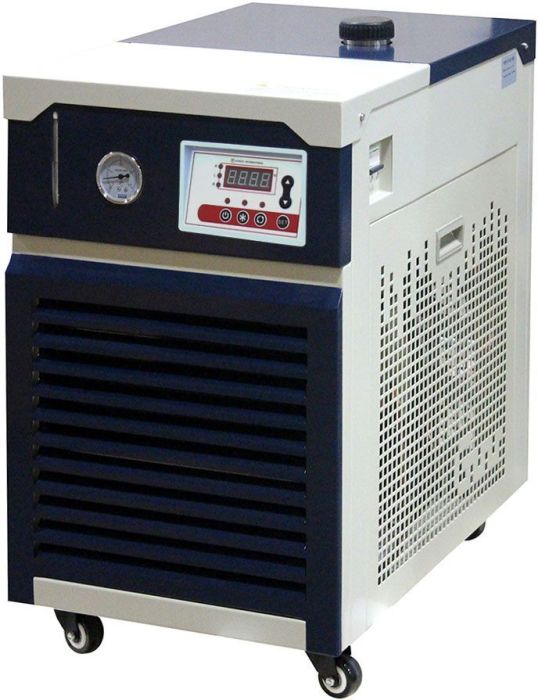

Ai -30°C/-22°F recirculating chiller
|
1 pc
|
|
| 3/8" insulated chilling fluid tubing |
11 ft
|
|
3/8" stainless steel chilling fluid connector with on/off valve
|
3 pcs
|
|
| PTFE sealing tape
|
1 pc |
|
| Brush |
1 pc |
|
| Users manual |
1 pc
|
|
|
