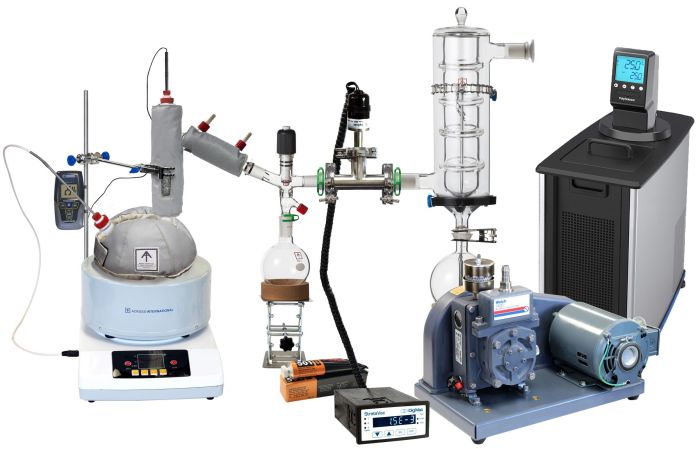

Ai Clear2 short path distillation turnkey package features
- Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- Ai Heavy wall glassware for durability
- Glass material: high borosilicate glass 3.3
- 3/8" hose barb chilling fluid and vacuum connections
- -20Ā°C to 135Ā°C 7L capacity compact recirculating chiller
- 2 liter dry ice cold trap with scissor jack, designed to be compact and easy to use
- Known for their ruggedness world-wide, the DuoSeal is a durable pump with a superior vapor handling capability
- Ai 2L digital heating and stirring mantle with individual heating and stirring controls
- Set your vacuum level and let us take care of the rest, with the DigiVac automatic vacuum controller
Warranty:
One year warranty on DigiM2 mantle, DigiVac vacuum controller, PolyScience chiller and Welch pump.
Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.
Ā
Standard Packages
| Clear2w Standard Package DigiM Mantle Package
Ā Part description
|
Ā Quantity
|
Part image |
Ai DigiM 2L heating mantle
|
1 set
|
Ā |
External temperature probe
DigiM05, DigiM2, DigiM5: Cable Length: 40ā,Ā Probe Length: 9ā DigiM10, DigiM20: CableĀ Length: 43ā, Probe Length: 15ā |
1 pc |
|
| Internal temperature plug |
1 pc |
Ā |
| Boss head DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs |
1 or 2 pcs |
Ā |
Stainless steel support rod DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs
|
1 or 2 pcs |
Ā |
Ā PTFE coated stir bar
|
2 pcs |
Ā |
| Ā PTFE coated magnetic stir bar remover |
1 pc |
|
| 4 prong stainless steel clamp opens to 3 1/2" DigiM2, DigiM5:- 1 pc DigiM10 and DigiM20: 2 pcs |
1 or 2 pcs |
Ā |
Ā User's manual
|
1 pc
|
|
Ā
Polyscience MX07R029 Package
Ā Part description
|
Ā Quantity
|
Part image |
| PolyScience MX -20Ā°C to 135Ā°C 7L Capacity Recirculating Chiller |
1 pc
|
|
| Ā Power Cord |
1 pc
|
|
Ā Packing Kit (Plastic Bag Containing Manual, Warnings and Quickstart Guide)
|
1 pc
|
|
Ā Fitting Kit (Please See Contents Below)
|
1 pcĀ |
|
Ā Ā½ā Barb x 5/16ā Barb
|
2 pc |
|
Ā Ā½ā Barb x Ā¼ā Barb
|
2 pc |
|
Ā Ā½ā Barb x 3/8ā Barb
|
2 pc |
|
| Ā Hose Clamp |
4 pc |
|
| Ā Tubing |
2 pc |
|
Ā
Welch 1400 Package
Ā Part description
|
Ā Quantity
|
Part image |
Ā Welch 1400 DuoSeal belt drive rotary vane dual stage pump
|
1 pc
|
|
| Ā Grade 19 Vacuum Pump Oil (1 Quart) |
1 pc |
|
| Ā Dust Cap |
1 pc |
|
Ā Welch 1417 oil mist exhaust filter
|
1 pc |
|
Ā Users manual
|
1 pc
|
|
Ā
DigiVac Stratavac -1 head Package
Ā Part description
|
Ā Quantity
|
Part image |
| DigiVac StrataVac With Bracket |
1 pc |
|
| Desktop AC Adapters 60 W 24 V 2.5A with power cord |
1 pc |
|
| Agilent 536-KF25 sensor with Cable |
1 pc |
|
| KF25 bellows electromagnetic Aluminum Valve |
1 pc |
|
| Quick Start Guide |
1 pc |
|
Ā
T1-2440 Standard Package
Ā Part description
|
Ā Quantity
|
Part image |
Ā Cold trap with lid, gasket, two 24/40 joint vacuum connectors,
Ā and one 35/20 joint drain port
|
1 set
|
Ā |
Ā 1L collection flask with 35/20 joint
|
1 pc |
|
Ā Lab stand
|
1 pc
|
|
Ā Boss head clamp
|
2 pcs |
|
Ā Lab scissor jack
|
1 pc |
|
| Ā Collection flask cork ring stand
|
1 pc |
|
| Ā Stainless steel ball joint clamp
|
1 pc |
|
| Ā Cold trap support
|
Ā 1 pc
|
Ā |
| Ā Lab chain clamp
|
1 pc |
|
Ā
Ā
Clear2v Standard Package
Ā Part description |
Ā Quantity
|
Part image |
| Ā Ai heavy wall, vacuum jacketed, distillation head with multiple sets of vigreux, cooling channel, and a temperature probe port |
1 pc |
|
| Ā Ai heavy wall round bottom 2-neck flask with one 34/45 vertical center neck and one 24/40 angled side neckĀ |
1 pc |
Ā |
| Ā PTFE 24/40 joint thermometer inlet adapter with Viton gasket |
2 pcs |
Ā |
| Ā Ai 24/40 PennyHead glass stopper |
1 pc |
|
| Ā Ai 24/40 joint, round-top glass feeding funnel |
1 pc |
|
| Ā Ai valved adapter with two 24/40 joints and one GL16 port |
1 pcĀ |
|
| Ā Ai 24/40 joint, heavy wall 500mL round bottom receiving flask |
2 pcs |
|
| Ā Ai glass 3/8" hose barb tee adapter |
1 pc |
|
| Ā 24/40 joint x 1, 34/45 joint x 1, stainless steel keck clip |
2 pcs |
Ā |
| Ā 24/40 joint, plastic keck clip |
3 pcs |
Ā |
| Ā Cork ring stand (2L x 1, 500mL x 1) |
2 pcs |
Ā |
| Ā 4 x 4" stainless steel lab jack (min. height 1.75", max height 6") |
1 pc |
|
| Ā Dow Corning high vacuum grease 5.3 oz |
1 pc |
|
| Ā Traceable Kangaroo digital thermometer |
1 pc |
|
Ā
Turnkey Accessories Package
Ā Part description
|
Ā Quantity
|
Part image |
Ā Ai DomeShield-2L x 1, HeadShield-5L-Right x 1, DrainShield-5L x 1
|
3 pcs |
|
Ā KF25 3-way tee flange
|
1 pc
|
|
| 3/8" hose barb to KF25 flange adapter |
1 pc |
|
| 3/8" silicone vacuum and chilling tubing |
12 ft |
|
| Ā KF25 flexible stainless steel bellow 3.3 ft |
1 pc |
|
| Ā PTFE 24/40 to KF25 Flange Adapter |
3 pcs |
|
| Ā KF25 quick clamp and centering ring |
6 sets |
|
Ā Apiezon PFPE 501 high temp vacuum grease
|
1 pc |
|
|
