The Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features
- ETL tested to UL and CSA standards
- Powerful 2,800 watts heater
- Adjustable pumping speed up to 15 liters per minute
- 2nd generation 7" TFT touch screen controller
- Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
-
ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation
Optional M16 male to 3/4" NPT adapters for Ai glass reactors $118.99
- M16x1.0 male to 1/2" NPT female x 2
- 1/2" NPT male to 3/4" NPT male x 2
Specifications
Specifications
Model |
H200-15 |
Temperature range |
Ambient to 200°C
|
Electrical requirements |
220V 60Hz 1-Phase 2,900 watts
|
Heating capacity |
2,800 watts
|
Recirculating pump |
Pumping speed: 15 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts
|
Reservoir
|

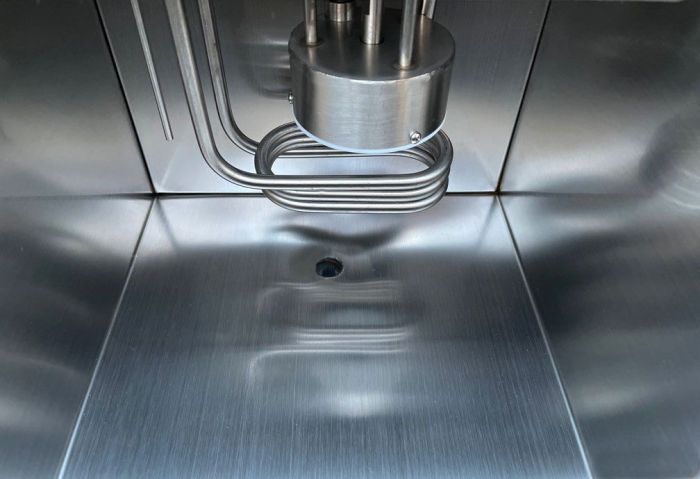

Dimensions: 10 x 12 x 8" (WxDxH) Material: Type 304 stainless steel Capacity: 15 liters or 4 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8" hose barb with on/off valve |
Temperature controller |
Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 200°C |
Working environment |
-15°C/5°F to 25°C/77°F, at <66% humidity |
Unit/shipping dimensions |
14.75 x 19 x 18.25" / 17 x 22 x 22" (WxDxH) |
Unit/shipping weight |
40 Lbs / 55 Lbs |
Safety |
Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection |
Warranty |
One year |
Compliance |
UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3 |
|
Standard Packages
Standard package
Part description
|
Quantity
|
Part image |
Ai H200-15 200°C 15L heated recirculator |
1 pc
|
|
250°C rated flexible insulated stainless steel tubing (40" L), pipe connection with M16 connection fitting
|
2 sets
|
|
1/2" NPT to 3/8" hose barb drain port adapter |
1 pc |
|
M16 Nuts, Ferrules and Sleeves |
4 Sets |
|
Users manual |
1 pc |
|
|
