The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features

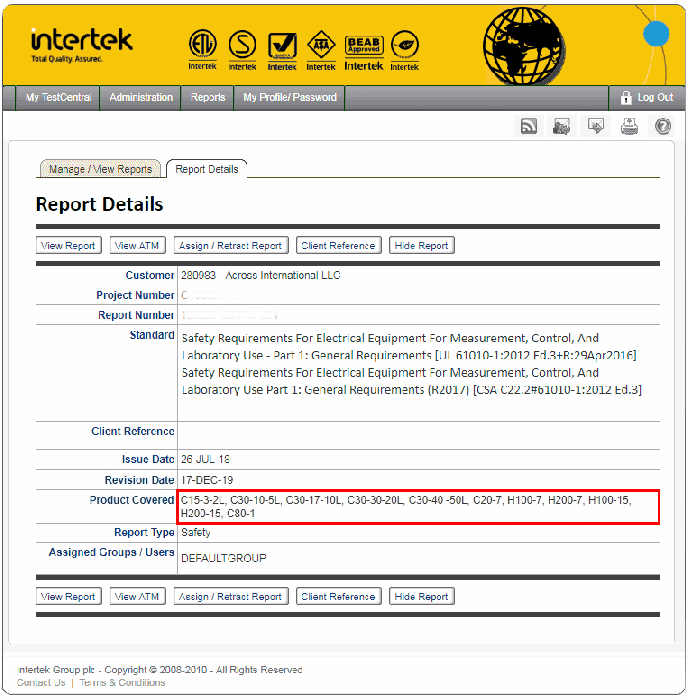

- ETL tested to UL and CSA standards
- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
-
ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems

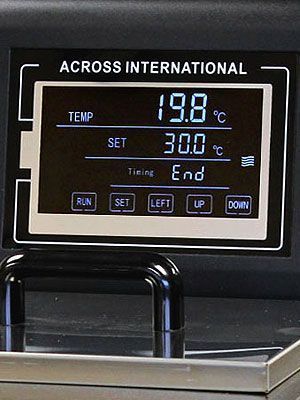

7" TOUCH SCREEN CONTROLLER
Specifications
Specifications
| Model |
H100-7sst |
| Temperature range |
Ambient to 100°C (No load)
|
Electrical requirements
|
220V 60Hz 1-Phase 2,600 watts
|
| Heating capacity |
2,500 watts |
| Recirculating pump |
Pumping speed: 20 liters per minute, adjustable
Maximum head: 16 feet or 5 meters
|

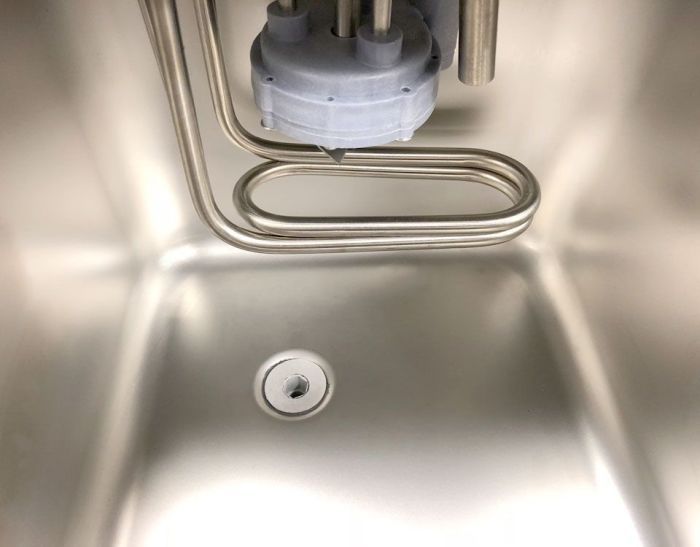

Reservoir
|
Dimensions: 9.5 x 12 x 7.5" (WxDxH)
Material: Type 304 stainless steel
Capacity: 7 liters or 1.9 gallons
Thermo fluid connection: 3/8" hose barb x 2
Thermo fluid drain port: 3/8" hose barb with on/off valve |
| Temperature controller |
Type: Digital microprocessor PID controlled
Display: 7" touch screen
Display unit: Celsius °C
Temperature step: 0.1°C
Temperature accuracy: +/- 2°C
Temperature range: Ambient to 100°C
|
| Working environment |
-15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters |
No
|
Unit/shipping dimensions
|
12 x 17 x 18" / 17 x 20 x 22" (WxDxH)
|
| Unit/shipping weight |
30 Lbs / 36 Lbs
|
| Safety |
Short circuit and ground protection
Over-current protection
Over-temperature protection
Upper/lower temperature alarm protection
|
| Warranty |
One year |
| Compliance |
UL 61010-1 :2012 Ed.3+R:29Apr2016
CSA C22.2#61010-1 :2012 Ed.3 |
|
Standard Packages
| Standard package
Part description |
Quantity
|
Part image |
| Ai H100-7 100°C 7L heated recirculator |
1 pc |
|
| 3/8" tubing (10 ft) |
1 pc |
|
| 1/2" NPT to 3/8" hose barb drain port adapter |
1 pc |
|
| User's manual |
1 pc |
|
|
