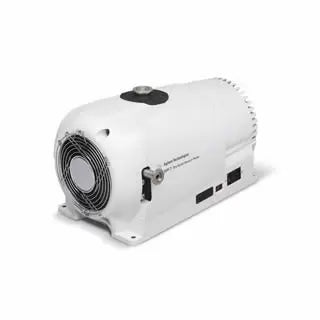

Across International Agilent IDP-7 dry scroll vacuum pump with inlet isolation valve

Save $136.52 USD
Power Lab Supply 2SKU: IDP-7-X3807-64010
No reviews

Sale price$6,689.48 USD Regular price$6,826.00 USD

The new Agilent IDP-7 dry scroll pump is a compact, high performance, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance.

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.




Base pressure (50 Hz) - Torr & mbar

3.0 x 10-2 Torr              4.0 x 10-2 mbar

Base pressure (60 Hz) - Torr & mbar

2.0 x 10-2 Torr              2.6 x 10-2 mbar

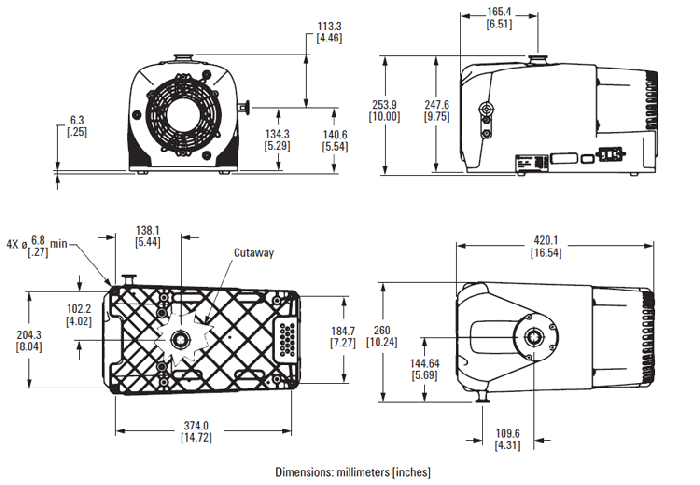

Dimensions (WxHxL)

10.24 in x 10 in x 16.54 in

Exhaust Connection



10 in

Inlet Connection


Input Voltage

200-240 VAC                 100-120


16.54 in

Noise Level

52 dB(A)

Pumping Speed (50 Hz)

120 L/min            4.2 CFM         7.2 m3/h

Pumping Speed (60 Hz)

152 L/min            5.4 CFM        9.1 m3/hr


10.24 in

Standard Packages
Standard package


 Part description


Part image

Agilent IDP-7 dry scroll vacuum pump with inlet isolation valve 1 pc

 Agilent North America 15A/125V power cord (656458203) 1 pc
Sintered Filter Breather Vent 1 pc
Fuse 10 A 1 pc
IDP-7 Quick Start Card 1 pc
Safety Information Booklet 1 pc
