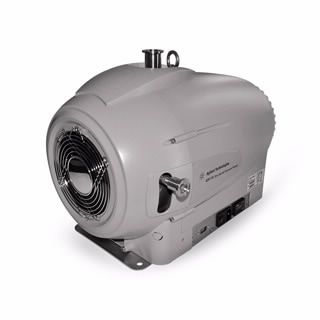

Across International Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve

Power Lab Supply 2SKU: IDP-15-X3815-64010010

Delivery liftgate service: Please Select
Power option: 110V 60Hz
Pump accessory: Please Select
Price:
Sale price$9,032.64 USD
Description

The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz.With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership.

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.







Specifications
Base pressure (50 Hz) - Torr & mbar

1 x 10-2 Torr             1.3 x 10-2 mbar

Base pressure (60 Hz) - Torr & mbar

1 x 10-2 Torr              1.3 x 10-2 mbar

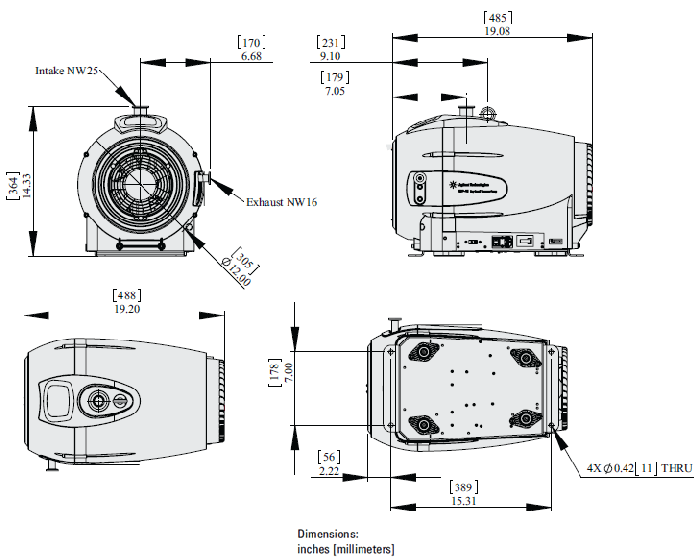

Dimensions (WxHxL)

13.1 in x 14.3 in x 19.1 in

Exhaust Connection

NW16

Height

14.3 in

Inlet Connection

NW25

Input Voltage

220-230 VAC                100-115

Length

19.1 in

Noise Level

50 dB(A)

Pumping Speed (50 Hz)

12.8 m3/h      214 L/min       7.5 CFM

Pumping Speed (60 Hz)

15.4 m3/h      256 L/min       9.1 CFM

UNSPSC Code

40151502

Width

13.1 in

Standard Packages
Standard package



 Part description

 Quantity

Part image

Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve
1 pc

 Agilent North America 15A/125V power cord (656458203)
1 pc
Quick Start Card 1 pc
Hex Key 1 pc
Breather Vent 1 pc
10 A Fuse 1 pc
