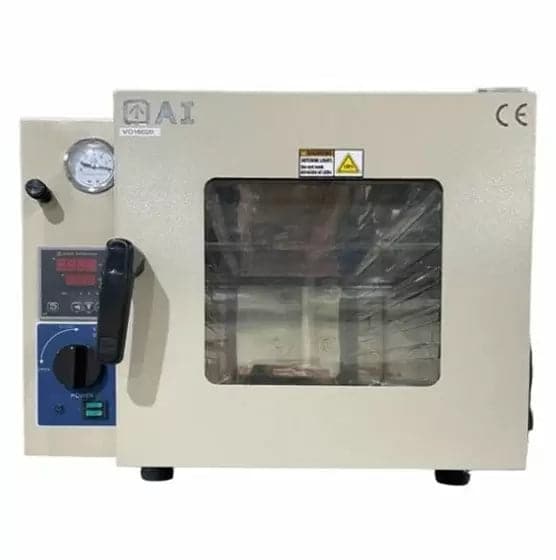

VO-16020 Vacuum Oven

1. Safety instruction

Dangerous！

1. Must be connect with the ground.
2. When the instrument is smoking vacuum or heating, do not allow to touch the door and window, must stand at more than one-meter distance from door.
3. Shall not dry inflammable, explosive, volatile and corrosive substances.
4. When need not to smoke air continuously, should shut off the vacuum valve firstly, then close the vacuum motor power switch, in order to prevent the vacuum pump oil flow backward to tank.
5. If the oven is broken, must be repaired by professional maintenance person.
6. If need to repair electrical parts, must be repaired by electrical engineer.

Warning! (May cause a serious property damage or loss of life)

1. Must fully read and understand operation manual, before operate the instrument.
2. When replace the fuse and electric parts, must pull the plug.
3. When the instrument is not used for long time, must pull the plug.

Application

The vacuum oven is widely used in biochemistry, chemical and pharmaceutical, health care, agricultural research, environment protection and other areas of research and application for powder drying, baking and all kinds of glass containers’ disinfection and sterilization. Especially for those drying heat-sensitive, labile, oxidizing material and decompounded to carry on fast and effective drying process.
