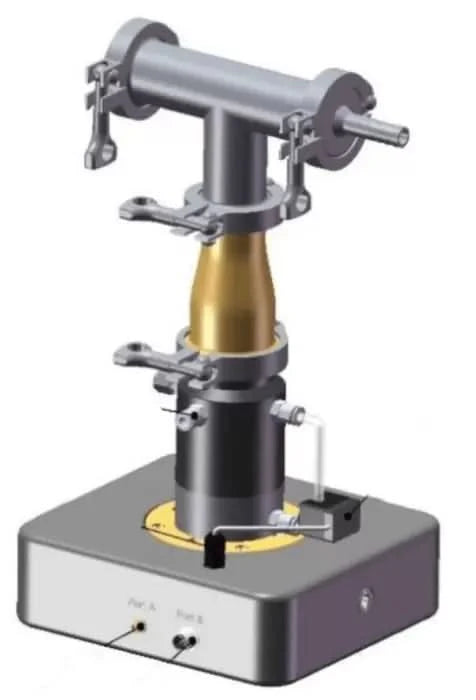

Application:
For nano spray drying, spray pyrolysis, reactants injection and thin film coating.
Technical Notes:
- Turn on the power after all components have been connected
- DO NOT turn on the power when there is no liquid in the device! Otherwise, it will burn the spray head and megasonic generator.
- Please confirm that you fix the liquid detector 23 on the liquid monitor tube 3. Liquid monitor tube should be push on the bottom of groove of liquid detector. The liquid detector should locate at lower around 1/3 part of liquid monitor tube.
- Deliver the liquid into the nano particle generator through the liquid input port 14 by syringe, syringe pump, peristaltic pump manually or automatically. The liquid tube is 1/8”（3.2mm）PTFE tube.
- The liquid cannot be deliver input too much and the liquid level should be not over the half part of the liquid monitor tube.
- If you use peristaltic pump or syringe pump automatically deliver the liquid, please don’t set the flow rate too high and result in that too much liquid deliver into the
- The liquid PH should be > 3。
- The liquid temperature should be lower than 60°C。
- The spray head should be cleaned after work. It is not necessary to take off the spray head during cleaning. You can clean the spray head with the atomization room 15

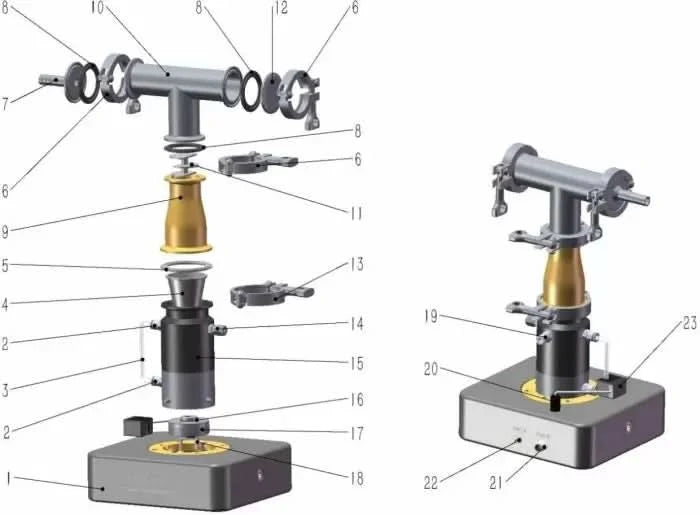

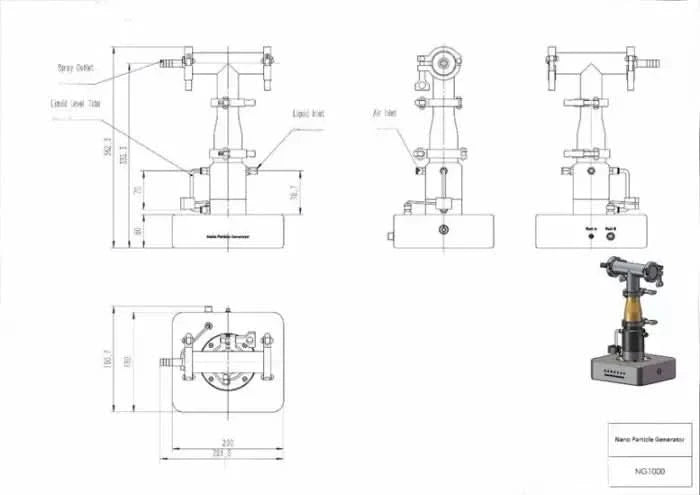

Assembly Diagram:
|
1 Bottom Stander |
9 Connector tube A 2”x1.5” |
17 NGH Spray head |
|
2 Φ6 connector |
10 Connector tube T 1.5” |
18 M4 Screw |
|
3 Liquid monitor tube Φ6 |
11 Filter plate |
19 Gas input portΦ6 |
|
4 Cone tube |
12 Fixer cover 1.5” |
20 Cable fixer |
|
5 Fixer gasket 2” |
13 Fixer ring 2” |
21 Port B for liquid detector (MG30 port IV) |
|
6 Fixer ring 1.5” |
14 Liquid input port 1/8” |
22 Port A for NGH spray head (MG30 port I or port II) |
|
7 Spray nozzle 1.5” to Φ12 |
15 Atomization room |
23 Liquid detector |
|
8 Fixer rubber ring 1.5” |
16 O Gasket |
|
| Specifications
All data is for water The droplet size and flow rate depend on the spray head model, please check the Table 2.
Table 2 Spray Head Model
The flow rate depends on the outlet size and blow air flow rate. Larger outlet and higher blow air flow rate give higher spray flow rate. |
