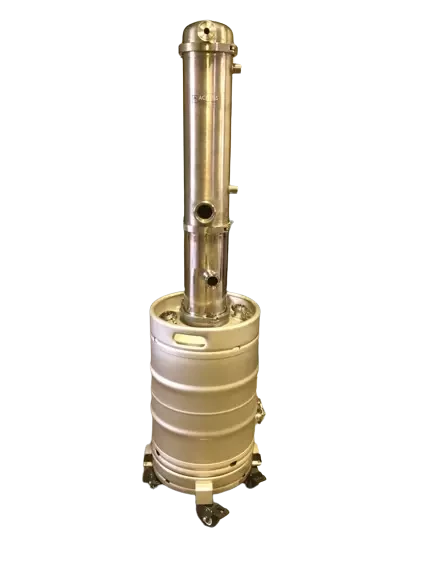

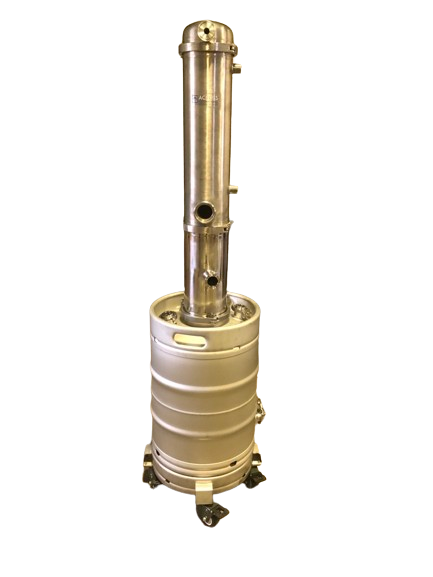

Introducing the Across International external condenser. This modular condenser has over 0.89m2 of surface area to handle large vapor loads and keep solvents out of your vacuum pump, single 50L receiving tank , and a 1.5” tri clamp connection for easy configuration to just about all types of equipment. Common applications for this condenser include powder drying in the pharmaceutical industry, electrode slurry drying in the battery and energy sector, and any application involving removal of water, ethanol, and other commonly used laboratory solvents. Speak to our sales team for help configuring the right chiller and other accessories for your application today!
|
Collection tank |
50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) |
|
Main Condenser |
Style: shell and tube heat exchanger Number of tubes: 70 Condensing area: 0.89 m2 |
|
Pressure |
Ultimate vacuum level: 1 Torr |
|
Process Connection |
1.5" Tri clamp |
|
Fluid Jacket Connections |
1/2" NPT (Female) |
|
Drain Port |
1.5" Tri clamp |
|
Vauum Connection |
1.5" Tri clamp |
|
Standard Gasket Material |
Viton |
|
Condenser Temperature Range |
-40 to 200C |
|
Unit Weight |
75 lbs |
|
Unit Dimensions WxDxH |
15.5" x 15.5" x 59" without dolly 15.5" x 15.5" x 67" |
