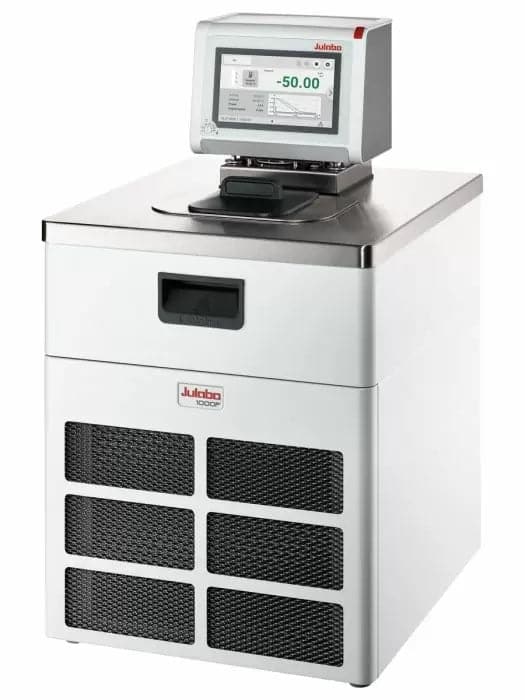

Across International Julabo MS-1000F Magio Chiller Heater

Save $742.40 USD
Power Lab Supply 2SKU: MS-1000F
No reviews

Price:
Sale price$17,817.60 USD Regular price$18,560.00 USD
Description

MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.

Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).

(Canadian and US NRTL Certified for both 110v & 220v)





Features:

  • TFT Color Touchscreen
  • Multilingual
  • Input for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • Continuously variable pressure/suction pump
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232/RS485, USB and Ethernet interface for online communication
  • Integrated programmer
  • Built-in drain tap
Videos
Specifications



Voltage Version

100V-115V/50-60Hz

NRTL

No

HST Booster

No

Refrigerant

R449A

Heating & Cooling

Both

Working Temp Range (°C)

-50...200

PCF Pressure (psi)

3.5...13.3

PCF Rate (l/min)

16...31

Weight (lbs)

120

Dimensions W x L x H (in)

16.5 x 19.3 x 27.6

Fluid Type

Water, Silicone, Water/Glycol

Standard Packages
Standard package



 Part description

 Quantity

Part image

Julabo MS-1000F Magio Chiller Heater 1 pc

Power Cord 1 pc

Caps and Nuts M16x1 (Item Installed On Pump Head of Unit)
4 pc

8 mm Hose Barbs 2 pc

12 mm Hose Barbs  2 pc

User's Manual 1 pc
