As with all circulators from the MAGIO range, the refrigerated circulators stand out thanks to their premium quality, high performance and intuitive operation. These devices provide extra powerful pressure and suction pumps and have an incredibly high heating output of 3 kW, enabling even more dynamic temperature control for external applications.

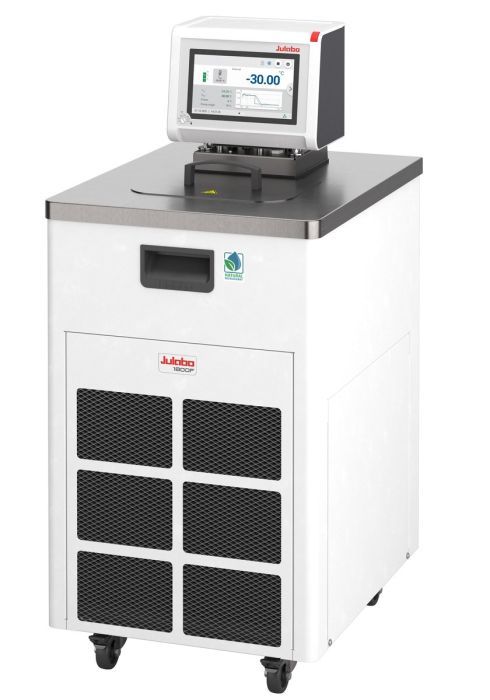

With a working temperature range of -50 ... +200 °C, the Refrigerated / heating circulator MAGIO MX-1800F delivers an outstanding cooling capacity of 1.87 kW at 20 °C despite its compact design.
Â
This cooling machine works with natural, environmentally-friendly refrigerant and was developed with a focus on energy efficiency. This means significant savings on the operating costs for numerous applications, which also means rapid amortization of the procurement cost. At the same time, the lower energy consumption positively contributes to climate protection.
Â
High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.
Â
Â
Â
Â
Product features
- USB connection
- Class III (FL) according to DIN 12876-1
- RS232 interface for online communication
- Integrated programmer
- Integrated external Pt100 connection
- Ethernet
- Analog interfaces (accessory)
- Ideal for demanding external applications
- Simple control of complex applications
- Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
- Continuously adjustable, extremely powerful pressure / suction pump
- Large, high-resolution TFT touch display with multilingual user interface
- Parts being in contact with the medium made of stainless steel
- Connections for solenoid valve
- Integrated pump connection M16×1
Â
Â
| Working Temp Range (°C) | -50...200 |
| Heating Capacity (kW) | 3 |
| Voltage Version | 208-230V/50-60Hz |
| Power A | 15A |
| Plug Type | NEMA 6-20P |
| Pump Connection | M16x1 male |
| PCF Pressure (psi) | 3.5...13.3 |
| Bath Fill Volume (L) | 6.5...11 |
| External Devices | Remote Control|Pt100 |
| Fluid Type | Water, Water/Glycol |
| Heating & Cooling | Both |
| Dimensions W x L x H (in) | 15.7x19.7x34 |
| Weight (lbs) | 135 |
Â
Cooling Capacity
| °C | -40 | -30 | -20 | 0 | 20 |
| kW | 0.3 | 0.47 | 0.77 | 1.57 | 1.87 |
