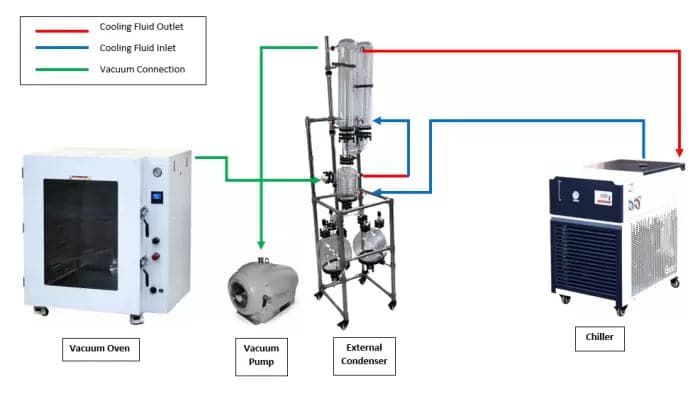

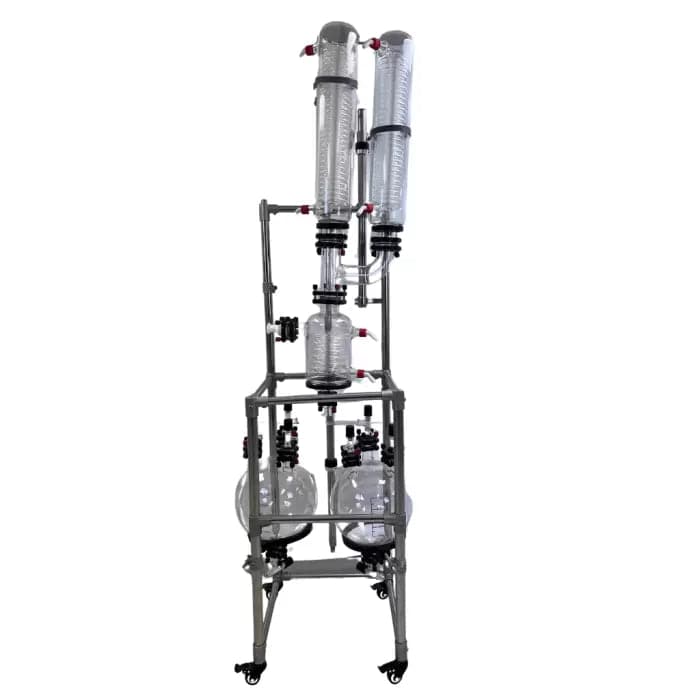

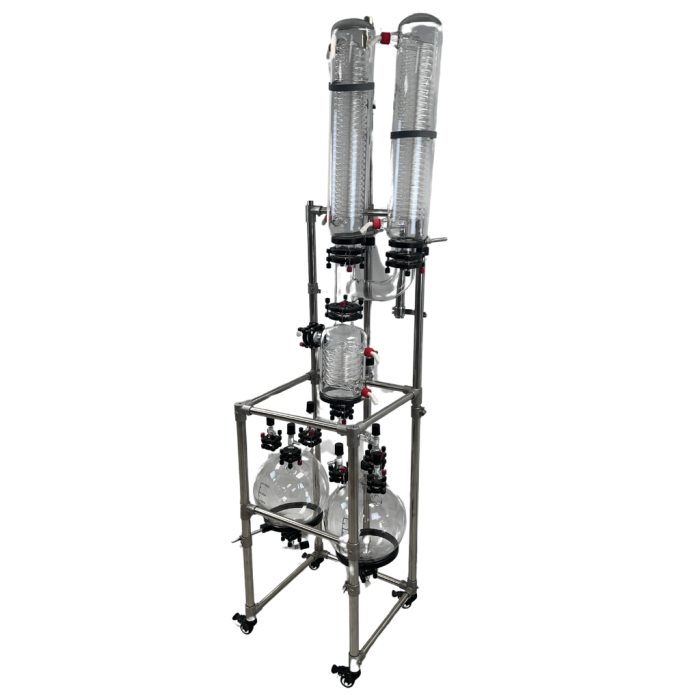

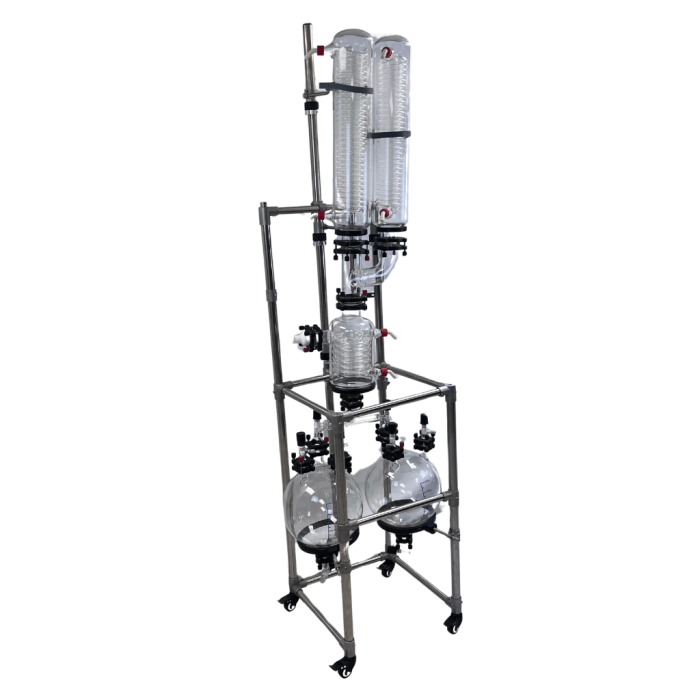

Introducing the Across International external condenser. This modular condenser has over 15,000 cm2Â of surface area to handle large vapor loads and keep solvents out of your vacuum pump, dual 10L receiving flasks for continuous operation with minimal downtime, and a KF25 connection for easy configuration to just about all types of equipment. Common applications for this condenser include powder drying in the pharmaceutical industry, electrode slurry drying in the battery and energy sector, and any application involving removal of water, ethanol, and other commonly used laboratory solvents. Speak to our sales team for help configuring the right chiller and other accessories for your application today!
Â
Â
Â
Â
Â
Â
Â
Â
|
Frame Material |
Aluminium |
|
Wetted Parts Material Consturction |
3.3 Borosilicate Glass and PTFE |
|
Glass Thickness |
5 mm |
|
Condenser Surface Area |
15500cm2 |
|
Hose Barb Size Chiller and Vacuum Connections |
3/8" |
|
Ultimate Vacuum |
<3 torr |
|
Process Connection |
KF25 |
|
Receiving Flask Volume |
10L |
|
Receiving Flask Barb Size |
1/2" |
|
Unit Dimensions (WxDxH) |
21"x 26"x 83" |
Â
|
Part description |
Quantity |
Imagine |
| Frame | 1 set | |
| Vertical main and auxiliary condensers | 2 pc | |
| Receiving flask glass vacuum port with PTFE open/close valve | 4 pc | |
| Receiving Flask Drain Port w/PTFE Valve | 2 pc | |
| Rubber-wrapped condenser support and bracket | 5 pc | |
| Rubber-wrapped receiving flask support | 2 pc | |
| Flask quick clamp & centering ring | 13 pc | |
| Centering Rings | 13 set | |
| GL18 connector with Gaskets | 8 pc | |
| QC-40 to KF25 PTFE Adapter | 1 pc | |
| Condenser Bridge | 1 pc | |
| 10L Receiving Flask | 2 pc |
