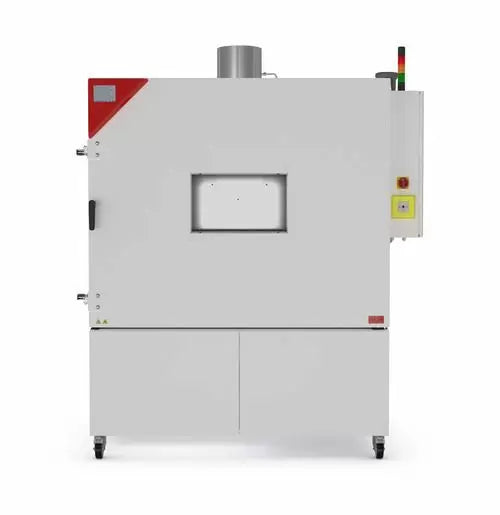

Across International Binder LIT MK 720 Battery Testing Chamber

Power Lab Supply 2SKU: Binder.MK72002

Delivery liftgate service: Please Select
Power option: 480V
Price:
Sale price$109,192.32 USD
Description
Overview

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.



Benefits

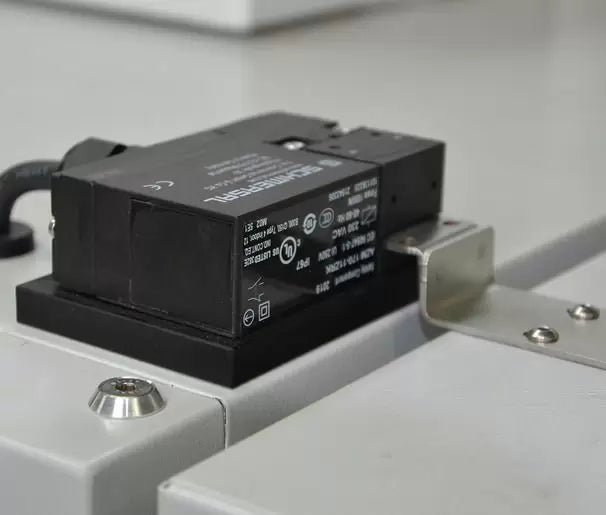

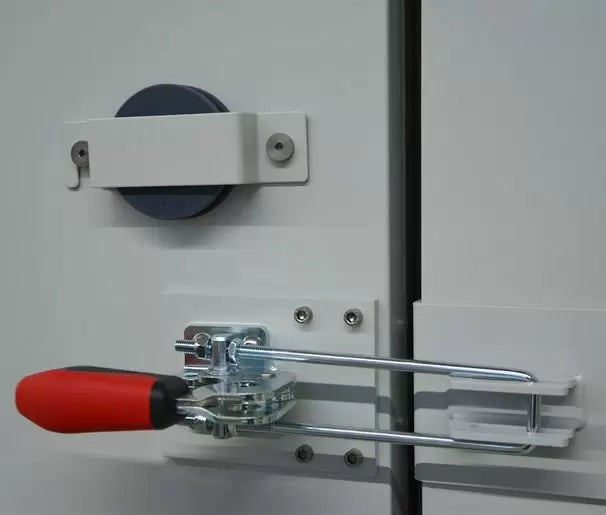

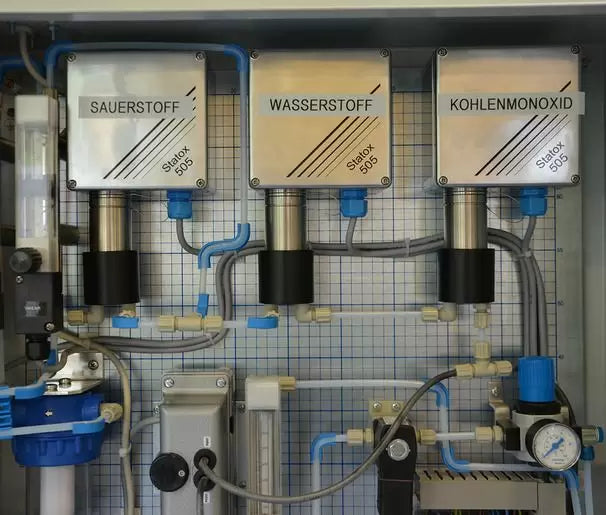

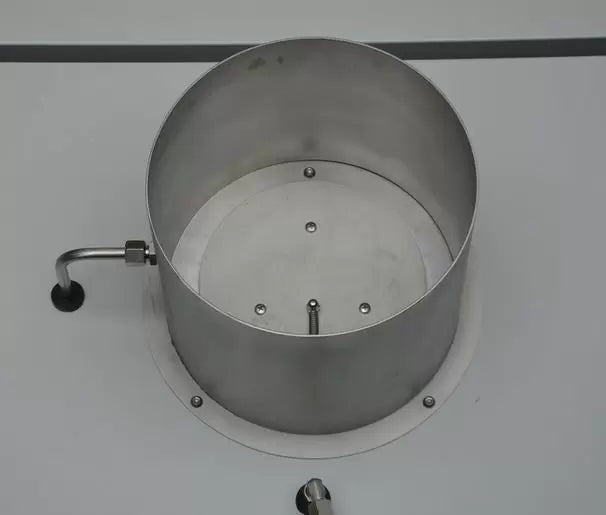

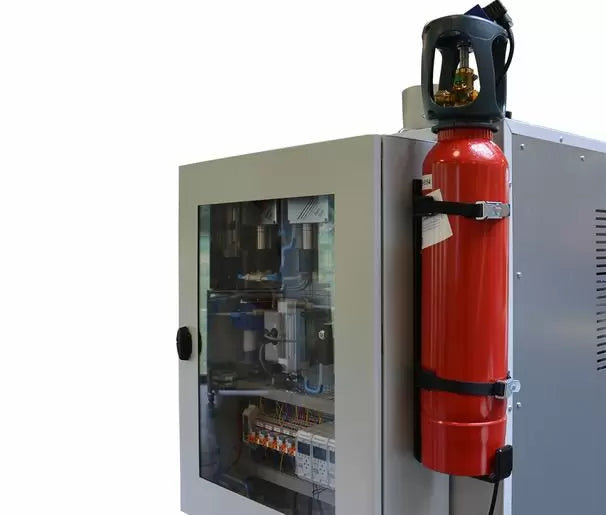

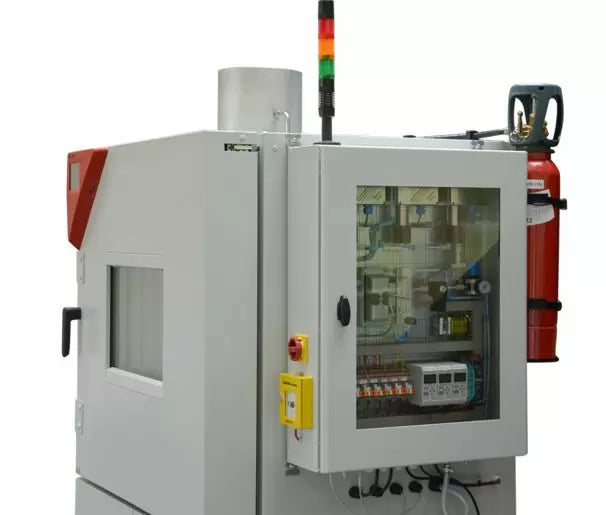

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.Line tm preheating chamber
  • Extensive programming and data collection
  • Excellent overview of the test object thanks to a large heated viewing window

Specifications
Performance Data Temperature
Designation

LITMK720-400V

LITMK720-480V-C

Temperature range -40...110 °C -40...110 °C
Temperature uniformity dependent on set value 0.3...2 ± K 0.3...2 ± K
Temperature fluctuation dependent on set value 0.1...0.5 ± K 0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-5 4 K/min 4 K/min
Cooling down time from 110°C to -40°C 100 min 100 min
Average cooling down time according to IEC 60068-3-5 3.4 K/min 3.4 K/min



Electrical Data

Designation

LITMK720-400V

LITMK720-480V-C

Rated Voltage 400 V 480 V
Power frequency 50 Hz 60 Hz
Nominal power 8,7 kW 8,7 kW
Unit fuse 16 A 16 A
Phase (Nominal voltage) 3~ 3~



Measures

Designation

LITMK720-400V

LITMK720-480V-C

Interior volume 25.92 cu.ft 25.92cu.ft
Net weight of the unit (empty) 1287.50 lbs 1287.50 lbs
Load per rack 88.18 lbs 88.18 lbs
Permitted load 352.74 lbs 352.74 lbs
Viewing window width 20.00 inch 20.00 inch
Viewing window height 11.81 inch 11.81 inch
Wall clearance back 11.81 inch 11.81 inch
Wall clearance sidewise 7.87 inch 7.87 inch

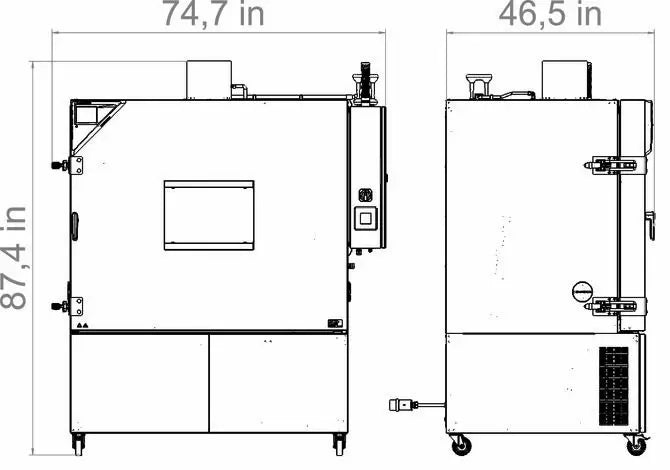

Housing dimensions not incl. fittings and connections

Designation

LITMK720-400V

LITMK720-480V-C

Width net 70.63 inch 70.63 inch
Height net 78.94 inch 78.94 inch
Depth net 46.69 inch 46.69 inch



Internal Dimensions

Designation

LITMK720-400V

LITMK720-480V-C

Interior width 47.24 inch 47.24 inch
Interior height 40.16 inch 40.16 inch
Interior depth 23.62 inch 23.62 inch
Unit doors 1 1



Environment-Specific Data

Designation

LITMK720-400V

LITMK720-480V-C

Sound-pressure level 65 dB(A) 67 dB(A)
Energy consumption at 20°C 1900 Wh/h 1900 Wh/h
