Across International Binder LIT MK 240 Battery Testing Chamber

Power Lab Supply 2SKU: Binder.MK24002
Delivery liftgate service: Please Select
Power option: 480V
Price:
$96,389.76 USD
Description
Overview

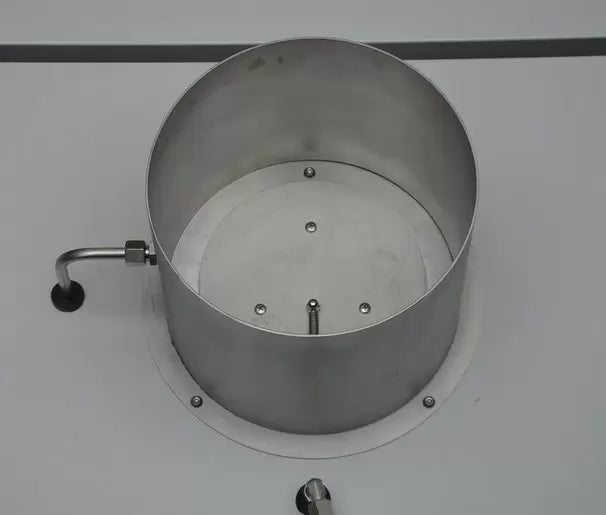

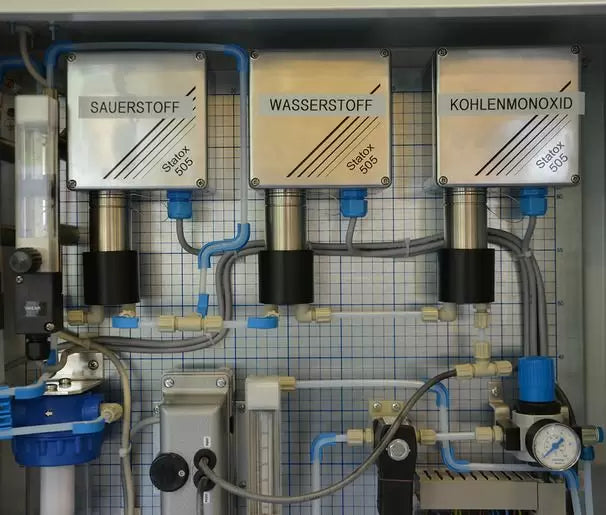

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.



Benefits

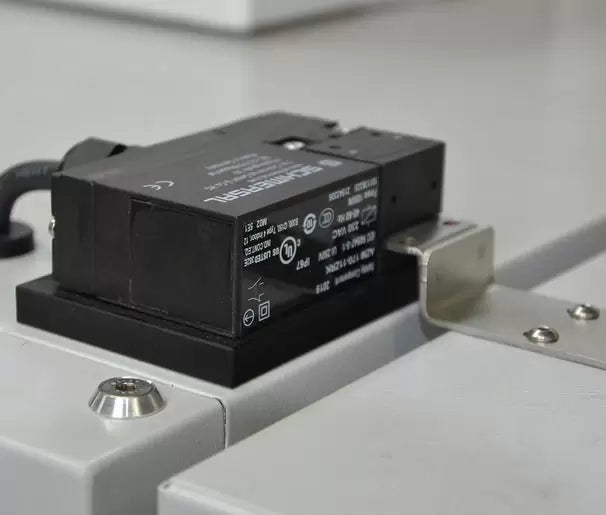

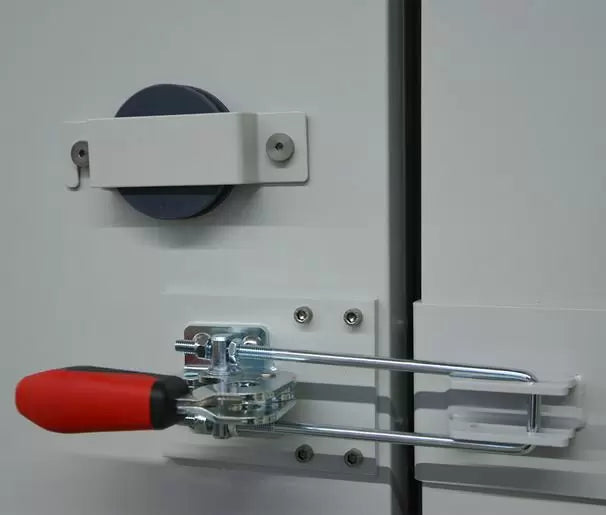

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.Line tm preheating chamber
  • Extensive programming and data collection
  • Excellent over view of the test object thanks to large heated viewing window

Specifications
Performance Data Temperature
Designation

LITMK240-400V

LIT MK240-480V-C
Temperature range -40...110 °C -40...110 °C
Temperature uniformity dependent on set value 0.1...0.5 ± K 0.1...0.5 ± K
Temperature fluctuation dependent on set value 0.1...0.5 ± K 0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-5 5 K/min 5 K/min
Cooling down time from 110°C to -40°C 160 min 160 min
Average cooling down time according to IEC 60068-3-5 3.5 K/min 3.5 K/min



Electrical Data

Designation

LITMK240-400V

LIT MK240-480V-C
Rated Voltage 400 V 480 V
Power frequency 50 Hz 60 Hz
Nominal power 5,6 kW 5,6 kW
Unit fuse 16 A 16 A
Phase (Nominal voltage) 3~ 3~



Measures

Designation

LITMK240-400V

LIT MK240-480V-C
Interior volume 228 L 228 L
Net weight of the unit (empty) 375 kg 375 kg
Load per rack 30 kg 30kg
Permitted load 70 kg 70 kg
Viewing window width 508 mm 508 mm
Viewing window height 300 mm 300 mm
Wall clearance back 300 mm 300 mm
Wall clearance sidewise 200 mm 200 mm



Housing dimensions not incl. fittings and connections

Designation

LITMK240-400V

LIT MK240-480V-C
Width net 1335 mm 1335 mm
Height net 1929 mm 1929 mm
Depth net 925 mm 925 mm



Internal Dimensions

Designation

LITMK240-400V

LIT MK240-480V-C
Interior width 735 mm 735 mm
Interior height 700 mm 700 mm
Interior depth 443 mm 443 mm
Unit doors 1 1



Environment-Specific Data

Designation

LITMK240-400V

LIT MK240-480V-C
Sound-pressure level 62 dB(A) 67 dB(A)
Energy consumption at 20°C 1300 Wh/h 1300 Wh/h
