New, shipping damage, unit has multiple dents and some paint rubbed off.
2023 Refurb (BE0GA0EBA00QGP180015)
3 Month Warranty
The new Ai 34 Cu Ft series RapidChill series -86C ultra-low freezers are now 50/60Hz compatible, meaning they can be used in US, as well as Asia, Europe and South America. These ultralow's are designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.
Features
- 50/60Hz compatible
- CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
- State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
- Safe, environmentally friendly, energy efficient, and easy-to-acquire HC refrigeration
- Remote alarm, RS-485, and optional 4-20mA transmitter

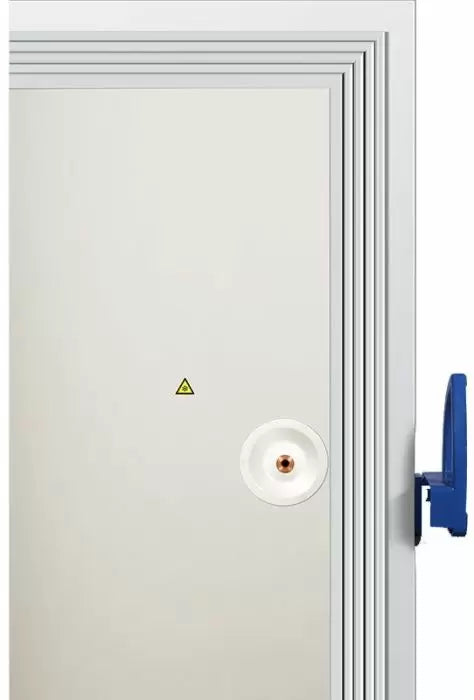

- Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit

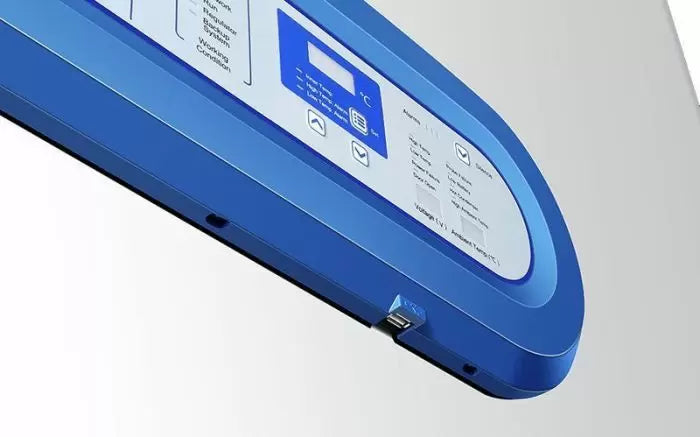

- Digital temperature display with microprocessor-based temperature controller
- Dual silicon sealing gaskets for ultra airtight operation
- 48-hour battery backup for controller and alarms
- Extremely quiet and reliable
- Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
Specifications
| Model |
G34he |
Electrical requirements
|
230V 50/60Hz. 1300 watts, 7 amps
|
| Performance |
Temperature range: -40℃ to -86℃
Time from ambient to -86℃: 6 hours
Uniformity: ±3 ℃
Time from -86℃ to -50℃ with the door closed (ambient 25℃): 5 hours
1 min door open recovery time (ambient 25℃, running temp -75℃): 40 mins
|
| Chamber |
Chamber dimensions: 40 x 28 x 51.5 inches
Shelf max. weight capacity: 126kg (278lbs)
Max. weight capacity of unit: 504kg (1111 lbs)

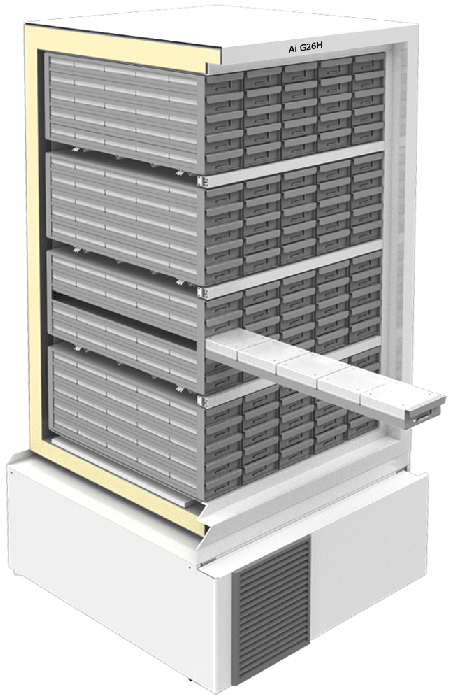

5x5x2" boxes capacity: 700 boxes
|
| Volume |
|

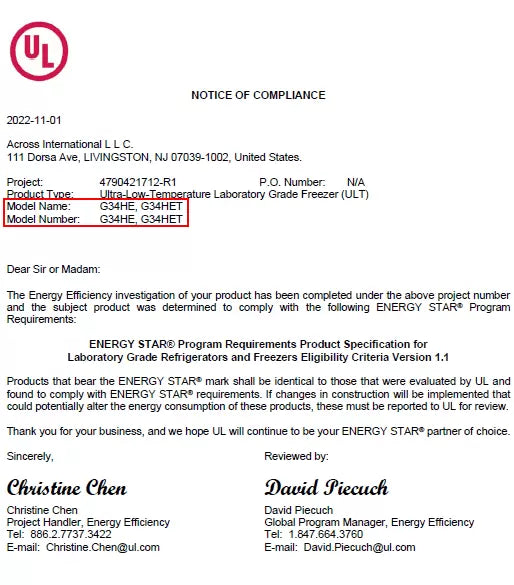

| Certificate |
|
| Information |
Eco-friendly HC refrigerant
Low noise 47 dBA
USB interface, RS485 port
Mobile casters
Optimized insulation with VIP technology
|
| Usage |
Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, comparing to Thermo TSX70086A's 0.36 kWh/day/cu-ft
|
| Working environment |
- Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C)
- Humidity: <80% Rh
- Altitude: < 2000 m / 6561 Ft
- Stable, well-ventilated platform with no excessive dust
- Keep freezer at least 12 inches from any walls or ceiling
- Use dedicated power, do not share outlet
- Extension power cable should be less than 10 feet is required
- Freezer and power outlet should be grounded properly
- Avoid direct sunlight, water spill and do NOT use freezer outdoor
- Clean condenser fins and remove frost inside chamber at least once a month
- Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
24 hours before turning the unit on for the first time.
|
Unit/shipping weight & dimensions
|
Unit: 990 Lbs, 51 x 39.5 x 78 inches
Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches
|
| Safety |
- High/low-temperature alarms
- Hot condenser alarm
- Power failure
- High/low voltage
- Sensor error
- Low battery
- High ambient temperature
- Door ajar
|
| Warranty |
2-year full service, 3-year parts, 5-year compressor
|
|
Standard Packages
|
Part description
|
Quantity
|
Part image
|
Ai G34he -86°C ultra-low upright freezer
|
1 pc
|
|
| Ice scraper |
1 pc |
|
Door key
|
2 pcs
|
|
| Brackets |
1 set |
|
| User's manual |
1 pc
|
|
|
