Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump

Power Lab Supply 2SKU: IDP-7-X3807-64000010

Delivery liftgate service: Please Select
Power option: 110V 50/60Hz
Pump accessory: Please Select
Price:
Sale price$6,007.68 USD
Description

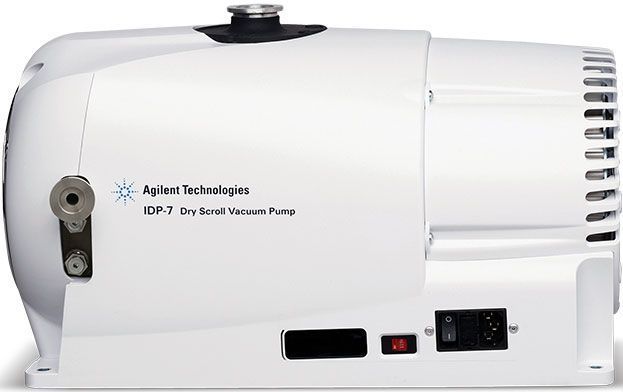

The new Agilent IDP-7 dry scroll pump is a compact, high performance, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance.

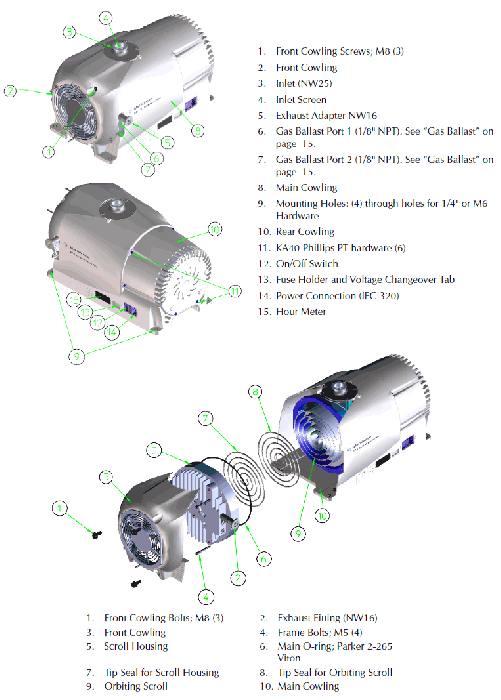

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.



Videos
Standard Packages

Standard package



 Part description

 Quantity

Part image

 Agilent IDP7 5.4 cfm scroll pump (X3807-64000) 1 pc

 KF25 flexible stainless steel vacuum bellow (3.3 ft) 1 pc
 KF25 wing nut flange quick clamp 2 pcs
 KF25 flange centering ring 2 pcs
 Agilent North America 15A/125V power cord (656458203) 1 pc
Sintered Filter Breather Vent 1 pc
Fuse 10 A 1 pc
IDP-7 Quick Start Card 1 pc
Safety Information Booklet 1 pc
