2L Stirring & Mixing Equipment Set

Power Lab Supply 2SKU: 2LSet22

Certification: Without magnetic stirrer hotplate (glassware & impeller only) - $550.00
Pump option: Ai P2A 2L/Min SST Peristaltic Pump
Price:
Sale price$2,878.08 USD
Description
flow-through recirculating configuration.



The bottom outlet of the glass vessel and the hose inlet in the cap of the Impeller Assembly makes it ideal for flow-through, recirculating applications, so a liquid pump will be needed whether used with the Industrial Sonomechanics LSP-600 system, BSP-1200 flow-through system to make smaller nanoemulsion batches (e.g. only 1 L at time), or another type of equipment.

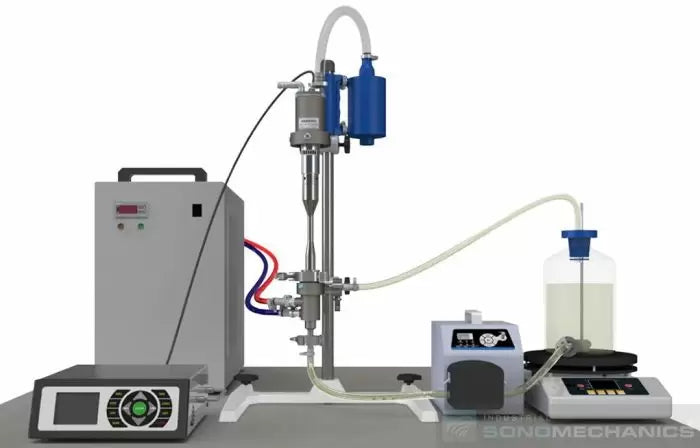

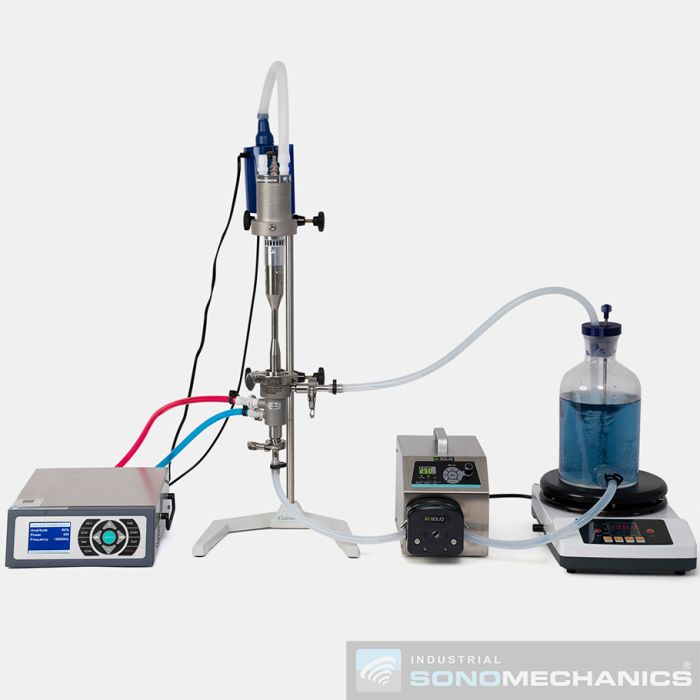

This 2 L Stirring/Mixing Equipment Set is typically used with the  (or , in some cases) ultrasonic processor configured in the flow-through mode to work with liquid volumes from about 500 ml to 2 L. It can also be used for general stirring and mixing applications, including:

  • Dispersing solids into liquids (e.g., mixing powders into water, dissolution, production of slurries and micro/nano-particle suspensions)
  • Liquid/liquid blending (e.g., emulsifying, mixing viscous liquids with each other)
  • Stirring multi-component liquids to maintain consistency during processing

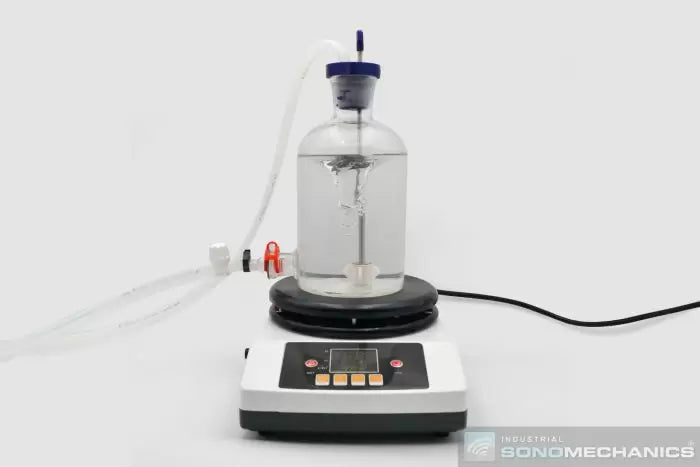

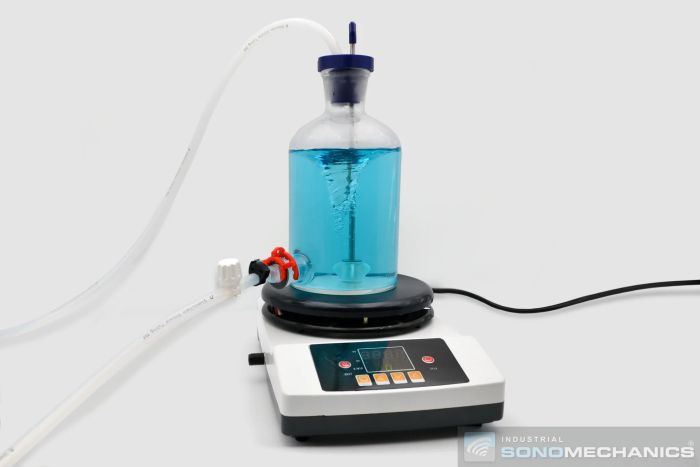

The 2 L Stirring/Mixing Equipment Set includes:

  •  with bottom outlet

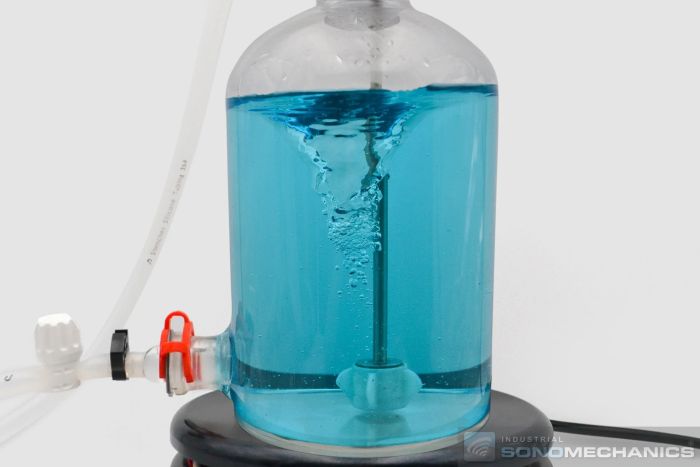

  • Magnetically driven  with hose inlet
  •  to drive the impeller



Lead time to shipping: 1 week.



FAQs

Q1. I already a magnetic stirrer. Can I purchase the storage/mixing vessel and impeller assembly separately?

Yes, but please note that not all magnetic stirrers will work correctly with these items. For best performance we recommend using this . Here are the links to the individual items:

  •



Q2. Can I use this vessel for a process other than nano-emulsification, such as extraction, dispersing or homogenization?

Yes. Please keep in mind, however, that this Equipment Set may not be suitable for viscous materials such as creams or pastes.

Q3. Can I use my own pump when using this equipment set in the flow-through mode?

Yes. With this Equipment Set, you are not restricted to any specific type of pump.

Q4. Do you have assembly instructions?

Yes. Please take a look a the below video.



2 L Storage/Mixing Vessel:

    • Supported volume: 500 - 2,000 ml
    • Height: 290 mm
    • Top opening diameter: 45 mm
    • Bottom diameter: 140 mm

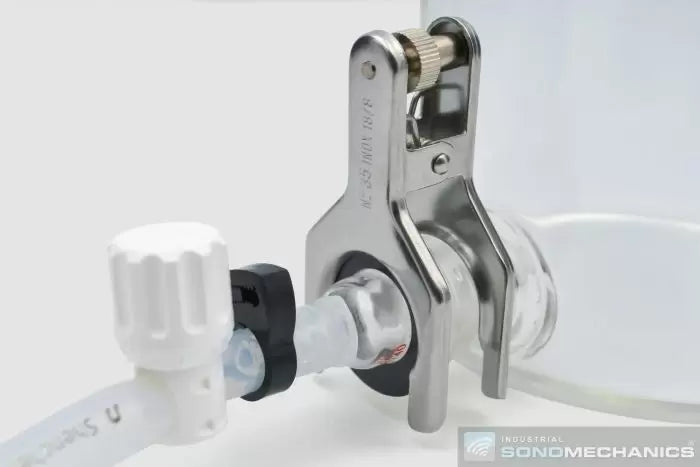

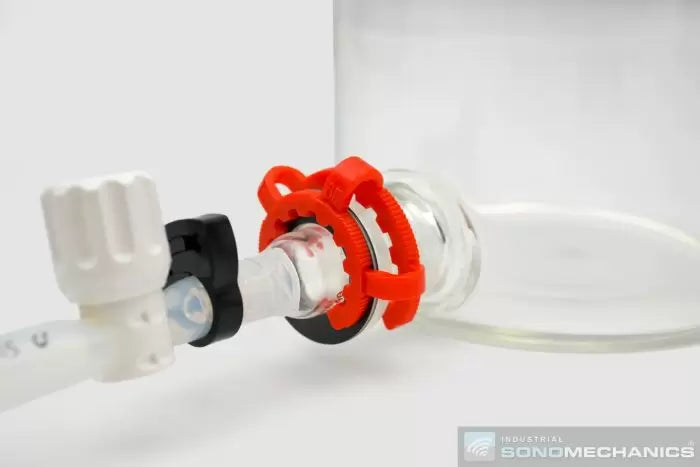

    • Bottom outlet: pinch-valved
    • Material: borosilicate glass



Impeller Assembly:

    • Height: 330 mm
    • Weight: 136.1 g
    • Cap material (blue): PETG
    • Cap hose inlet hole diameter: 14.5 mm
    • Shaft material: 316 SS
    • Impeller material (white): PVDF



Large-Capacity Magnetic Stirrer with Hotplate:

    • Hotplate diameter: 9"
    • Temperature range: ambient to 350 °C
    • Stirring speed range: 50 - 2000 rpm
    • External thermocouple: PT100-type with 35" cable
    • PTFE-coated stir bar
    • Electrical requirements: 110 V 60 Hz, 1-Phase, 750 W
    • Hotplate material: ceramic-coated aluminum
    • Dimensions: 9" x 14.5" x 4.5"
