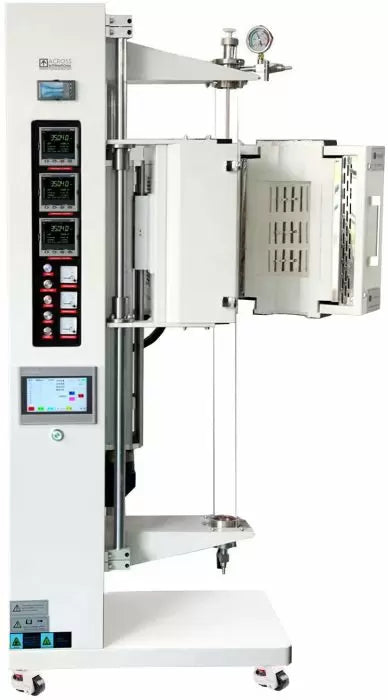

Ai CGF1200F series Crystal Growth Furnaces come with swing-open chamber, it also features the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.
Furnace operation is controlled by high precision 50-segment Eurotherm 3504 (UK), allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Ā
Features
- Swing-open furnace chamber for fast and easy tube access
- Digital multi-segment automatic hoisting control
- High precision Eurotherm 3504 PID controller provides optimum thermal process with minimal overshoot
- Built-in computer interface
- Durable type K thermocouple
- Additional thermocouple and Eurotherm temperature display
Ā
Safety
- Automatic hoisting limit switch
- Overheat protection shuts down the furnace if the temperature is outside of the acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Ā
Warning! NEVER fill the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.
Ā
|
Model |
CGF3.1200F.60-100 |
|
Electrical requirements |
208-240VAC, 50/60 Hz, Single Phase, 4.5KW, 21A |
|
Tube |
Quartz |
|
Maximum working temperature |
1200Ā°C (2 hours maximum continuous run time) |
|
Constant working temperature |
1100Ā°C |
|
Constant working temperature under vacuum |
1000Ā°C |
|
Rated vacuum pressure |
0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
|
Rated positive pressure |
0.02 MPa / 150 torr / 3 psi |
|
Heating element type |
Kanthal (Sweden) A1 2.0 resistance coil wire |
|
Thermocouple type |
K |
|
Refractory lining |
Mitsubishi (Japan) high quality 1500 grade fiber alumina |
|
Temperature controller |
Eurotherm 3504 |
|
Maximum heating rate |
< 30Ā°C / minute |
|
Heating zone length |
5.9ā + 5.9ā + 5.9ā |
|
Constant temperature zone length |
13.8ā |
|
Temperature controller precision |
Ā± 1Ā°C |
|
Vacuum sealing flange kit |
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread) |
|
Automatic hoisting control |
0.1-2000 um/second 0-100 mm range Built-in limit switch Multi-segment settings (each segment has its own time/speed) |
|
Gas inlet/outlet |
1/4" hose barb |
|
Unit dimensions |
38 xĀ 18 xĀ 70" (LxWxH) |
|
Unit weight |
400 lbs |
|
Shipping weight |
556 Ibs |
|
Shipping dimensions |
46 x 26 x 80ā (LxWxH) |
|
Compliance |
CE |
|
Warranty |
1 year |
|
Part description |
QuantityĀ |
Part image |
| Ā CGF1200F.60-100 Crystal Growth Tube Furnace |
1 pc |
|
| Ā Quartz tube |
1 pc | |
| Ā Stainless steel sealing flanges | 1 set | |
| Ā Quartz tube blocks |
1 set | |
| Ā Thermal gloves | 1 pair |
|
| Ā Spare fuse | 2 pcs |
|
| Allen Keys | 1 pc |
|
| 25A UL Fuse | 1 pc |
|
| 4A UL Fuse |
1 pc |
|
| Ā Furnace and Eurotherm controller manual | 2 pcs |
|
| Eurotherm USB kit & CD |
1 pc |
