BVV 90G XL Mini Top Fill Closed Loop Extractor

Power Lab Supply 1SKU: MINIXL-V1
No reviews

Select Configuration: Explorer
Price:
Sale price$405.90 USD
Description

***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.


DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors Closed Loop Reclamation Extraction System (Comes with 1 yr. Limited warranty)



90G XL Mini Top Fill Closed Loop Extractor

(System comes with 1 yr. limited warranty)


The MiniXL Extractor is an excellent choice for small personal runs or test runs of material and comes in a small tabletop design that is easy to use.

Mini CLS / Mini XL Upgrades:

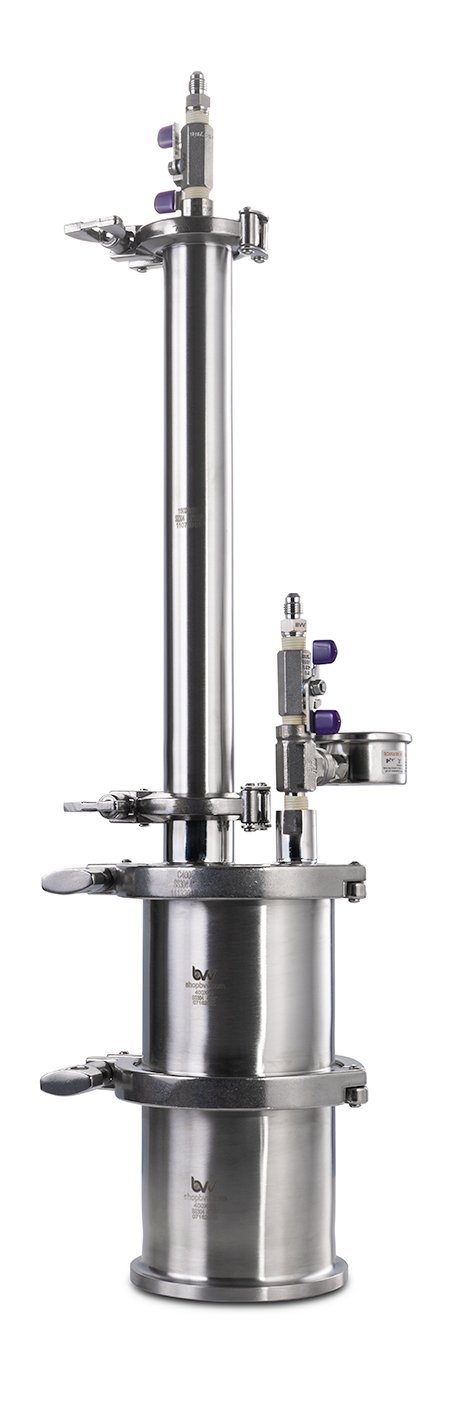

Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget.  Comes with a welded bottom base and stainless reclaim container.  This model has minimal features to keep cost low while providing the necessary equipment to get the job done.

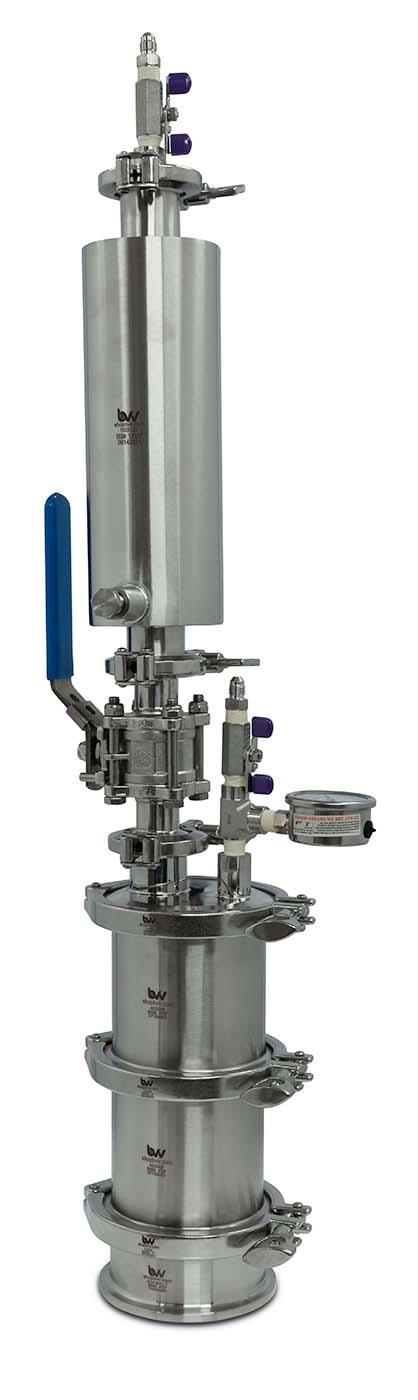

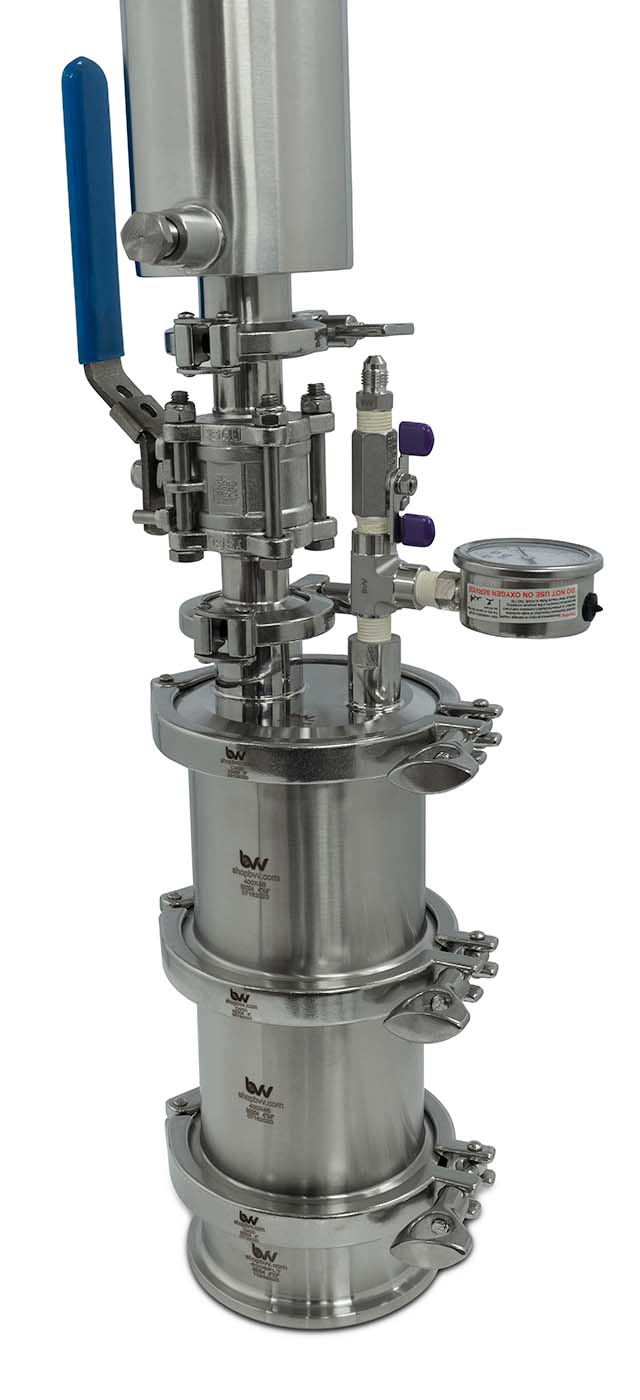

Professional: This model features upgrades to help produce a higher quality extract.  Coming with a sleeved spool, this model allows users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery.  Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.



Explorer Professional
  • Standard Valves
  • Welded Bottom Base
  • Standard Valves
  • Dewaxer
  • Ball Valve
  • Splatter Platter Base





Specifications:

  • 1.5"x 12" 304 Stainless Steel Material Tube 90g
  • 304 Stainless Steel Heavy Duty Miniature Ball Valves
  • System Rated to 100PSI
  • Multiple port connections for 1/4" 316 Stainless SAE 37 Degree
  • 304 Stainless Steel Base Container 4" diameter by 8" tall
  • Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
  • Buna-N Gaskets are designed for Oil Processing Temp range -40-200F
  • Dimensions (Inches): 16" Overall Height x 4" Diameter
  • Weight: 18 lbs.
  • Operating Temperature Range: -40F to 160F
  • Ultimate Vacuum: as low as 10 Microns
  • Designed to run a single can of solvent and reclaim it (350ml) Max FILL!!
  • Construction: All components made of 304 Stainless Steel.
  • Max Vacuum -29.9inHg
  • High Polish Interior

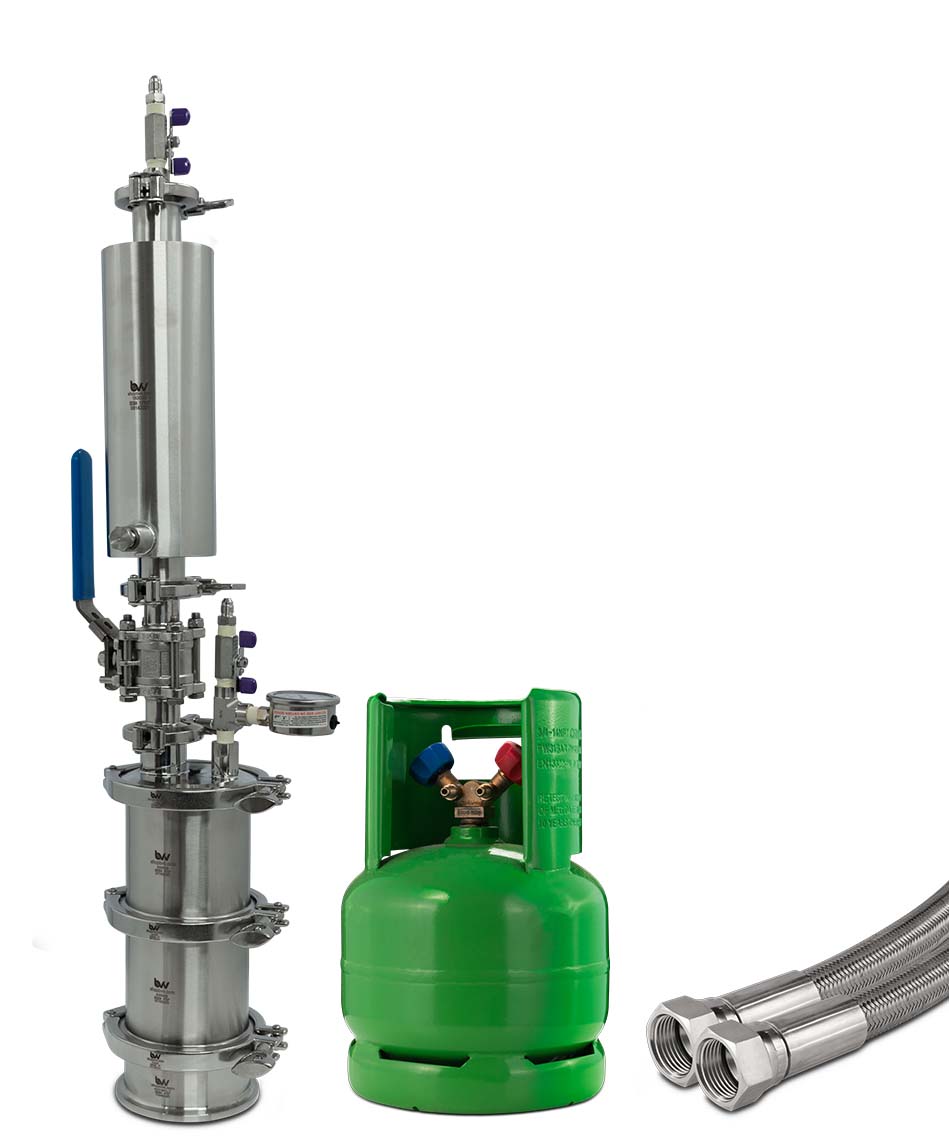

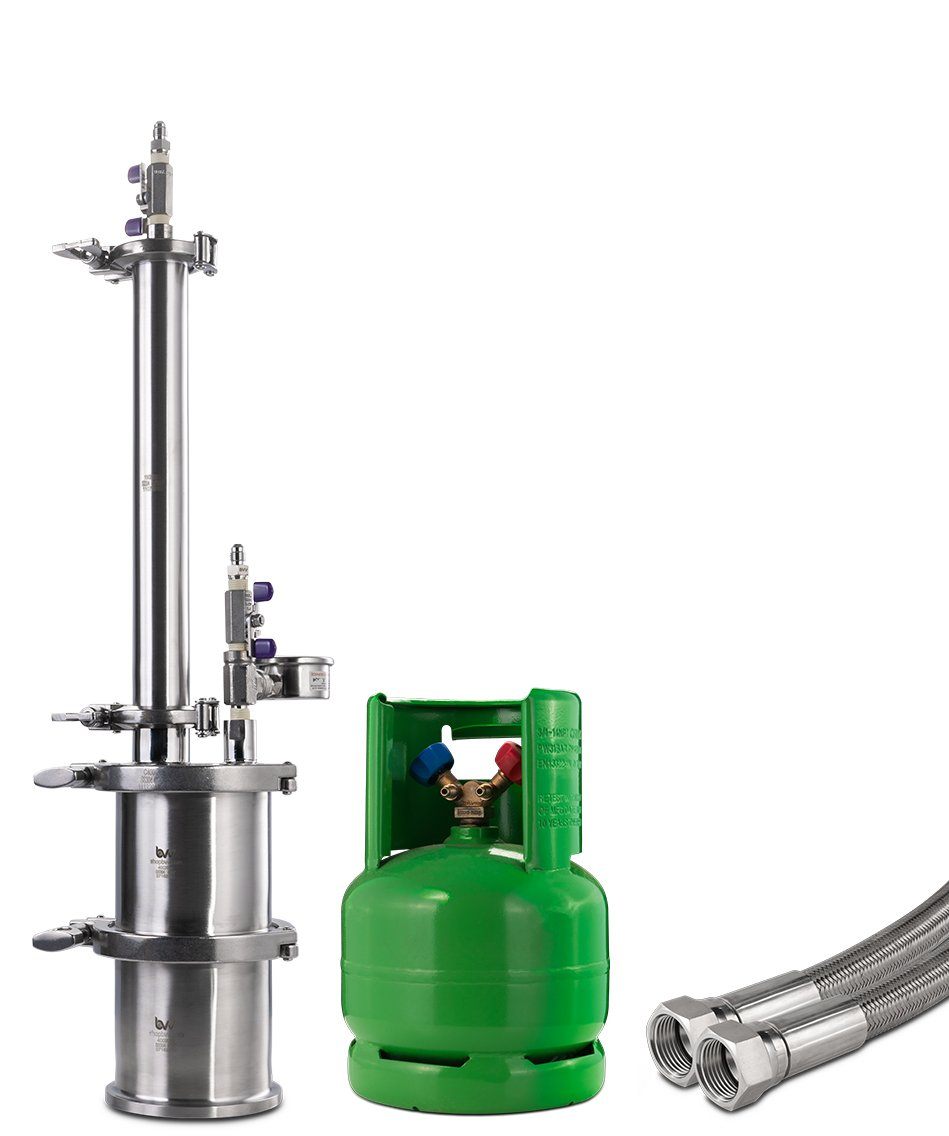

Automatically Includes:

  • High-Pressure PTFE Braided Stainless Steel Hose
  • Can Tap Tool

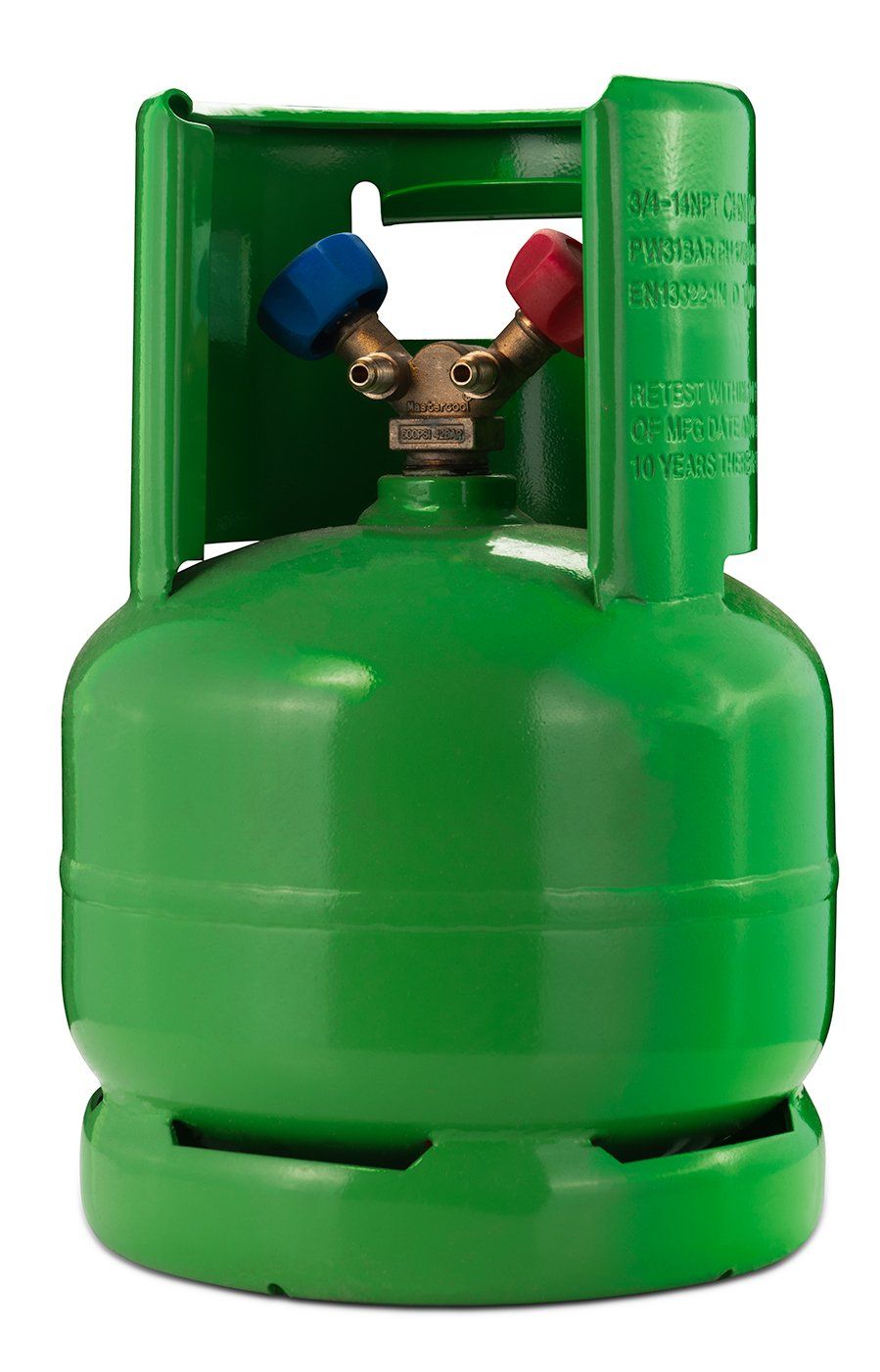

  • 6LB Mastercool Solvent Recovery Tank




*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.



Cylinder Volume


Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =

Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material
