Across International 8mm Diameter ID Hardened Steel Dry Pressing Die Set

Save $6.18 USD
No reviews

Price:
Sale price$302.82 USD Regular price$309.00 USD
Description

A set of 8mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 8mm diameter cylinder-shape pellets.

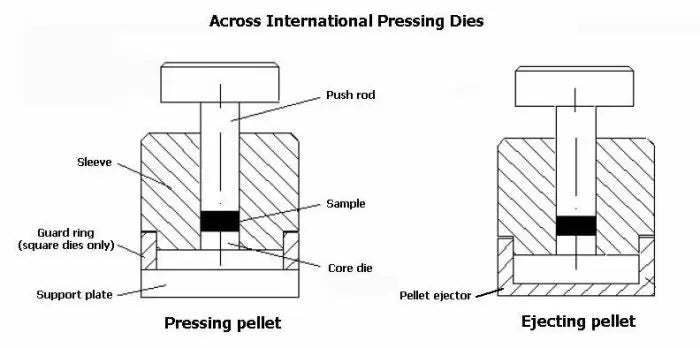

Die set includes

  • Three 8mm OD cylinderical core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • Two push rod
  • One pellet ejector
  • One aluminum case

CAUTION

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 8 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Specifications
  • Maximum Pressure:      8 tons
  • Rockwell Hardness:       Rc 62
  • Diameter (ID):              8 mm
  • Height:                         69 mm (assembled without sample)
  • Sleeve Height:              39 mm
  • Sleeve Diameter (OD):  30 mm
  • Tolerance:                    0.01-0.02 mm (10-20 micron)
  • Material:                      W18Cr4V hardened carbon tool steel
  • Max sample fill height:   Not to exceed 1/3 of the sleeve height

Die set includes

  • Two 8mm OD cylinderical core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector
  • One aluminum case

CAUTION

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 8 tons. Across International is not responsible for any damage caused by misuse.
