Description
A set of 6mm diameter (ID) hardened steel dry vacuum pressing die set for pellet presses, ready for you to make 6mm diameter cylinder-shape pellets in a vacuum condition.
Â

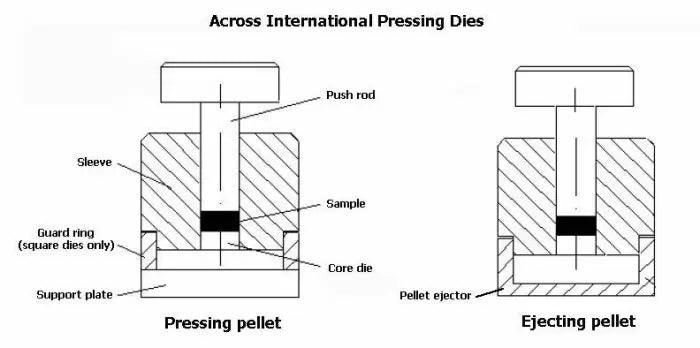

Die set includes
- Three 6mm ID core dies made of highly polished hardened steel
- One sleeve
- One base with 1/4" hose barb vacuum connection
- Two push rods
- Silicon sealing o-rings
- One pellet ejector
- One transparent protection shield
Â
Important
- Always wear protection goggles and gear during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 4 tons. Across International is not responsible for any damage caused by misuse.
| Maximum Pressure | 4 tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 6 mm |
| Sleeve Height | 30 mm |
| Sleeve Diameter (OD) | 30 mm |
| Height | 60 mm (assembled without sample) |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
|
Material |
W18Cr4V hardened carbon tool steel |
| Max sample fill height |
Not to exceed 1/3 of the sleeve height |
