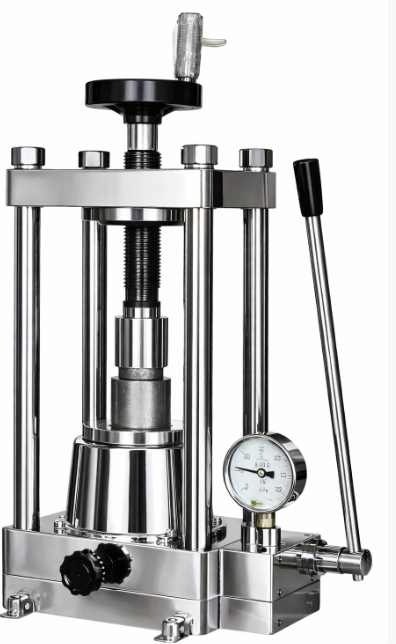

MP60A desktop manual pellet presses can press up to 60 metric tons. It is frequently used in materials and chemistry research laboratories to prepare compound samples. It has built in hydraulic pumpwith auto return function. Great for operation in a glove-box under oxidizing and inert gas atmosphere as well.
Caution: always wear protective goggles during operation!
Â
|
Model |
MP-60A |
|
Maximum Rated Working Pressure |
60 tons (600 kN) |
|
Maximum System Pressure |
40 MPa (400 kgf/cm²) |
|
Piston Diameter |
Ø139 mm |
|
Maximum Piston Stroke |
0–50 mm |
|
Pressure Stability |
≤ 1 MPa / 10 min |
|
Motion Mode |
Rapid pre-pressing |
|
Working Mode |
Variable-diameter oil cylinder |
|
Working Table Diameter |
150 mm |
|
Working Space |
225 × 225 × 300 mm |
|
Overall Dimensions |
450 × 260 × 650 mm |
|
 Part description     |
   Quantity   |
  Part image  |
| Â MP60A pellet press | Â 1 pc |
|
| Â Oil tin |
 1 pc |
|
| Â Hex L-key |
 2 pcs |
|
| Â Double open-end wrench |
 3 pcs |
|
| Â Sealing o-ring |
 4 pc |
|
|  Operation manual                                     |
 1 pc |
|
