Across International 4x1000ml Gear-Drive 4-Liter Planetary Ball Mill

Power Lab Supply 2SKU: PQN4001
No reviews

Certification: Please Select
Delivery liftgate service: Please Select
Power option: 110V 50/60Hz
Sale price$5,750.40 USD

PQ-N4 series planetary ball mills may be used for mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, small volume high-tech material production and even colloidal grinding. They are the ideal wet/dry milling tools for acquiring research samples with high efficiency and low noise. Vacuum jars may be used to process sample within a vacuum environment.

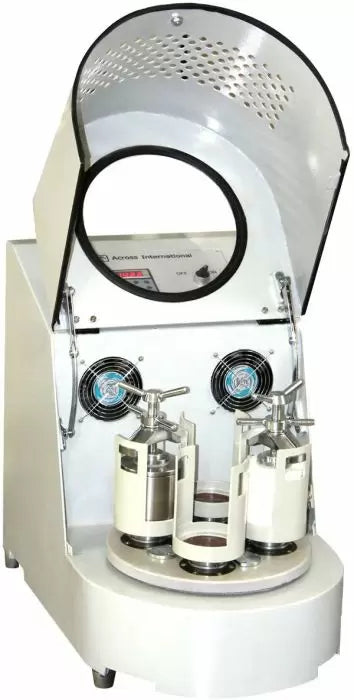

PQ-N4 planetary ball mills have four shredding stations arranged on the "Sun Wheel" of the planetary ball mill. When the Sun Wheel rotates, the shredding balls inside the jars are subject to superimposed rotational movements, known as Coriolis Forces. The difference in speeds between the shredding balls and jars produce an interaction between frictional and impact forces, which release high dynamic energies. Minimum granularity of the final product can be as small as 0.1 micron.

A timer controls running time from 1 to 999 minutes; it also controls jars' direction of rotation and intervals. We offer various sizes of shredding jars and shredding balls in different materials in our ball mill accessories section. Depending on your application, the material your shredding media is made from may be imperative to achieving accurate results.



shredding methods

  • Single direction without timing (samples need long or non-stop milling)
  • Single direction with timing (samples need to be milled in one direction for a designated amount of time before automatic shutdown)
  • Bi-direction with timing (samples need to run clockwise for 1.5 hours, then counter-clockwise for another 1.5 hours and so on, for 15 total hours, before the machine shuts down itself)
  • Single direction with paused interval and timing (i.e. samples need to run for 0.5 hour, then pause for 1 hour, then run for another 0.5 hour in same direction and pause for another 1 hour, for 10 cycles before auto shutdown)
  • Bi-direction with paused interval and timing (samples need to run clockwise for 0.8 hour, pause for 0.5 hour, then run counter-clockwise for 0.8 hour, for 20 cycles, before auto shutdown)


  • High uniformity and excellent repeatability
  • Fast rotational speed, high efficiency and fine granularity
  • Four samples with different sizes and materials in one experiment
  • Leak-proof jars for wet shredding for purchase
  • Large range of materials available for shredding media

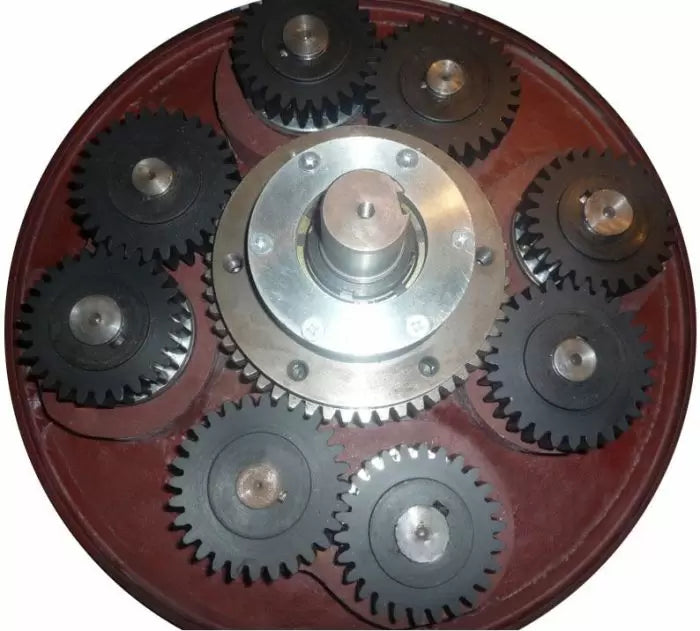

  • Gear-drive offers an effective solutions to problems caused by belt driving, such as belt creep and belt abrasion
  • Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation
  • Adjustable height
  • Safety switch ensures automatic shut down if cover is opened during operation



Achieving the desired particles via ball mill is a research project. The project depends on the material, shredding time, speed, and combination of shredding jar and quantity/size of milling ball. It is your responsibility to find the best milling procedure based on your material. Across International offers paid sample testing prior purchase.

Please be advised that the paid sample testing is implemented to establish a general base line for the experimental procedure. Depending on the present conditions that are applied to the unit, the results may vary if the process is repeated elsewhere.


1. Except stainless steel jars, all other jars must use stainless steel vacuum jackets when used in vacuum condition.
2. Vacuum jars or jackets must be operated with a vacuum pump which sold separately.



 Electrical requirements
 110V or 220V 50/60Hz single phase, 2200 watts
 Compatible non-vacuum jars
 1000ml x 4
 Compatible vacuum jars  500ml x 4
 Operation mode
 Two or four shredding jars working simultaneously
 Maximum feeding capacity
 2/3 capacity of the shredding jars
 Feeding granularity
¬†Soil materials ‚ȧ 10mm, others materials ‚ȧ 3mm
 (If the sample feed is larger than these then it must
  first undergo preliminary size reduction)
 Discharging granularity
 Down to 0.1 micron
 Maximum continuous operating time

 72 hours

 Planetary jar rotation speed
 320 rpm
 Unit dimensions
 31 x 18 x 27" (DxWxH)
 Shipping dimensions
 41 x 23 x 32" (LxWxH)
 Shipping weight
 360 Lb

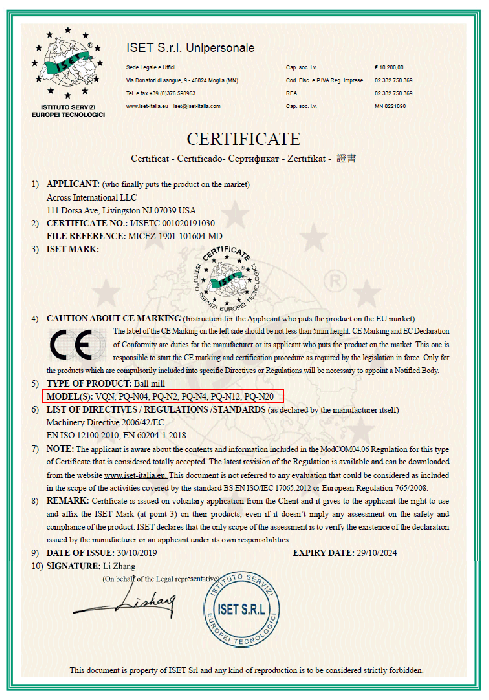

 Compliance  CE
Standard Packages
Standard package



Part description






Part image


 PQ-N4 4 x 1000ml ball mill
 1 pc

 Jar clamping device
 4 pcs

 Tightening tubing  2 pcs

 Stainless steel sieve
 1 pc

 Rubber jar cushion
 4 pc

 Spare motor belt
 2 pcs

 Hex L-key
 3 pcs

 Spare fuse (pre-installed)
1 pc

 110V or 220 V US power cord
1 pc

 Operation manual  1 pc
