Description

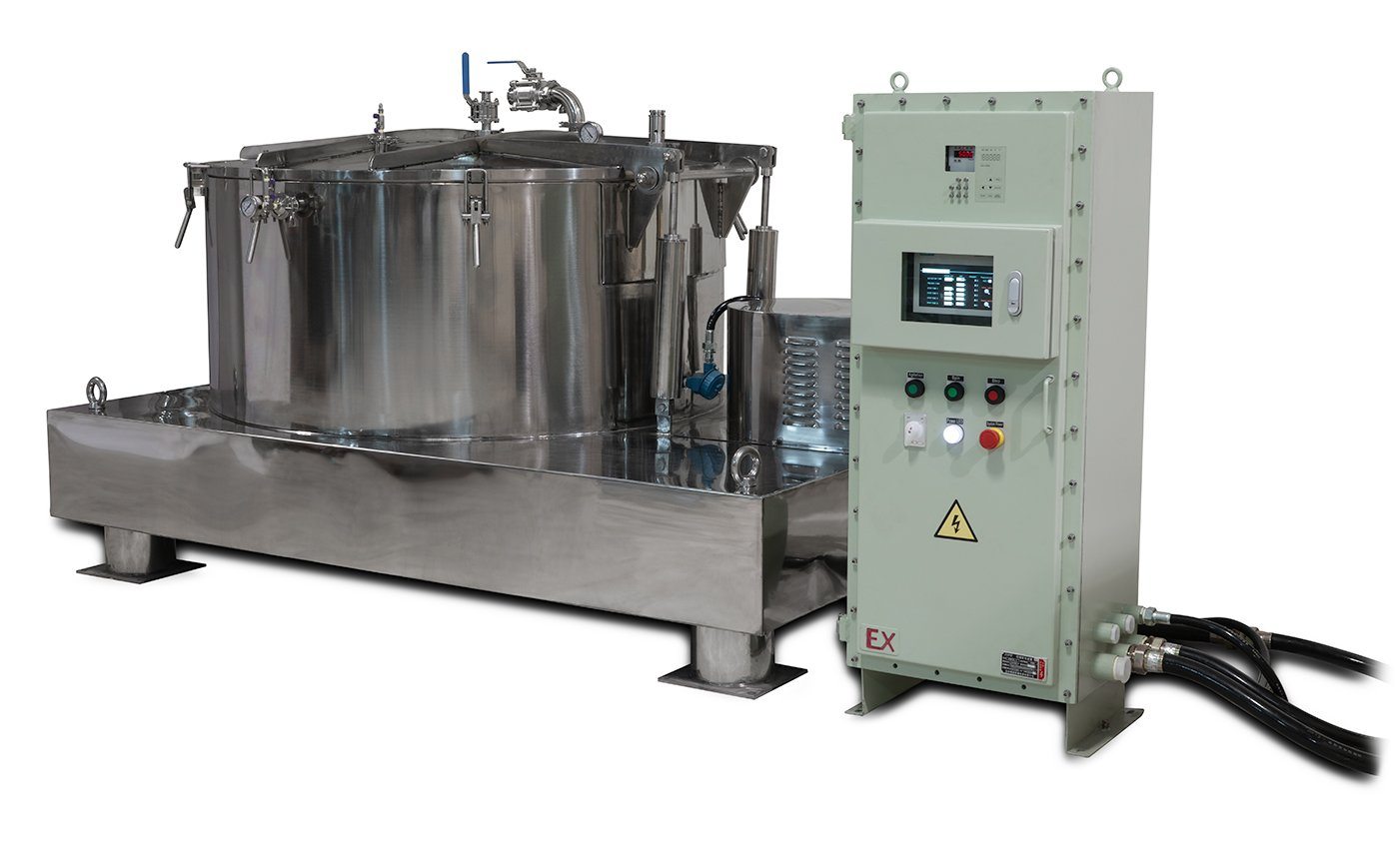

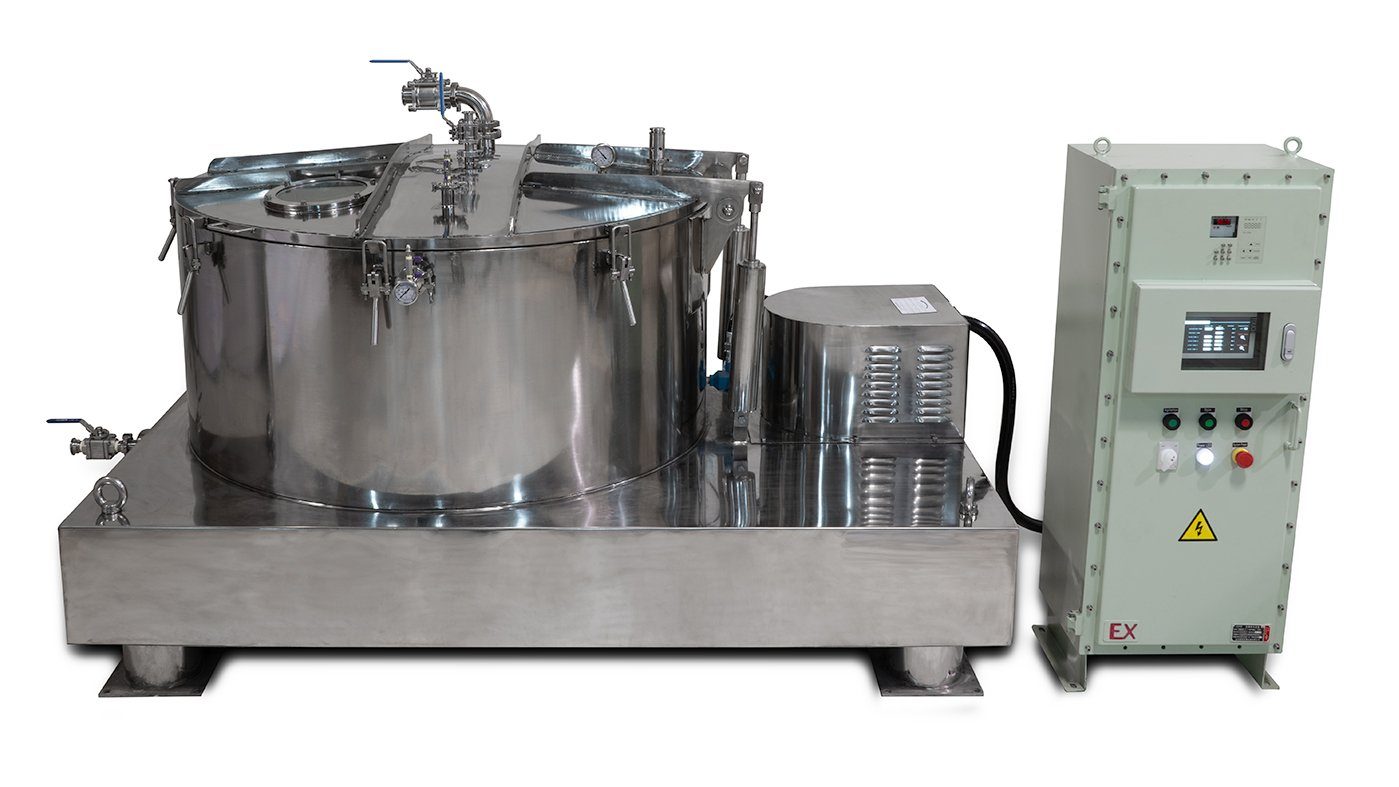

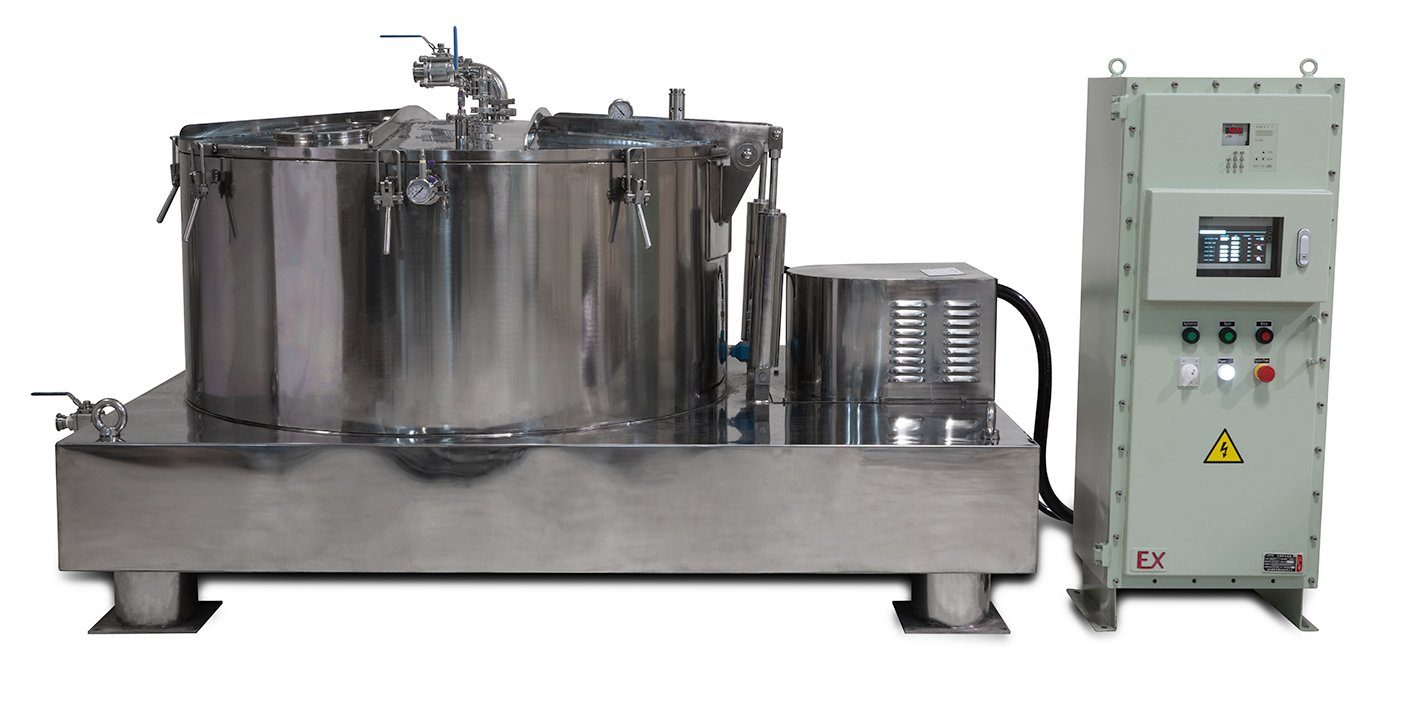

475L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller
Â
Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift with a 6000lb+ rating to lift it.Â
Â
Due to the size and weight of this item a custom freight quote will be required. If purchased, BVV will contact the customer to provide shipping options and their price. Confirming logistics will require a 2-3 week lead time.
Â
 Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Key Features:

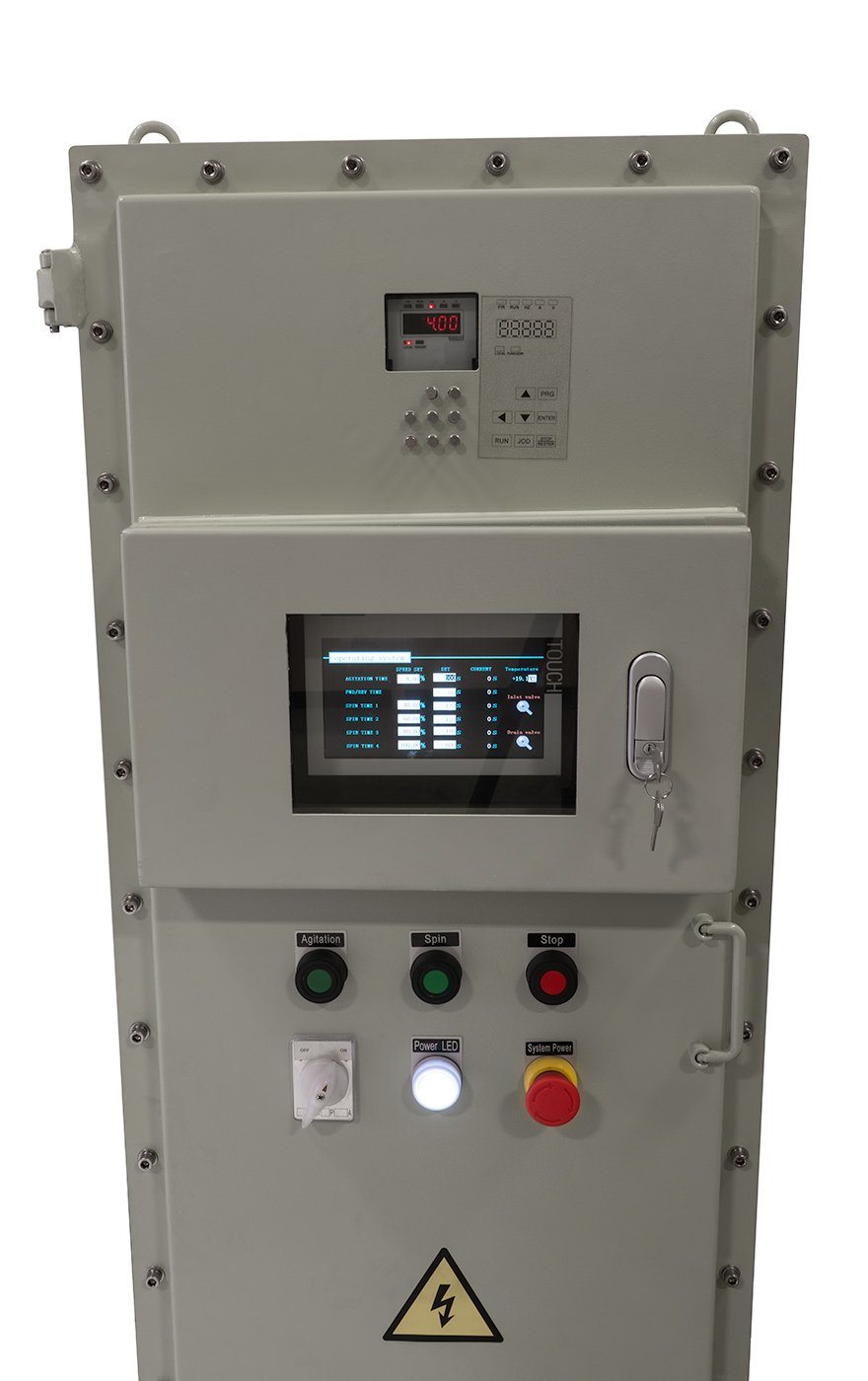

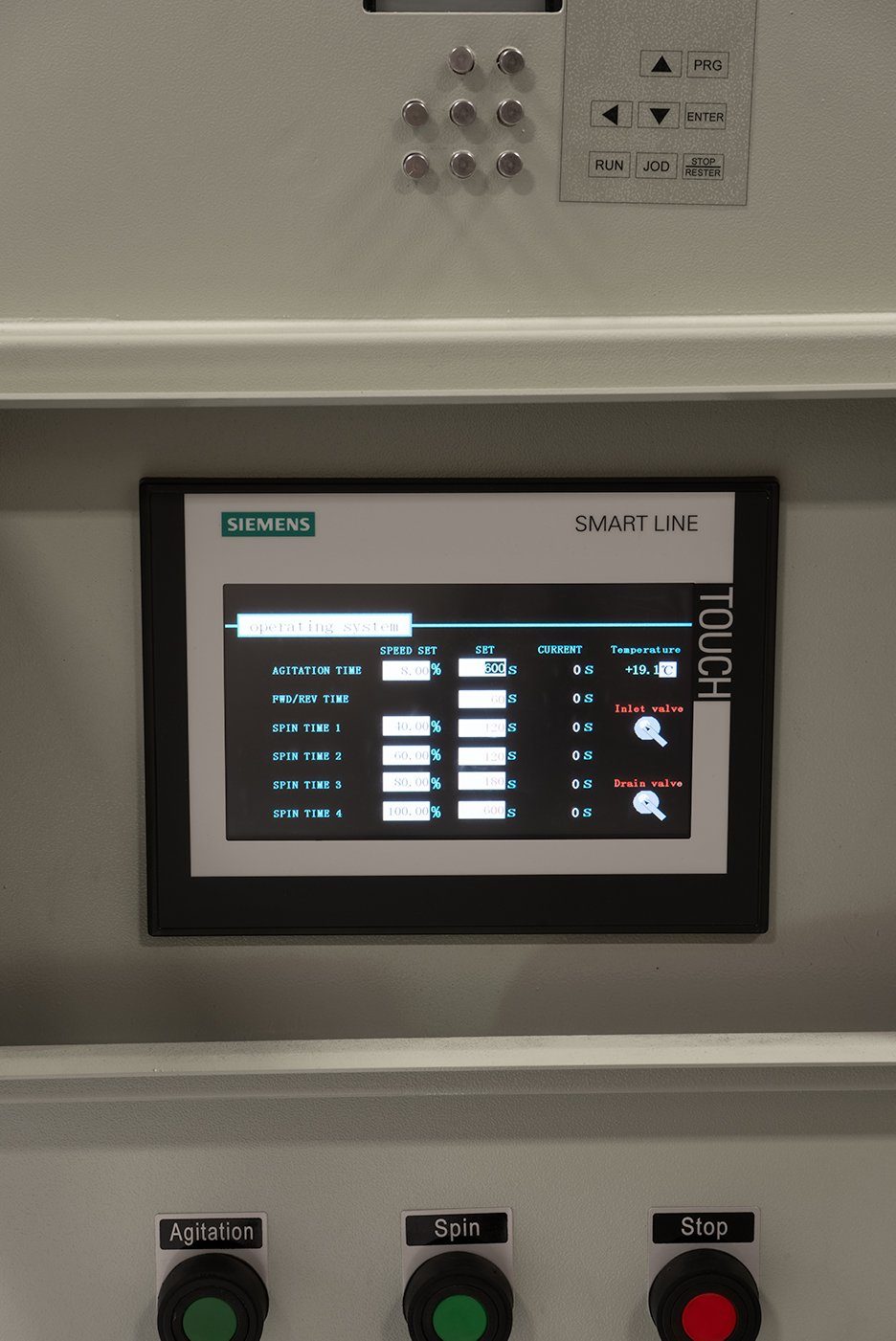

- Siemens Touch Screen Controller
- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 800 RPM with Gradual Speed Stepping
- 430Â Separation Factor
- Multiple Connection Ports/Sizes.
- High Polish Stainless Steel Components
- Shock absorbing legs
- Vacuum Jacket with Two 1.5" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
| Specifications | |
|---|---|
| Capacity | 475L |

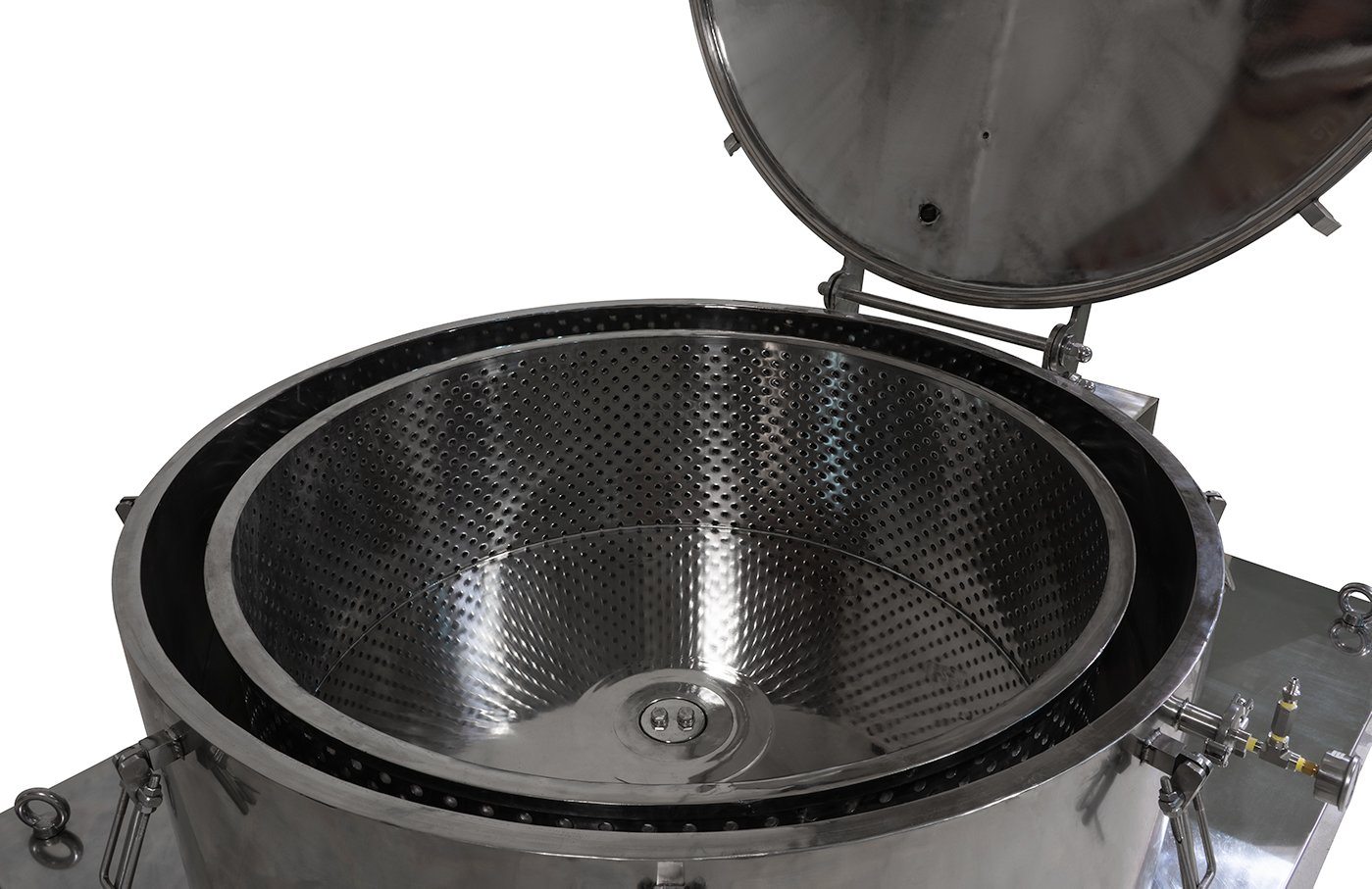

| Drum Dimensions | 47.24" (1200mm) Diameter x 16-3/4" (425mm) Deep |
| Max Capacity | 440lbs (200Kg) |
| Speed | 800 rpm |
| Separation Factor | 430 |
| Electrical |
240V 3Ø |
| Weight | 5600lbs (2540Kg) |
| Exterior Dimensions | 85" x 65" x 49" (2150mm x 1650mm x 1250mm) |
| Viewport Diameter | Dual 9"Â Viewing Ports |

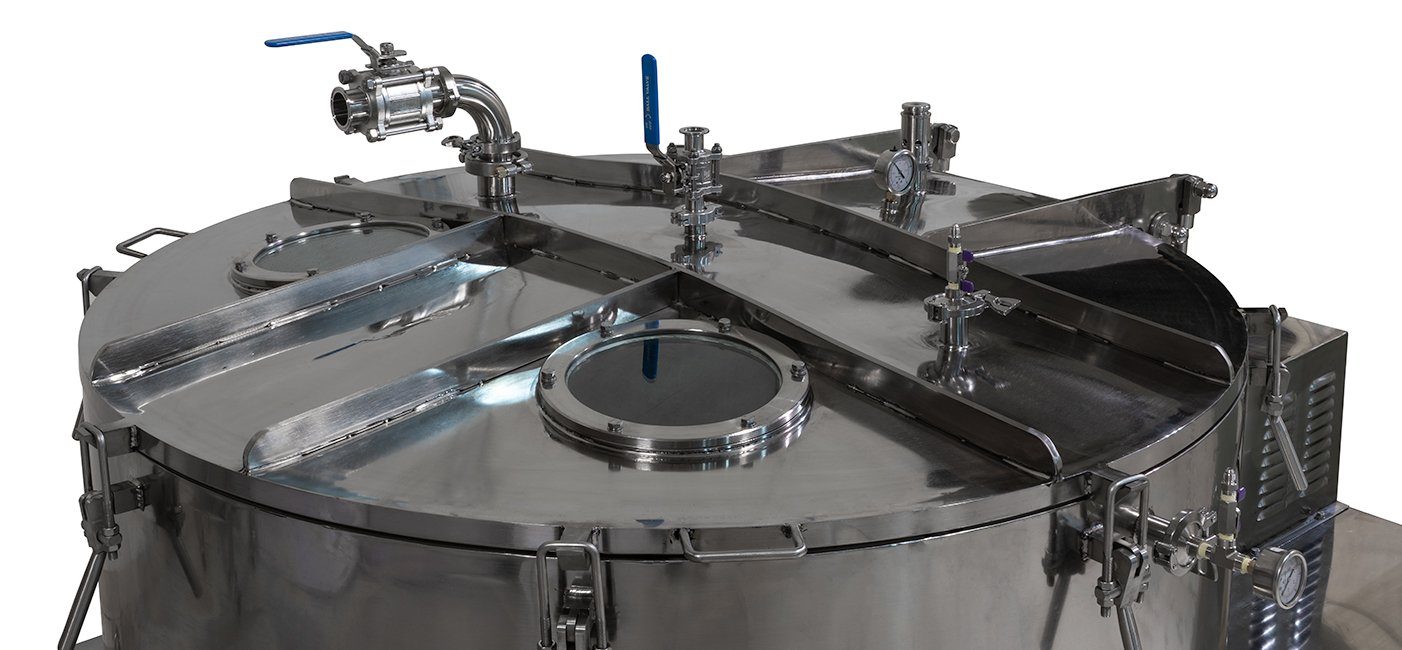

| Connection Size(s): | 4" Tri-Clamp Drain Port |
| 1.5" Tri-clamp Jacket Port x 2 | |
| 1.5" / 2.5" Tri-Clamp Top Ports | |
| 1/4" FNPT Top Port | |
| KF25 Top Port | |
