BVV 37 Degree MJIC X MNPT

Power Lab Supply 1SKU: BVVMJICMNPT04
No reviews

Size: 1/4" JIC x 1/4" MNPT
Pre-Taped: No
Price:
Sale price$14.85 USD
Description

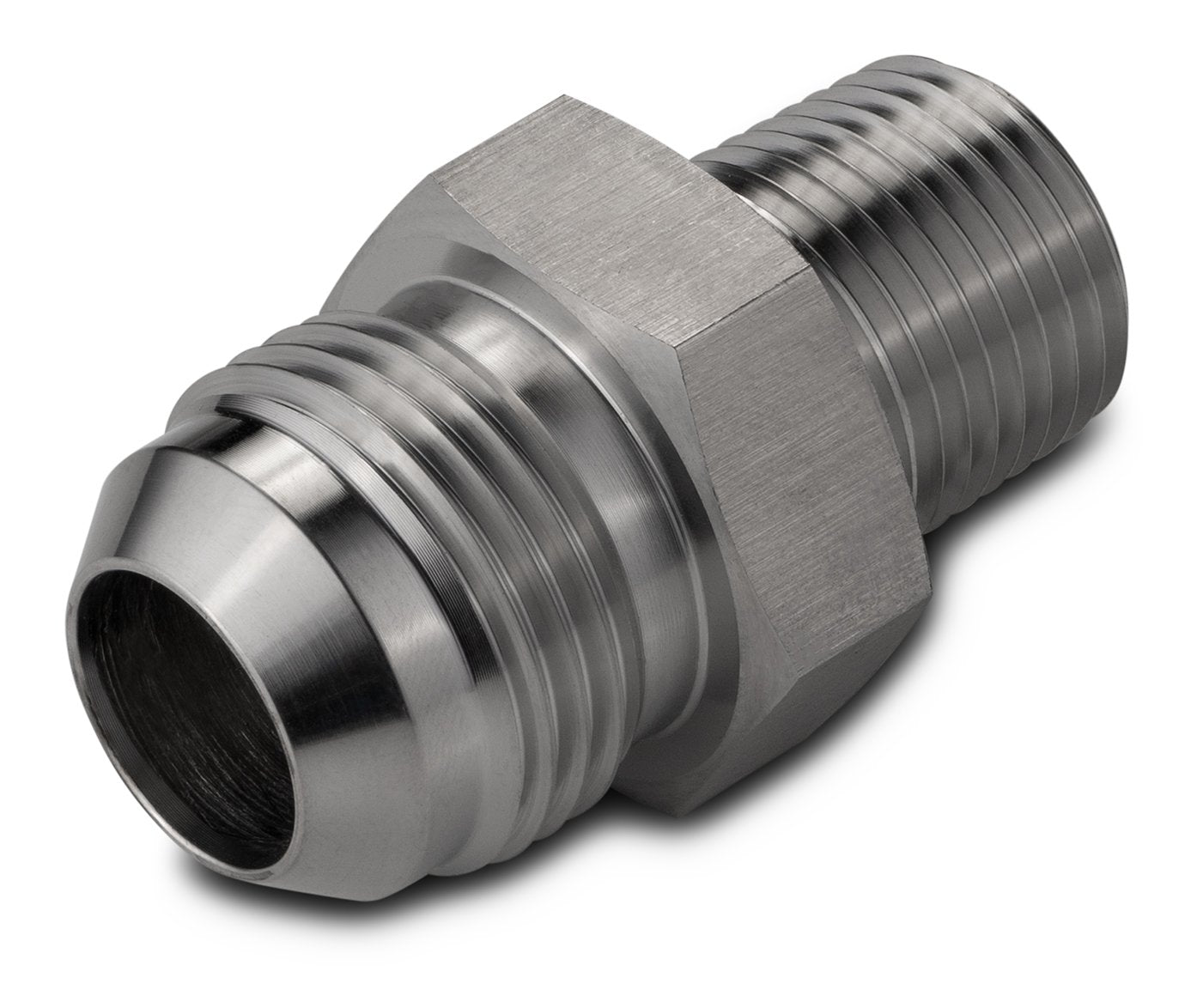

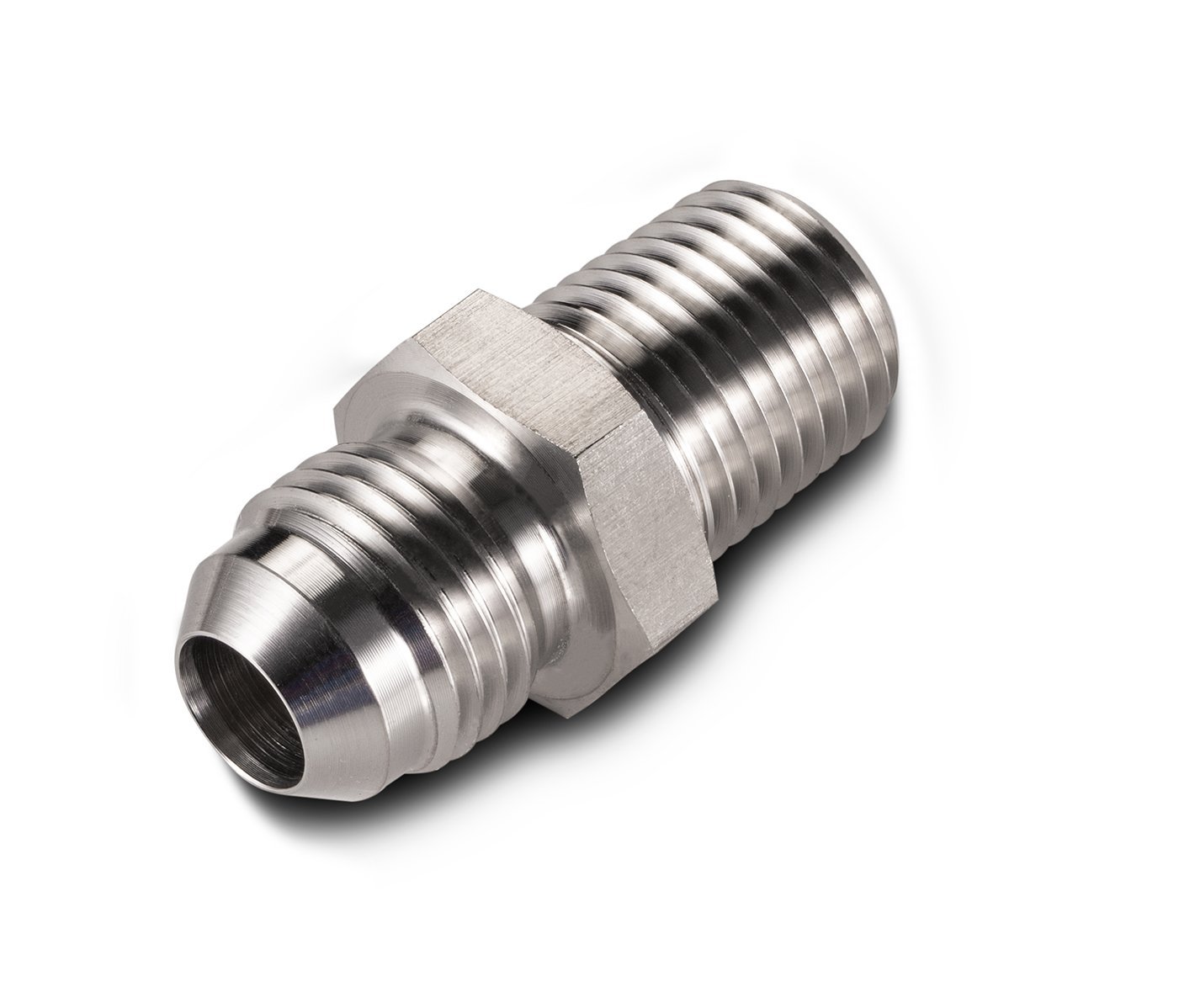

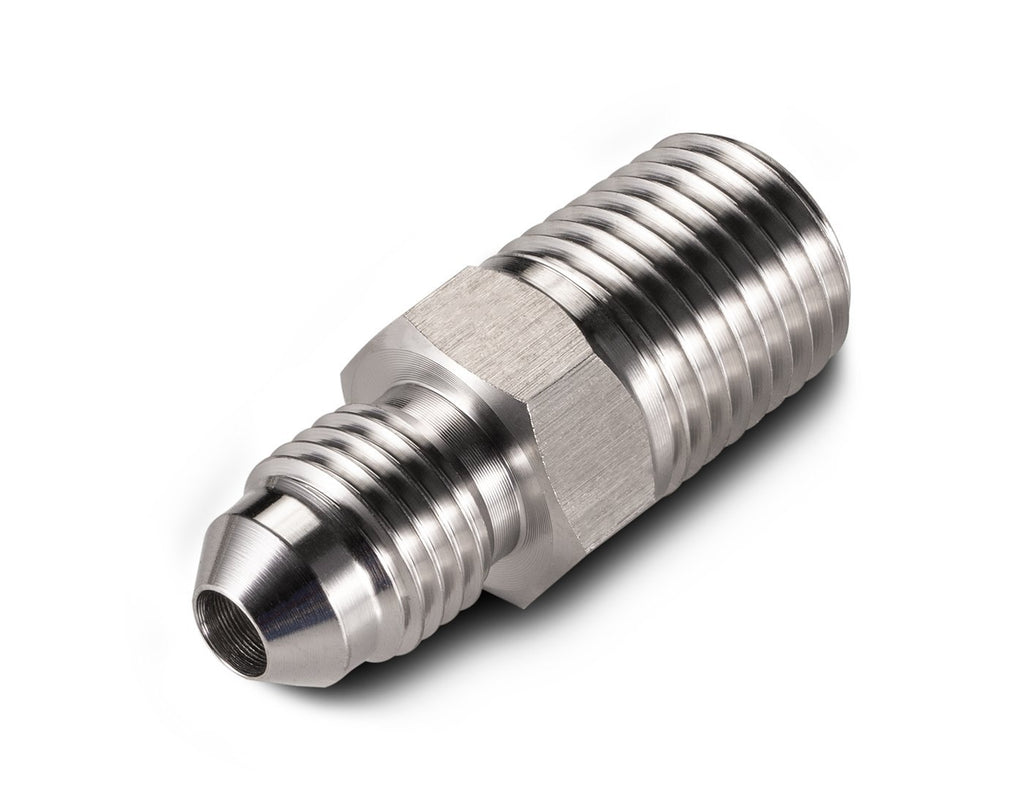

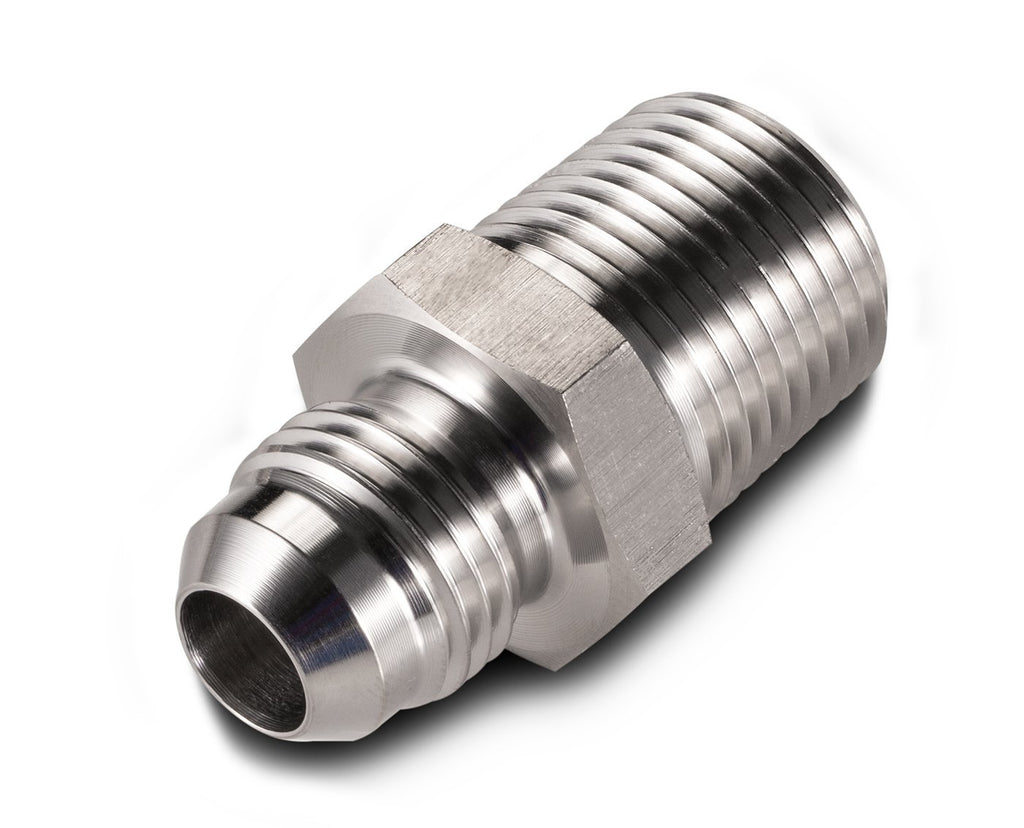

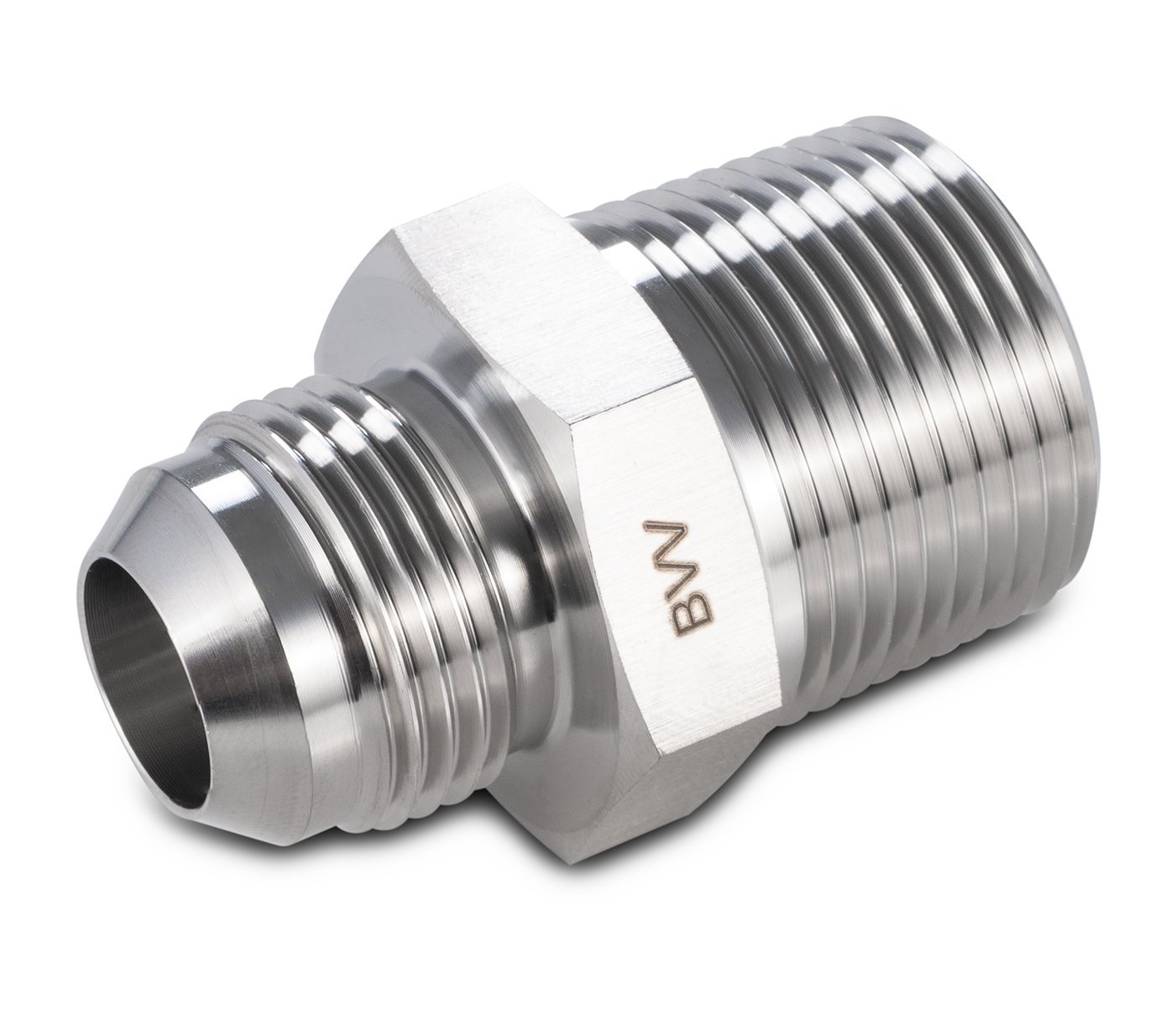

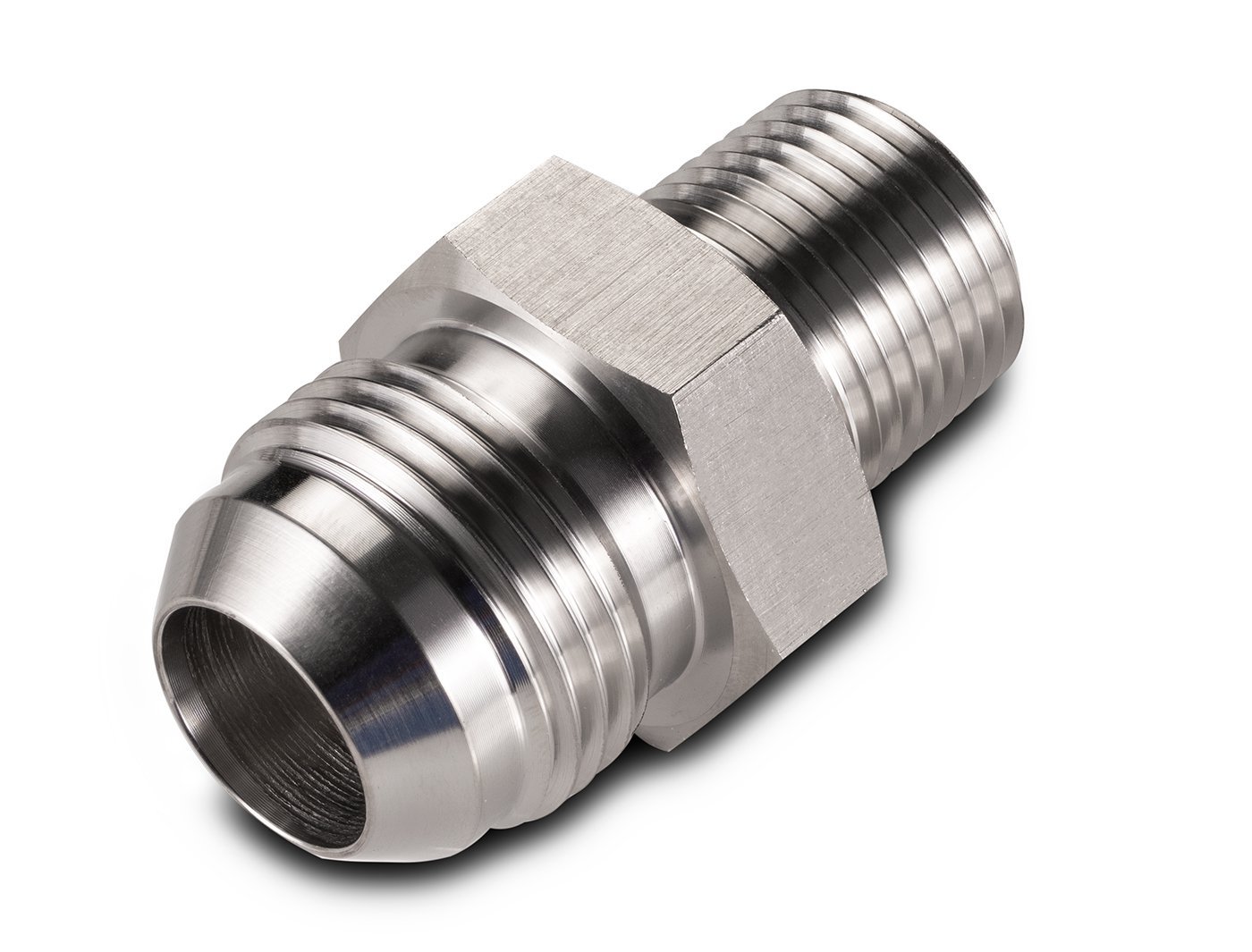

BVV™ 37° MJIC X MNPT


BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These stainless steel tube fittings are 37° JIC threads and NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service.

**NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.)


The 37° JIC connection will create a seal by compressing the flared end against an opposite female/male flared connection. JIC connections do not require thread sealant because they seal off the flared surface of the fitting JIC Fittings are also not the same size as NPT fittings but do have the same size nomenclature. When connecting JIC fittings to one another it is recommended by BVV™ to use 2 wrenches - 1 to tighten the fitting and 1 to hold back against the force applied to create resistance and ensure a better seal.


A MJIC X MNPT connector will convert and adapt a Female NPT connection to a Male JIC connection or vise-versa. These MJIC x MNPT stainless steel tube fittings are the industry standard for extraction systems and allow a multitude of configurations on any system.

Specifications
Material 304 Stainless Steel
Connection Type(s): 1/4" 37° MJIC (7/16-20)
3/8" 37° MJIC (9/16-18)
1/2" 37° MJIC (3/4-16)
3/4" 37° MJIC (1-1/16 - 12)
1" 37° MJIC (1-5/16 - 12)
1/4"-18 MNPT
3/8"-18 MNPT
1/2"-14 MNPT
3/4"-14 MNPT
1"-11-1/2 MNPT
