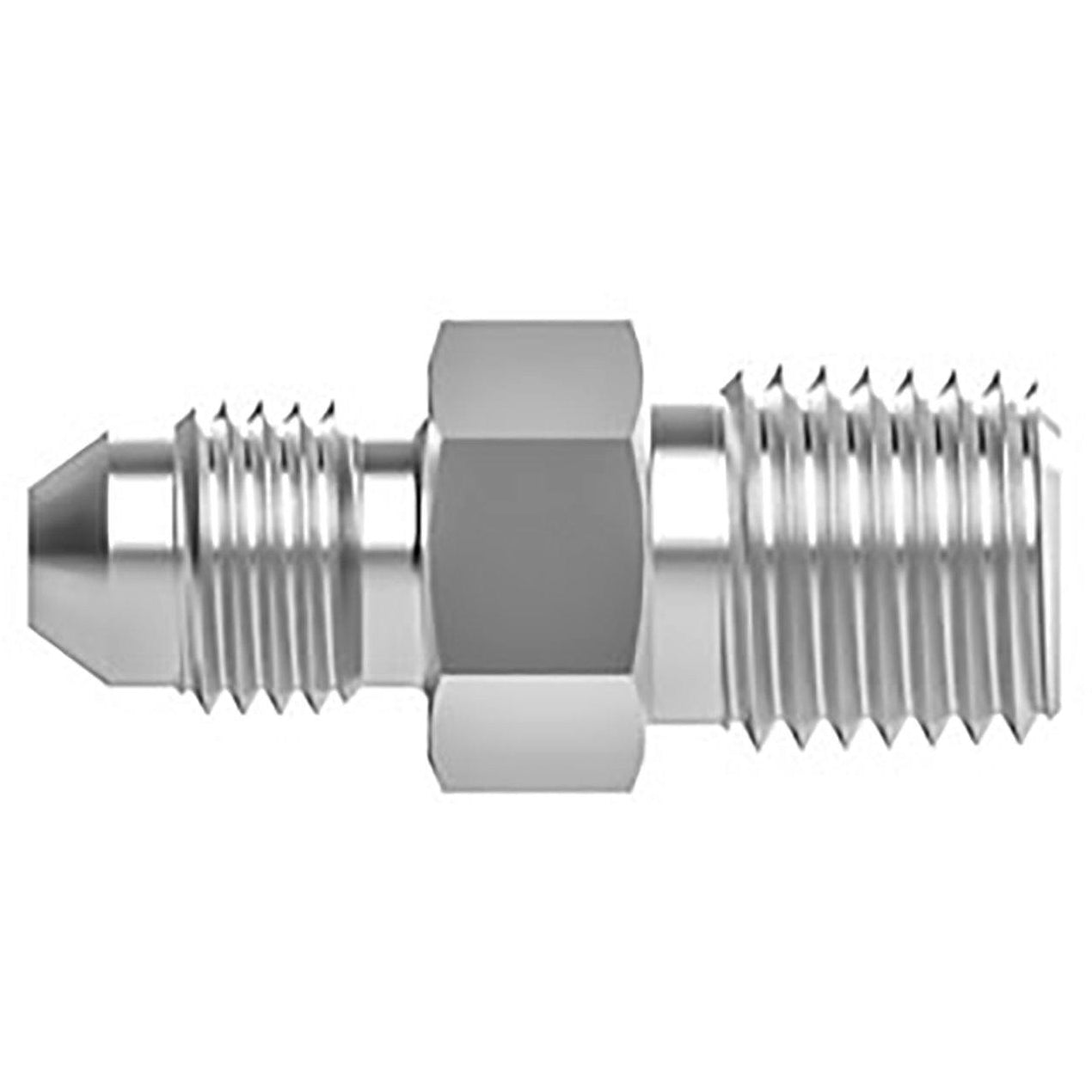

SSP Corporation 37° AN x Male Adapter

Power Lab Supply 1SKU: ISST4AN4MC

Select Size: 1/4-inch MJIC x 1/4-inch MNPT
Price:
Sale price$44.40 USD
Description

SSP - 37° AN x Male Adapter


SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.





***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends




Specifications
Connection Type 1 37° AN Male
Connection Size 1 Specified by User
Connection Type 2 Male NPT
Connection Size 2 Specified by User
Material 316 Stainless Steel
ASTM A-276 and A-479 bar stock, A-182 forgings.
Working Pressure (PSIG) 1/4" - 6000
3/8" - 6000
NPT Pressure Rating >10,000PSI
ASME B31.3




SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
