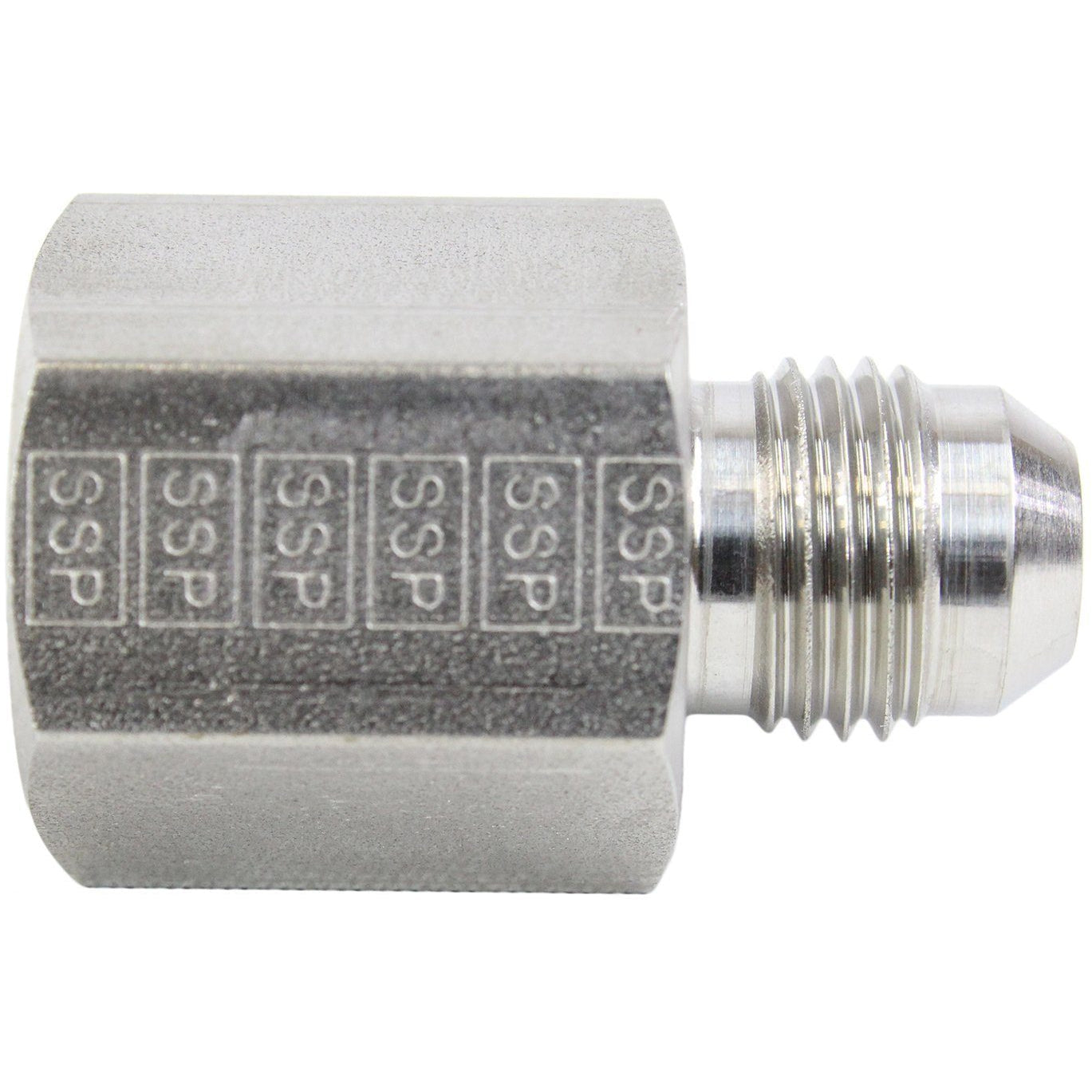

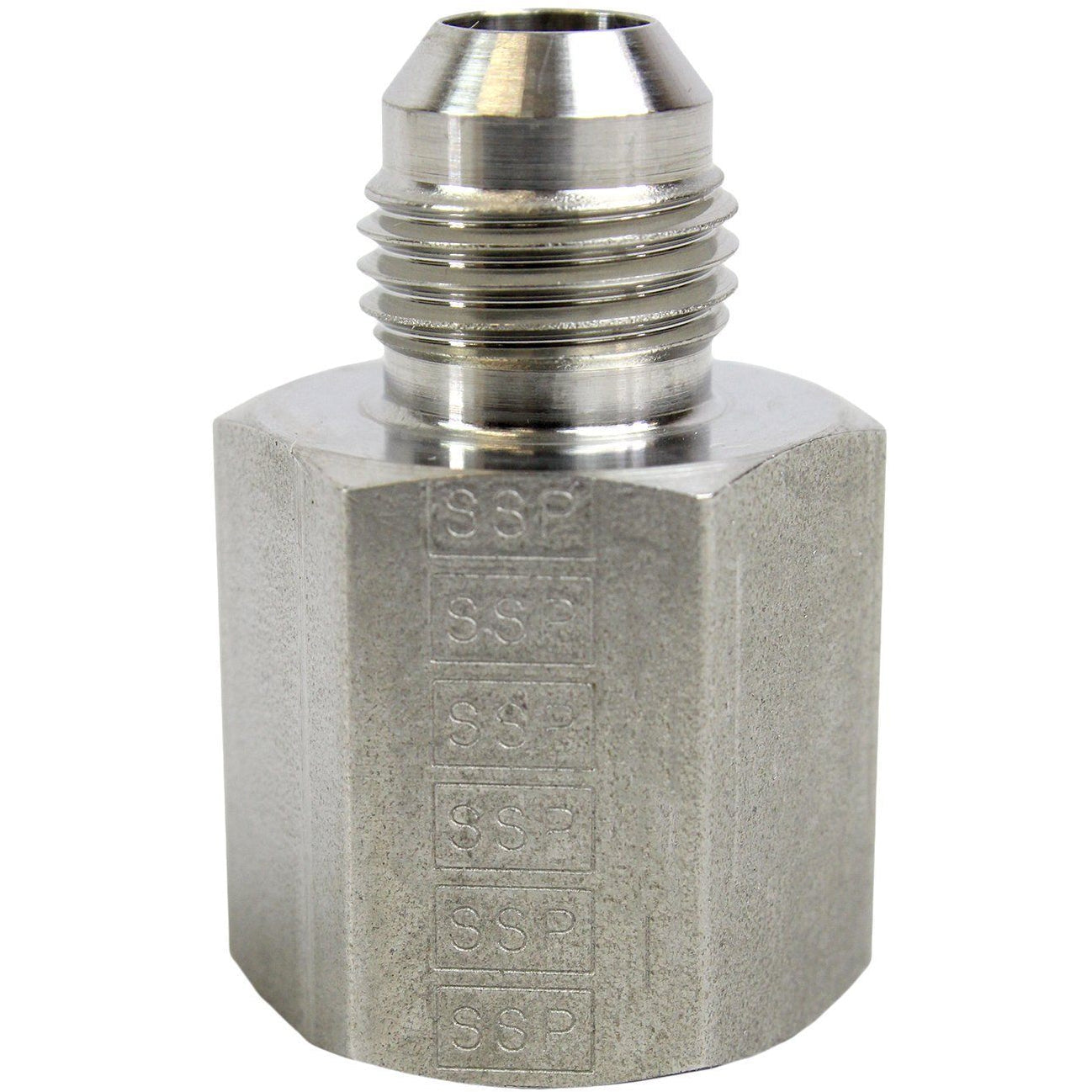

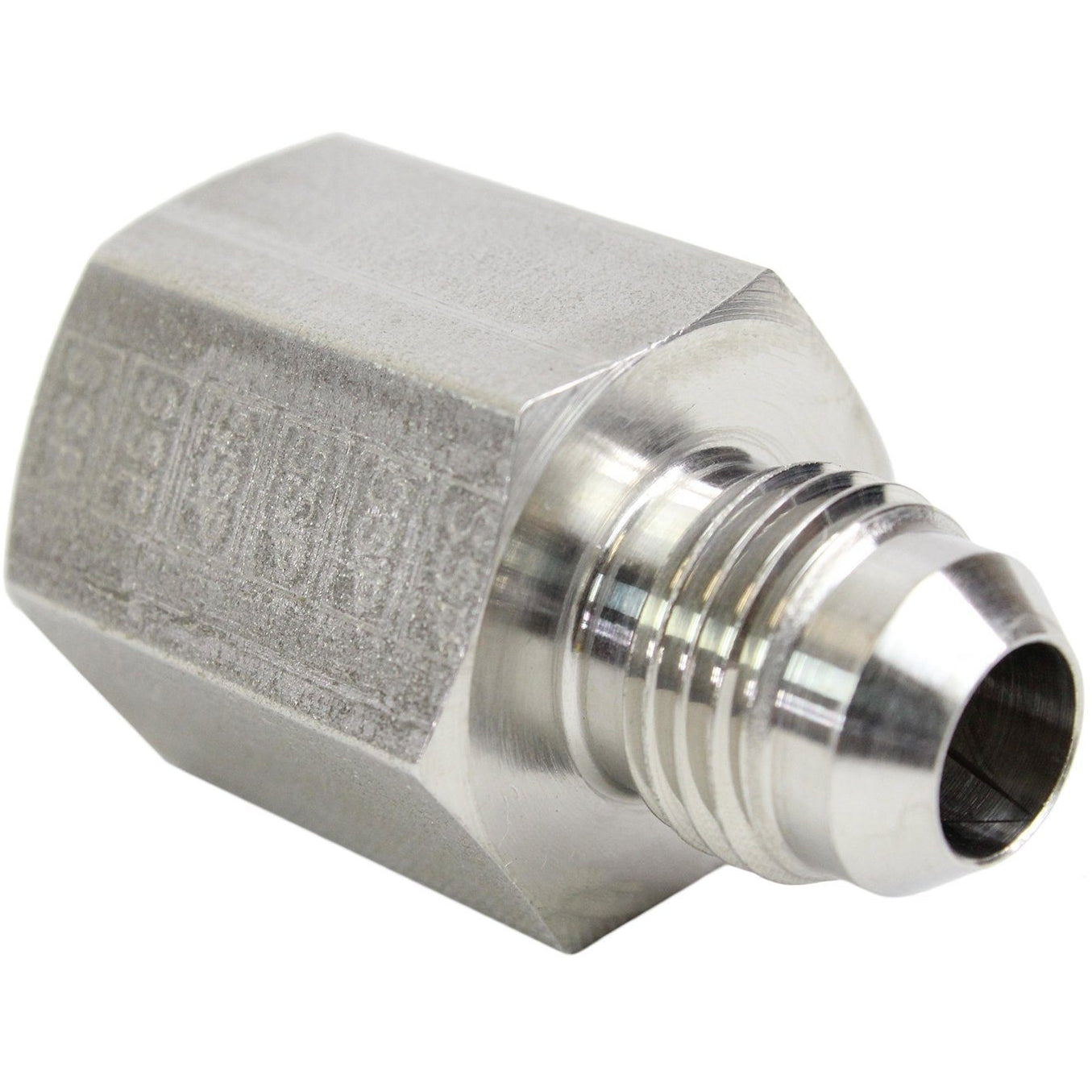

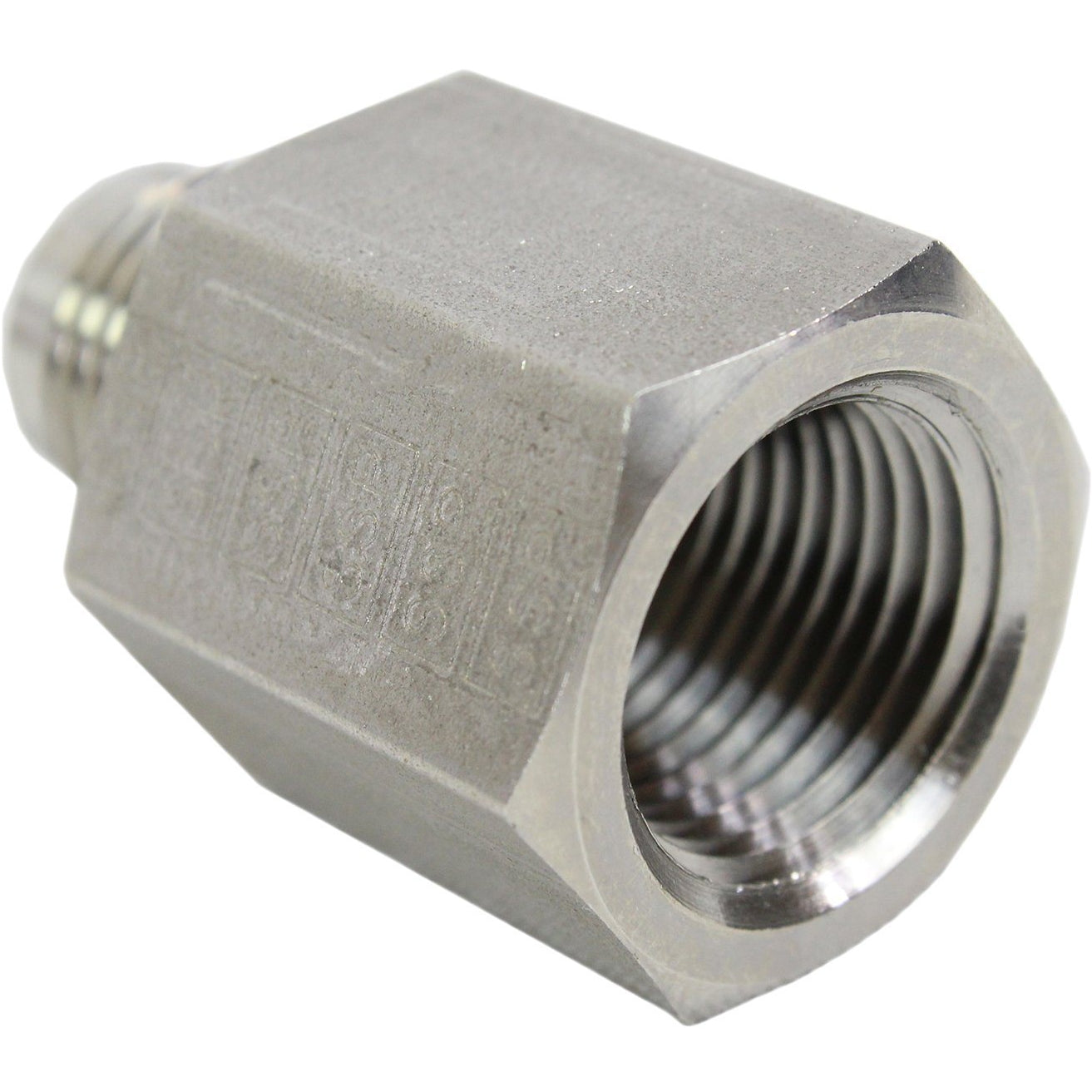

SSP - 37° AN x Female Adapter
SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.
Specifications | |
---|---|
Connection Type 1 | 37° AN Male |
Connection Size 1 | Specified by User |
Connection Type 2 | Female NPT |
Connection Size 2 | Specified by User |
Material | 316 Stainless Steel |
ASTM A-276 and A-479 bar stock, A-182 forgings. | |
Working Pressure (PSIG) | 1/4" - 6000 |
3/8" - 6000 | |
NPT Pressure Rating | >10,000PSI |
ASME B31.3 |
***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
