Across International 30mm Diameter ID Dry Pressing Die Set

Save $11.98 USD

Price:
Sale price$587.02 USD Regular price$599.00 USD
Description

A set of 30mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 30mm diameter cylinder-shape pellets.

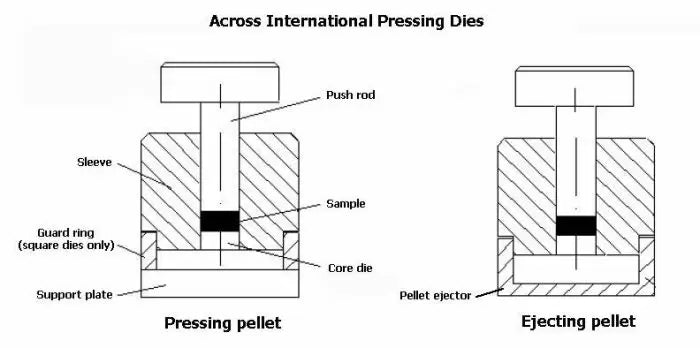

Die set includes

  • Two 30mm diameter cylinder-shape core dies
  • One sleeve
  • One support base
  • One push rod
  • One pellet ejector

Important

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 40 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Specifications
  • Maximum Pressure:      40 tons
  • Rockwell Hardness:       Rc 62
  • Diameter (ID):              30 mm
  • Height:                        110 mm (assembled without sample)
  • Sleeve Height:              60 mm
  • Sleeve Diameter (OD):  48 mm
  • Max sample fill height:  Not to exceed 1/3 of the sleeve height
  • Material:
    • Core die & push rod:          W18Cr4V hardened carbon tool steel
    • Sleeve, ejector & support:  Cr12 hardened carbon tool steel
  • Tolerance:                   0.01-0.02 mm (10-20 micron)

Die set includes

  • Two 30mm diameter cylinder-shape core dies
  • One sleeve
  • One support base
  • One push rod
  • One pellet ejector

Important

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 40 tons. Across International is not responsible for any damage caused by misuse.
