3.5CFM Dry Floating Scroll Vacuum Pump
1 Candy Drying Vacuum Pump
Oil and Maintenance Free!

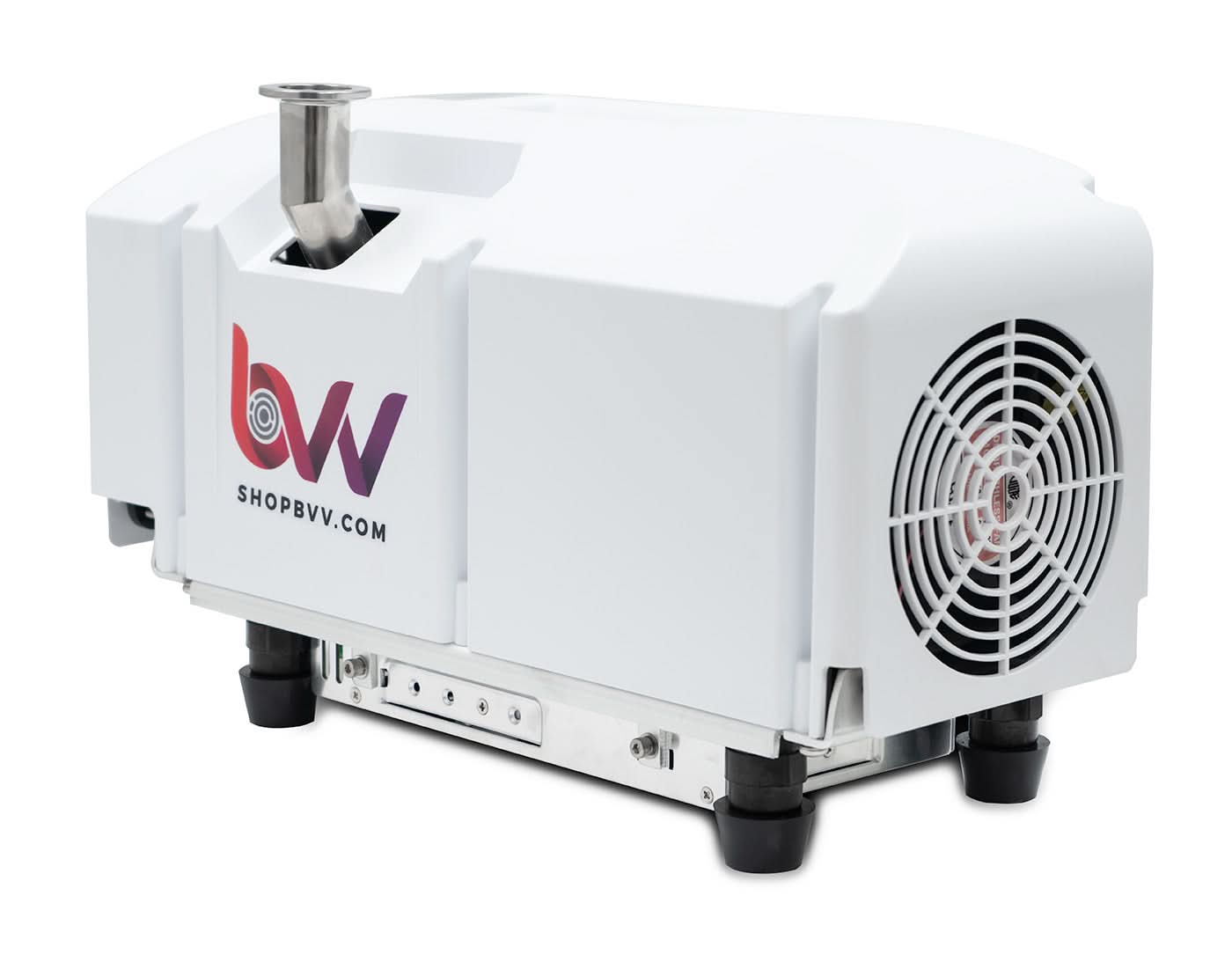

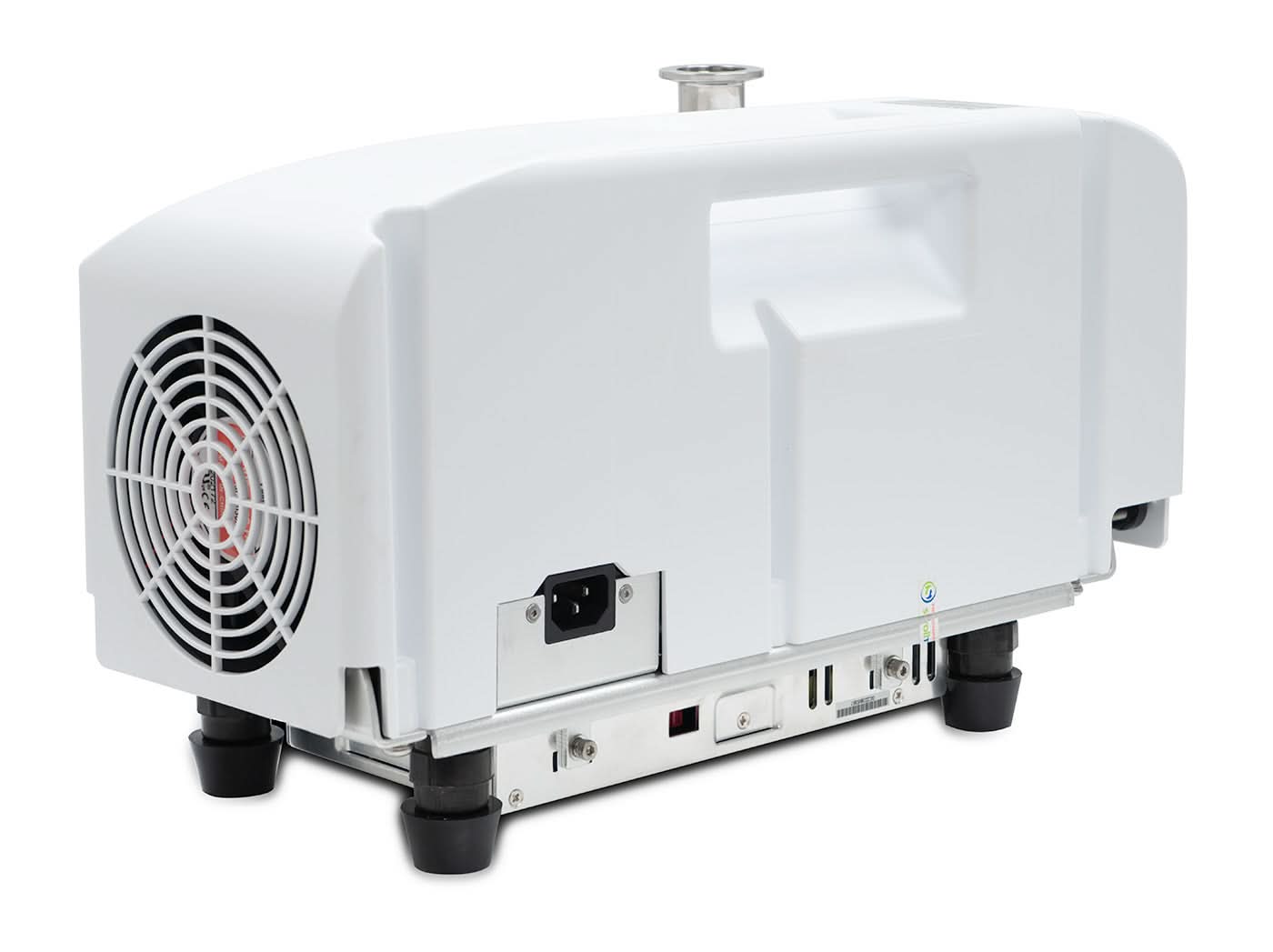

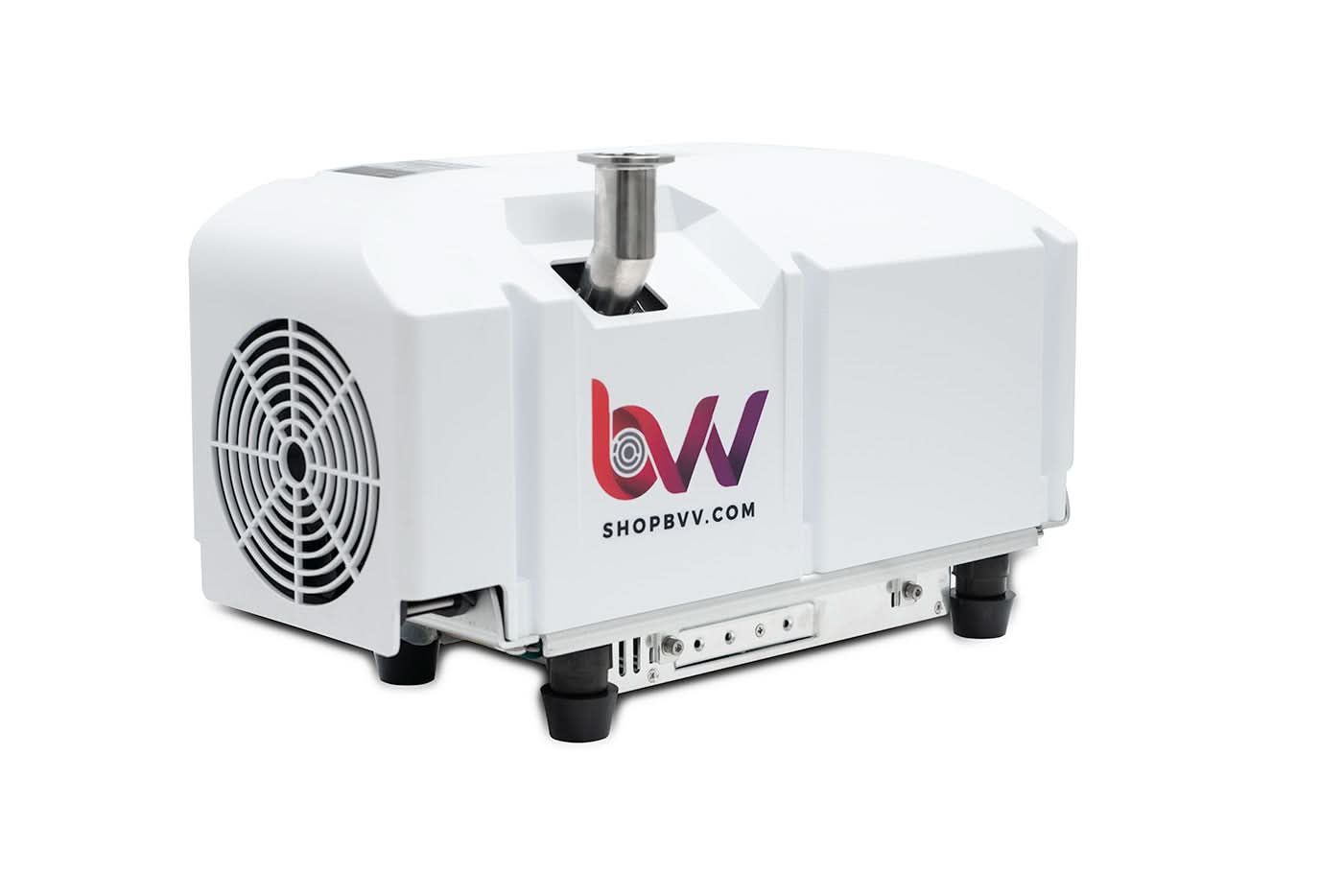

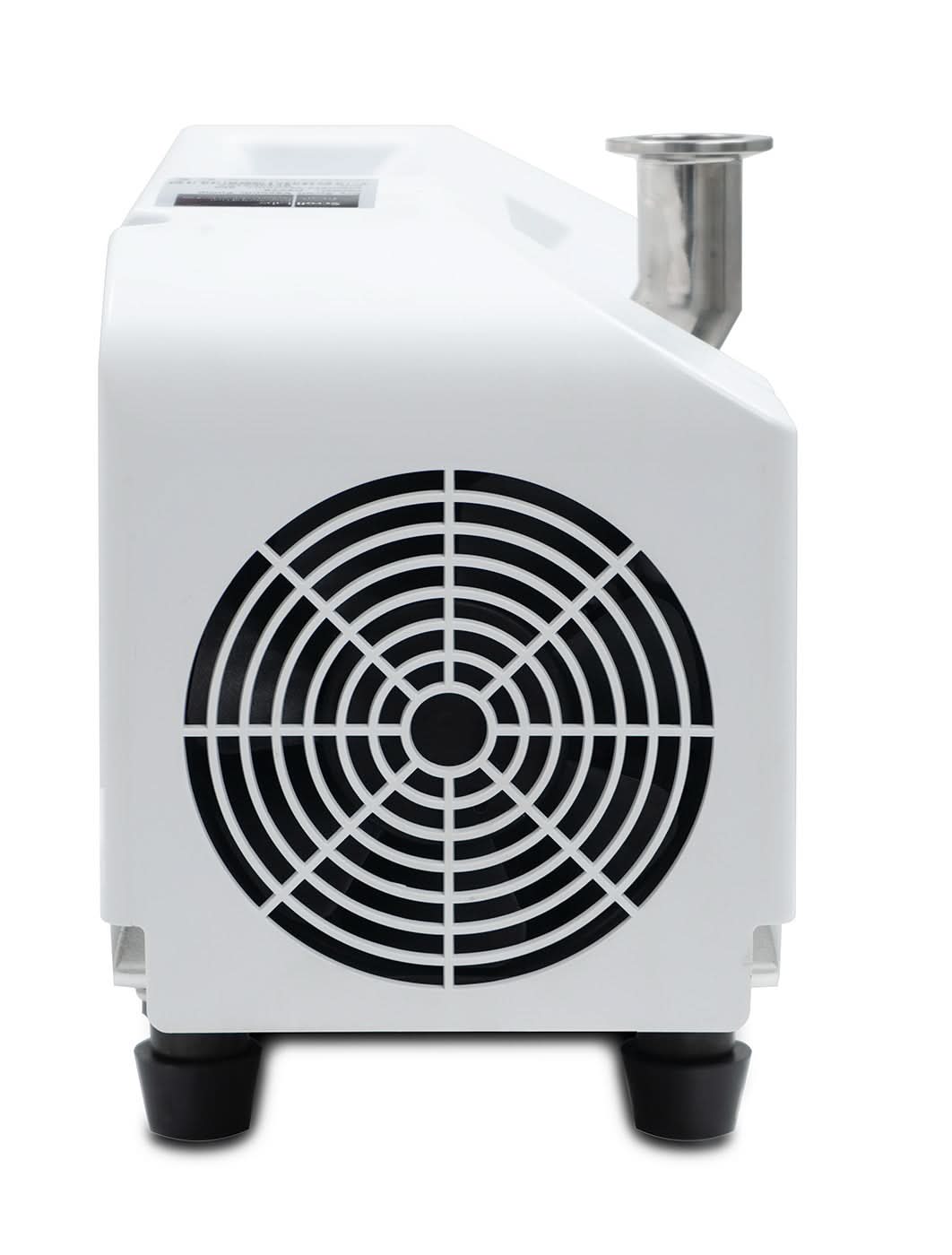

Introducing the BSVF6 Vacuum Pump, equipped with cutting-edge patented floating scroll technology for unparalleled performance. This pump boasts a 3.5CFM (100 L/min) pump speed and an ultimate pressure of 25 Microns (≤ 0.03 mbar), making it a powerhouse in creating and maintaining vacuums. The 100% oil-free design ensures clean and efficient operation, while the brushless DC motor, with 350W motor power and 200W installed power, provides reliability and longevity. With a compact size ideal for portable equipment, this vacuum pump offers unlimited vapor tolerance and a noise level as low as 55 dB(A) with its case. The SVF-E2-100 is maintenance-free, featuring a robust build with inlet/outlet connections in KF-25, air-cooled cooling system, and a wide ambient temperature range from -40ºC to 50ºC. Elevate your vacuum processes with this advanced, compact, and powerful solution.
Specifications
|
Model |
BSVF6 |
|
Pump Speed |
100 L/min |
|
Ultimate Pressure |
≤ 0.03 mbar (25 Micron) |
|
Motor Power |
350 W |
|
Installed Power |
200 W |
|
Motor Type |
Brushless DC Motor |
|
DC Voltage |
48 VDC |
|
AC Voltage (with adapter) |
100 – 240 VAC |
|
Maximum Speed |
4000 RPM |
|
Vapor Tolerance |
Unlimited |
|
Maximum Inlet Speed |
Unlimited |
|
Maximum Outlet Speed |
1 barg |
|
Noise Level (With Frame) |
60 dB(A) |
|
Noise Level(With Case) |
55 dB(A) |
|
Weight (With Frame) |
7.5 kg |
|
Weight (With Case) |
8.5 kg |
|
Dimensions (With Frame) |
324×225×175mm |
|
Dimensions (With Case) |
394×236×189mm |
|
Inlet/Outlet Connection |
KF-25 or G 3/8″ |
|
Cooling System |
Air – Cooled |
|
Ambient Temperature |
-40ºC to 50ºC |
