***Note: Butane(Solvent) not included with systems unless ordered with dropdown menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.

DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well ventilated areas. Check with your local fire marshal for guidance when operating indoors

2lb Closed Loop Reclamation Extraction System

(System comes with 1 yr. limited warranty)

The 2lb closed loop hydrocarbon extraction system performs botanical extraction within a sealed, vacuumed system. Utilizing a top-fill input, solvent washes thru the material column, collecting oils as it passes over the material. Oil bearing solvent is collected in the collection base under the material column. Once collected, solvent is distilled and recovered, leaving the oils in the collection base. This is a passive unit that utilizes pressure differences created by manipulating temperature to move solvent.

This unit can be upgraded into an Active recovery unit by purchasing the upgrade kit.

Extractor Configurations:

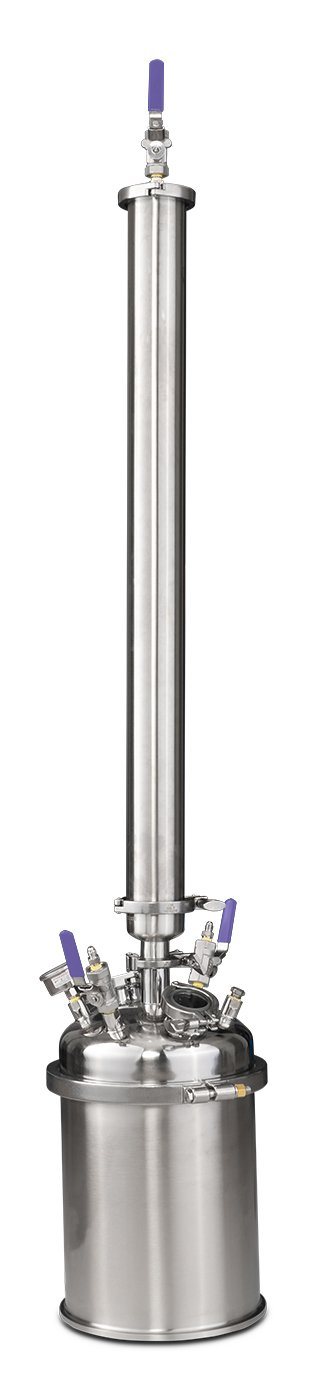

• Explorer: Our standard, most economical setup, perfect for the entry level extractor on a budget.  Comes with a welded bottom base and standard LP tank.  This model has minimal features to keep cost low, while providing the necessary equipment to get the job done.

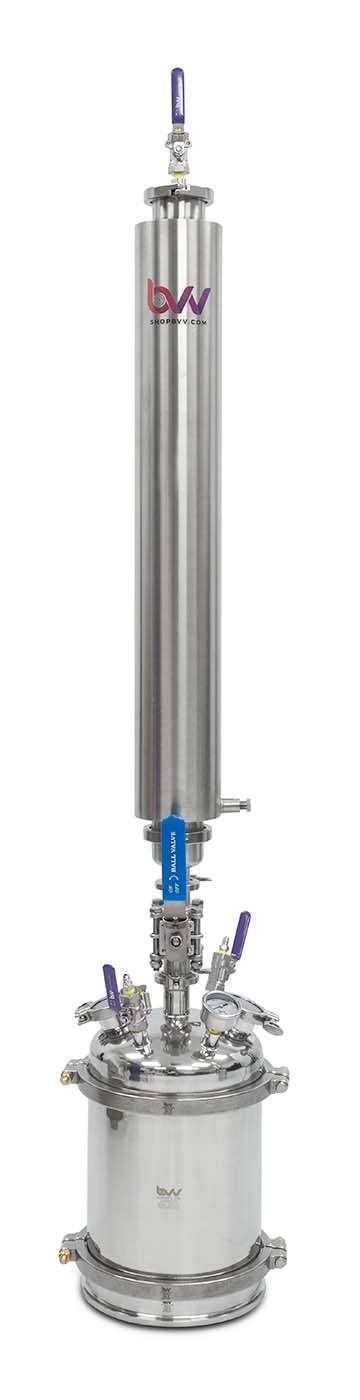

• Professional: This model features upgrades to help produce a higher quality extract.  Solvent is input into the material column with a showerhead endcap, ensuring the full material column is saturated with solvent.  The Professional comes with a sleeved spool, allowing users to utilize dry ice to freeze the material column. This will help lock in fats and waxes to the material. An inline ball valve is used to allow solvent to be suspended in the material column, as well as closing the collection base off during recovery.  Upon completion of the run, extract removal is made simple by adding a removable bottom to the collection base.

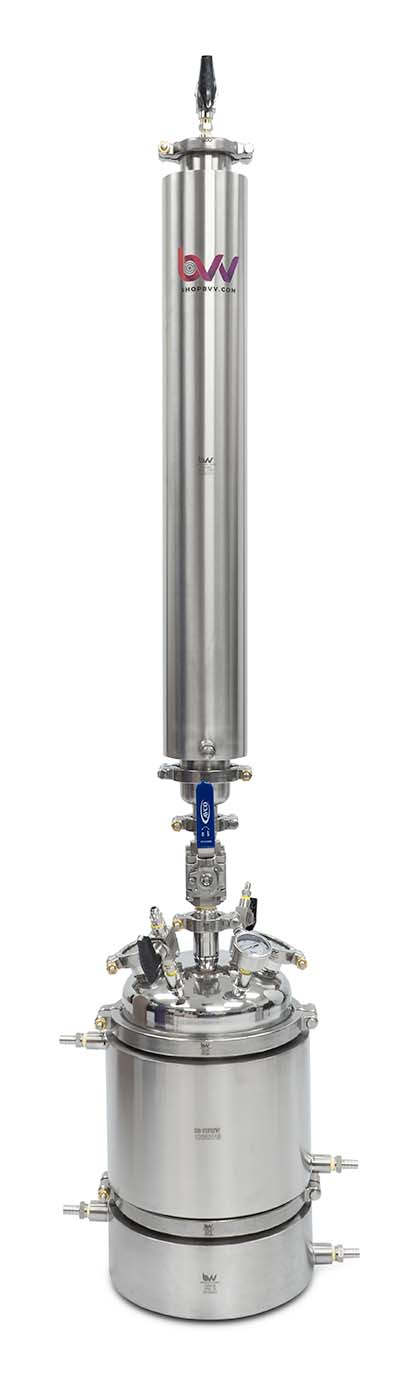

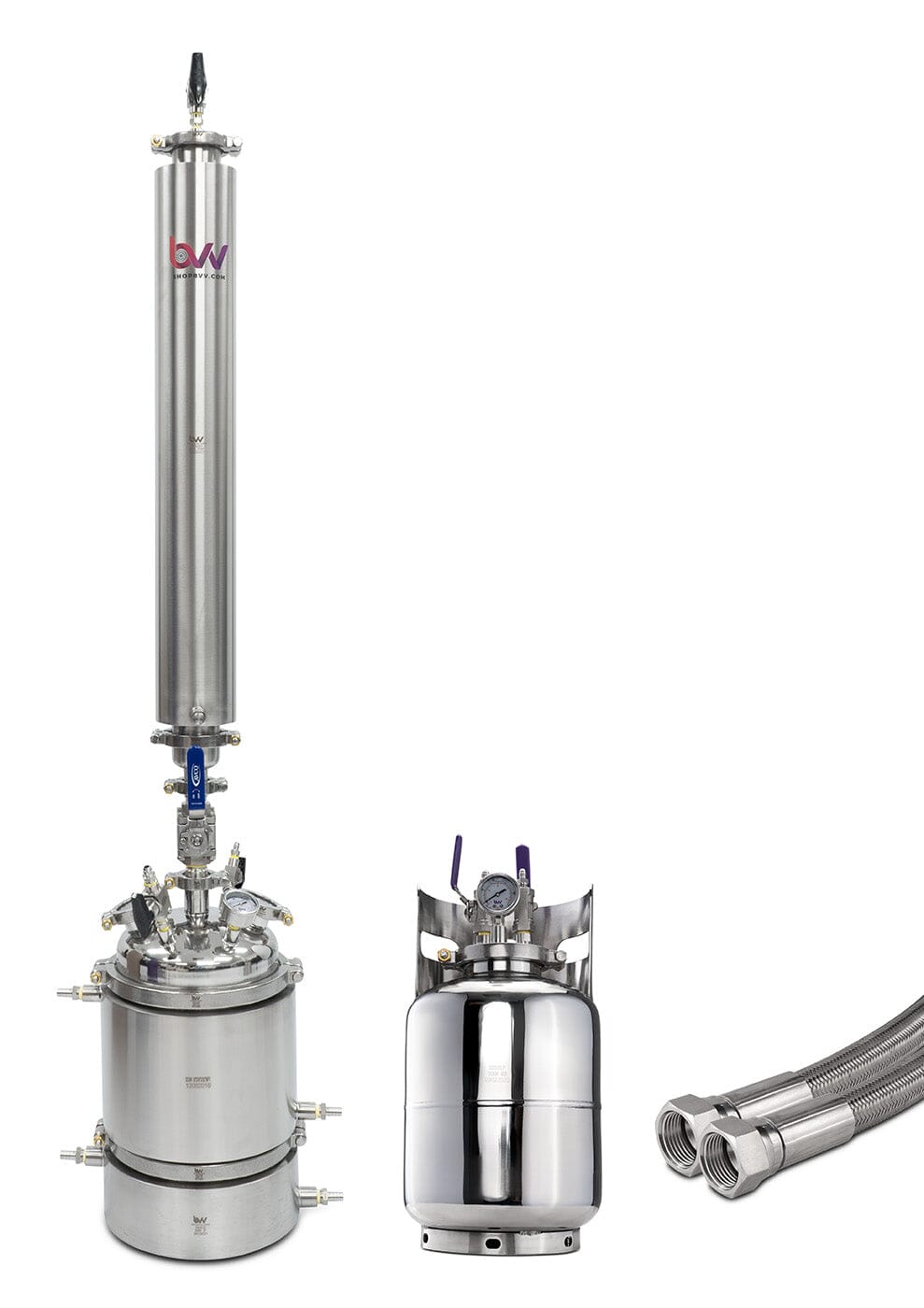

• Elite:  The Elite series is our fully upgraded Apollo model. The elite series adds a level of dependability needed for those seeking to produce the highest quality extracts.  It features a larger bore on valves and hoses, all American made instrumentation valves by SSP, an AVCO ultra-low temperature inline ball valve, sleeved dewaxing column, jacketed collection base, and a stainless steel LP tank.  The Elite series boasts increased efficiency on both solvent input and recovery by bumping up all valves and lines to 3/8” JIC.   The stainless steel LP tank is able to be opened and cleaned, making solvent contamination a non-issue. The jacketed collection gives precision during recovery, allowing a heated fluid to be circulated around the base.  This method keeps temperature both accurate and consistent.  *NOTE* This model requires a heater circulator or chiller

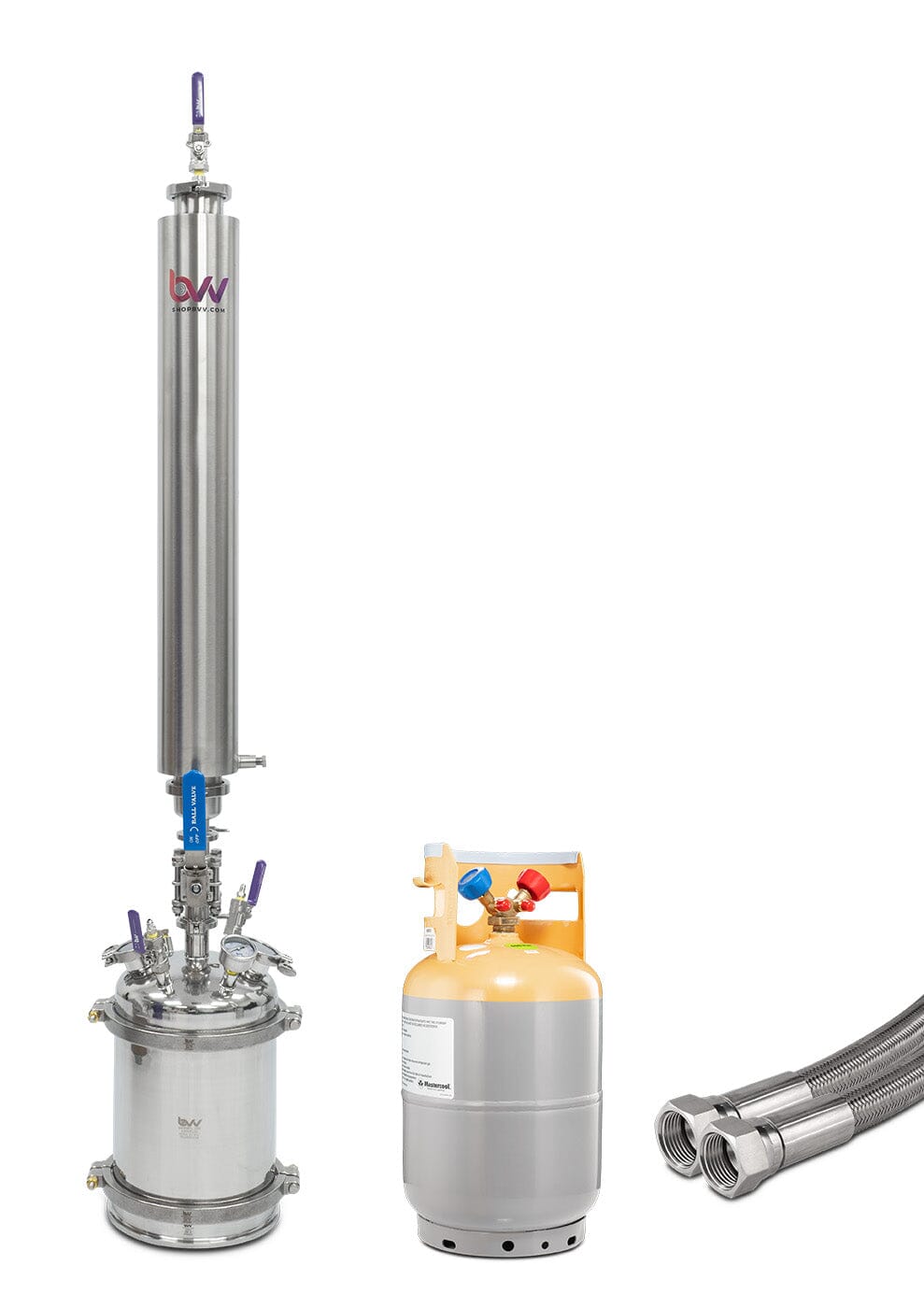

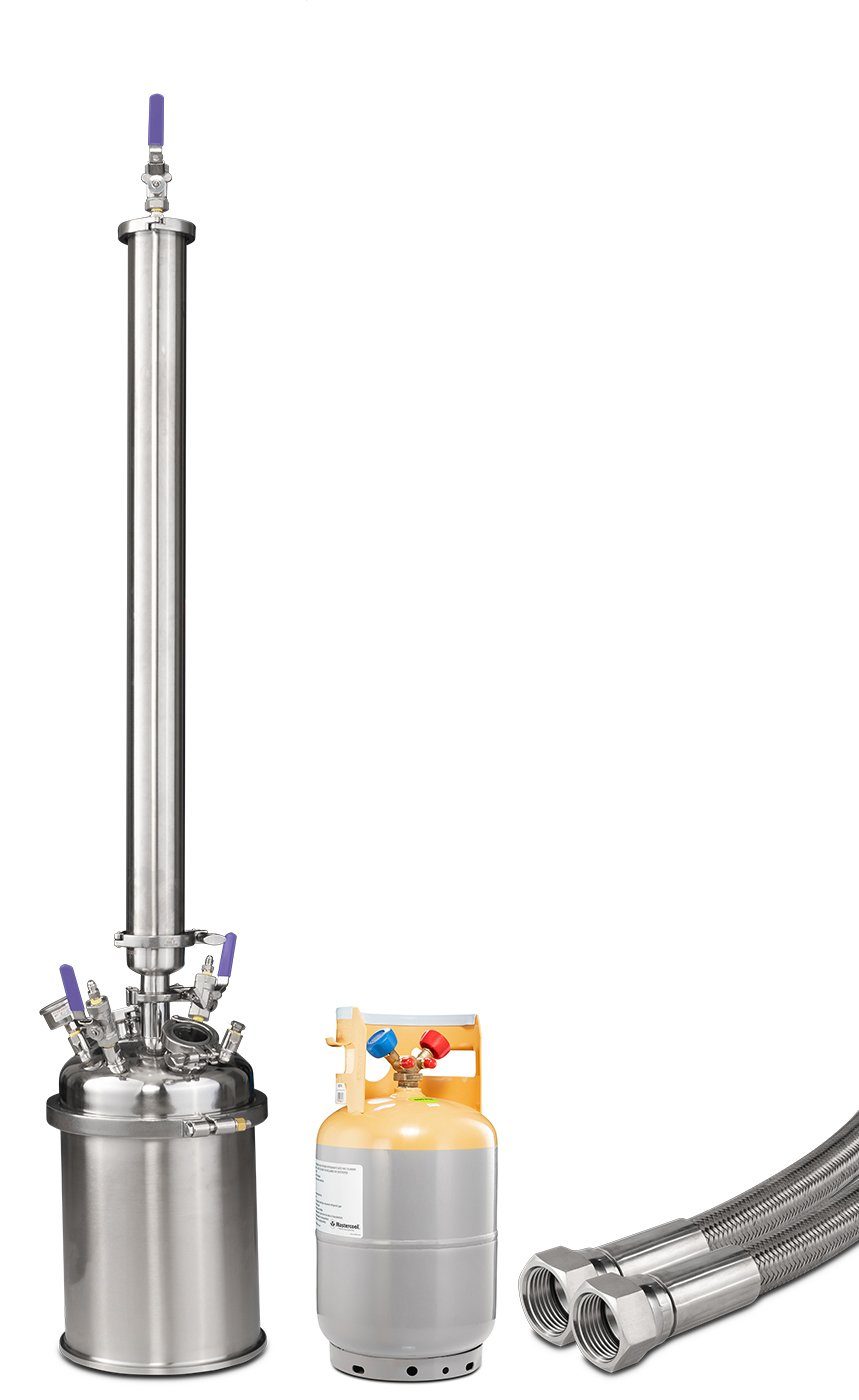

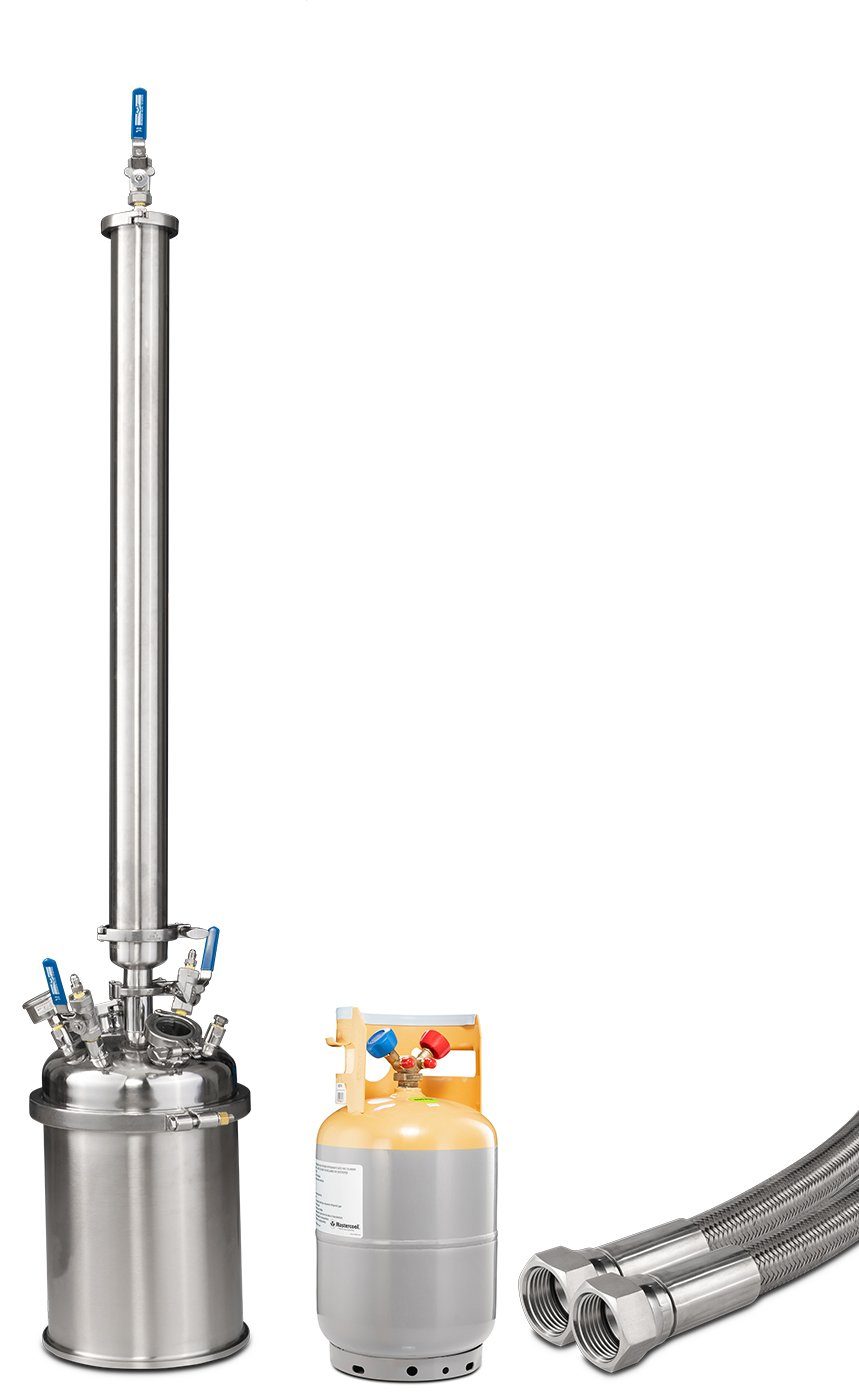

Unit Includes:

• Collection Base
• 10"x10" Welded Bottom Base

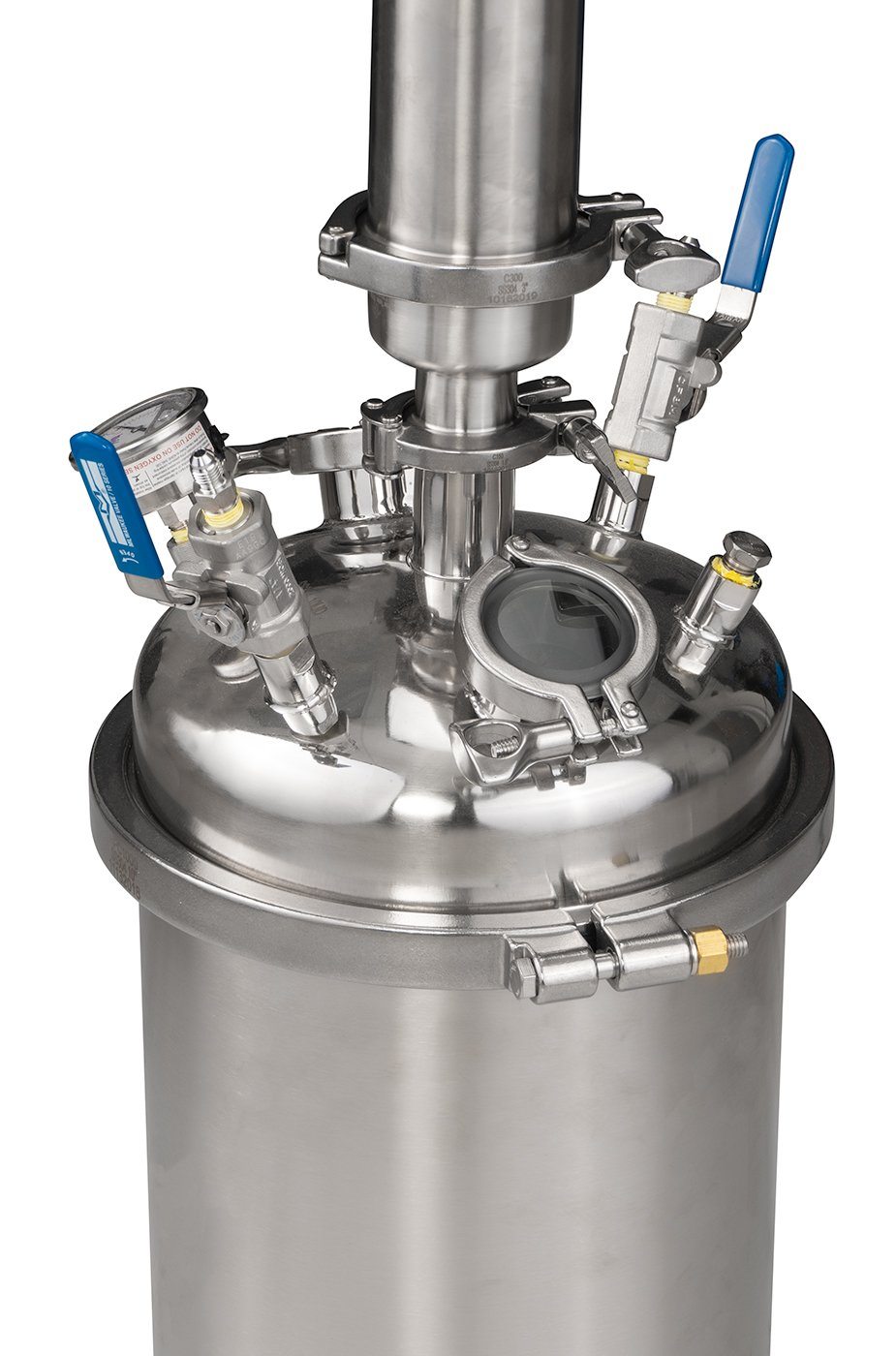

• Assembled 10" extractor lid
• 3"x36" Material column with reducer & top cap
• #30 LP tank
• 60" High Pressure PTFE Braided SS Hose
• 10" clamp, (2)3" clamps and a 1.5" clamp with gaskets
• Instruction Manual

Specifications:

• 3"x 36" 304 Stainless Steel Material Tube 2lb (900g)
• 316 Stainless Steel Fully Encapsulated Miniature Ball Valves
• System Rated to 150PSI
• Multiple port connections for _" 316 Stainless JIC 37 Degree
• 304 Stainless Steel Base Container 10" diameter by 10" tall
• Tri-Clamps at all interfaces make for a high pressure, easy clean unit.
• Viton Gaskets are designed for Oil Processing Temp range -40-200F
• Dimensions (Inches): 55" x 10" Diameter overall size
• Weight: 38 lbs.
• Operating Temperature Range: -40F to 160F
• Ultimate Vacuum: as low as 10 Microns
• Base unit Maximum Capacity: 785 cubic inches, (12.8704 Liters)
• Construction: All components made of 304 Stainless Steel.
• Max Vacuum -29.9inHg
• High Polish Interior

*Note:  Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity.  Low density, uncut, and/or lightly packed material can reduce capacity by 50%.
For best results, we recommend to tightly pack coarse ground material.
