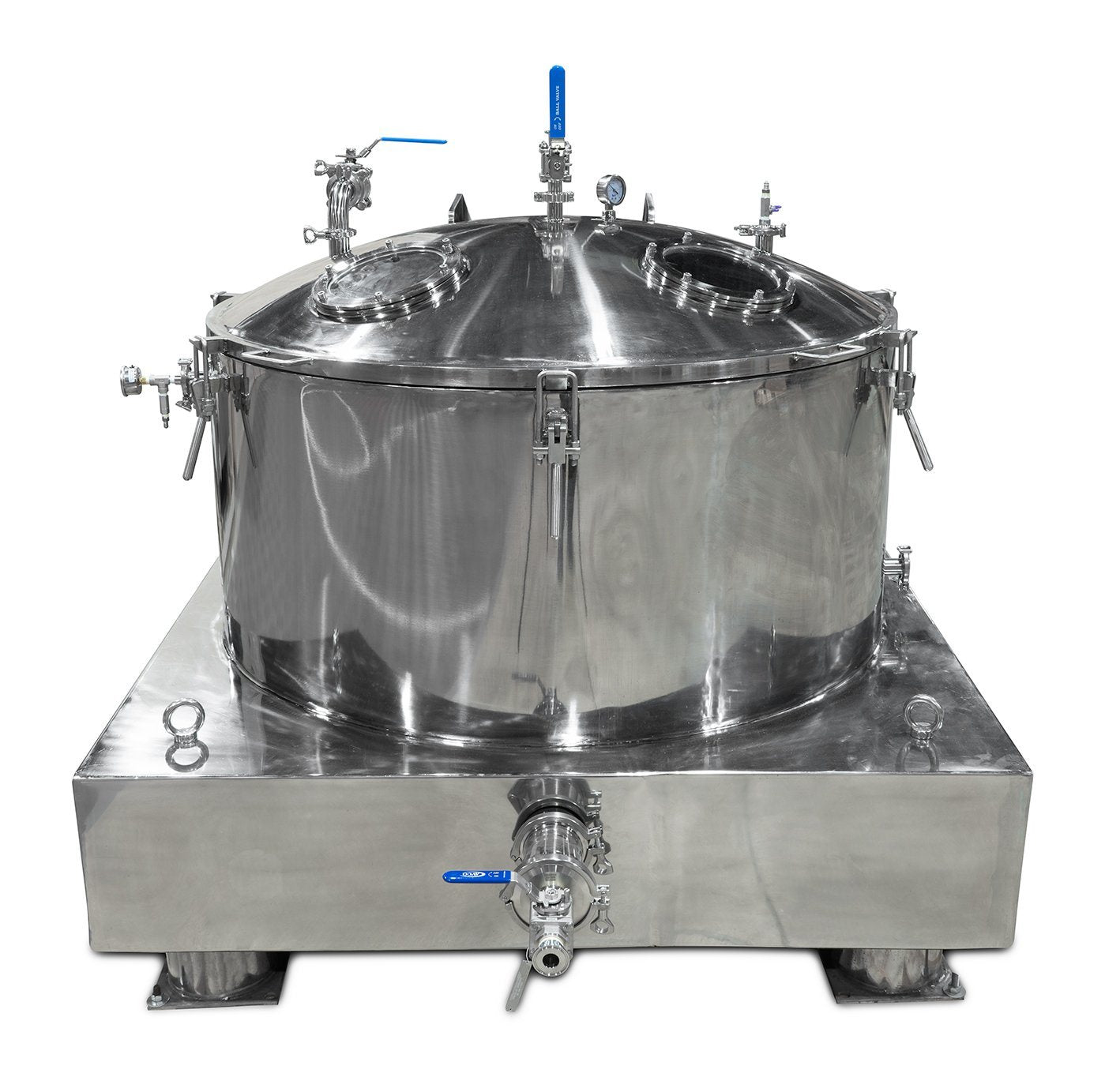

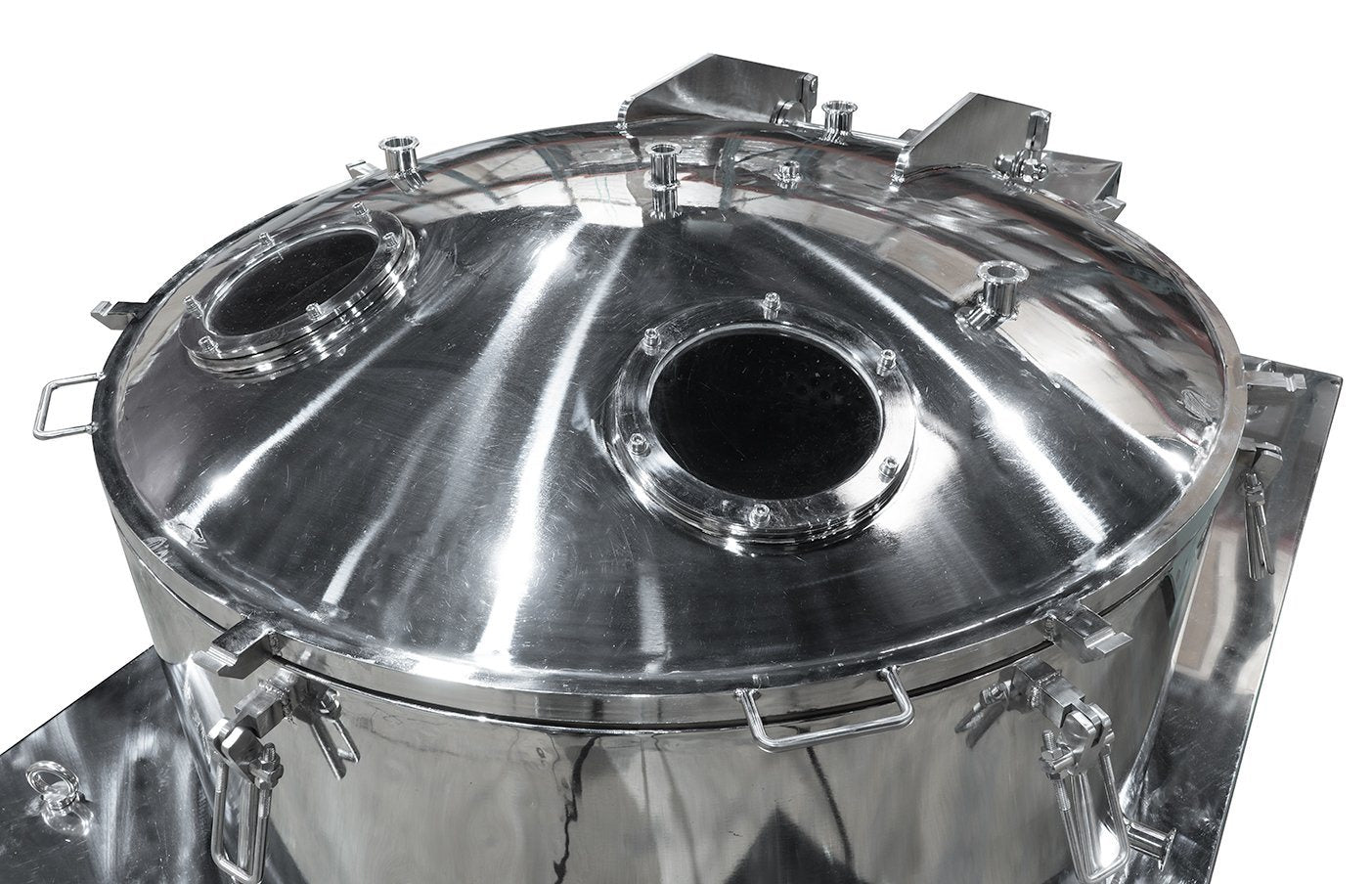

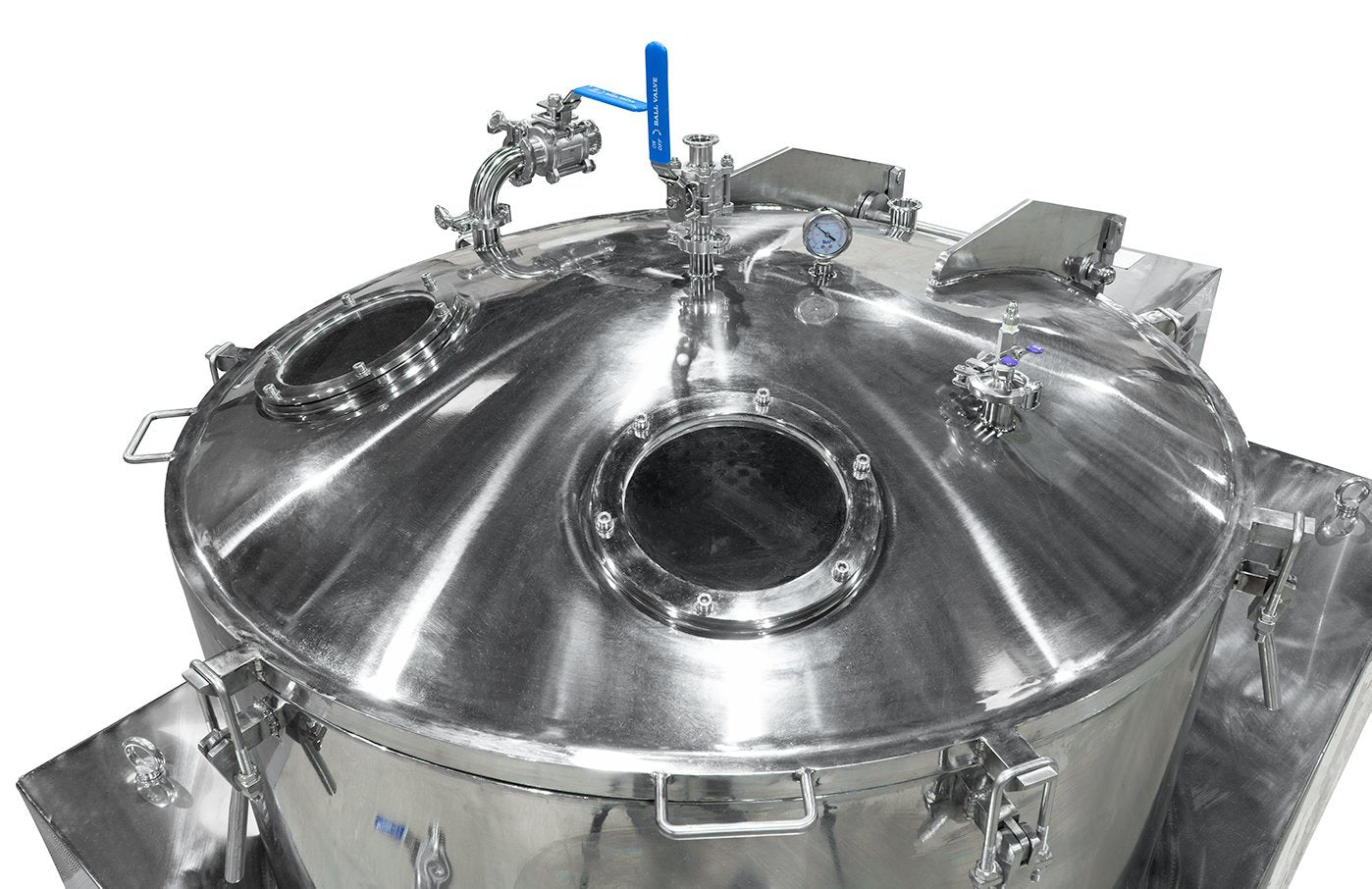

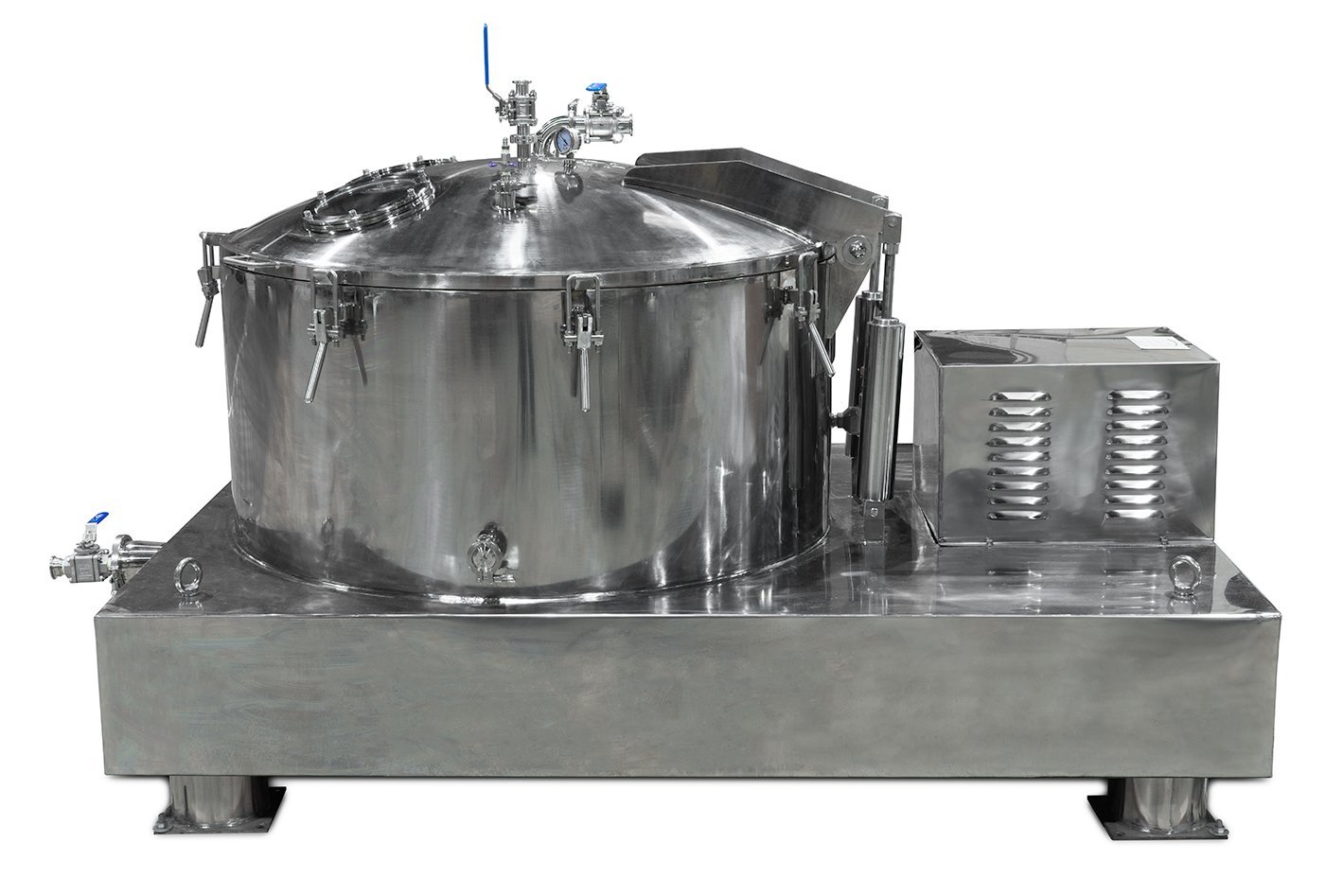

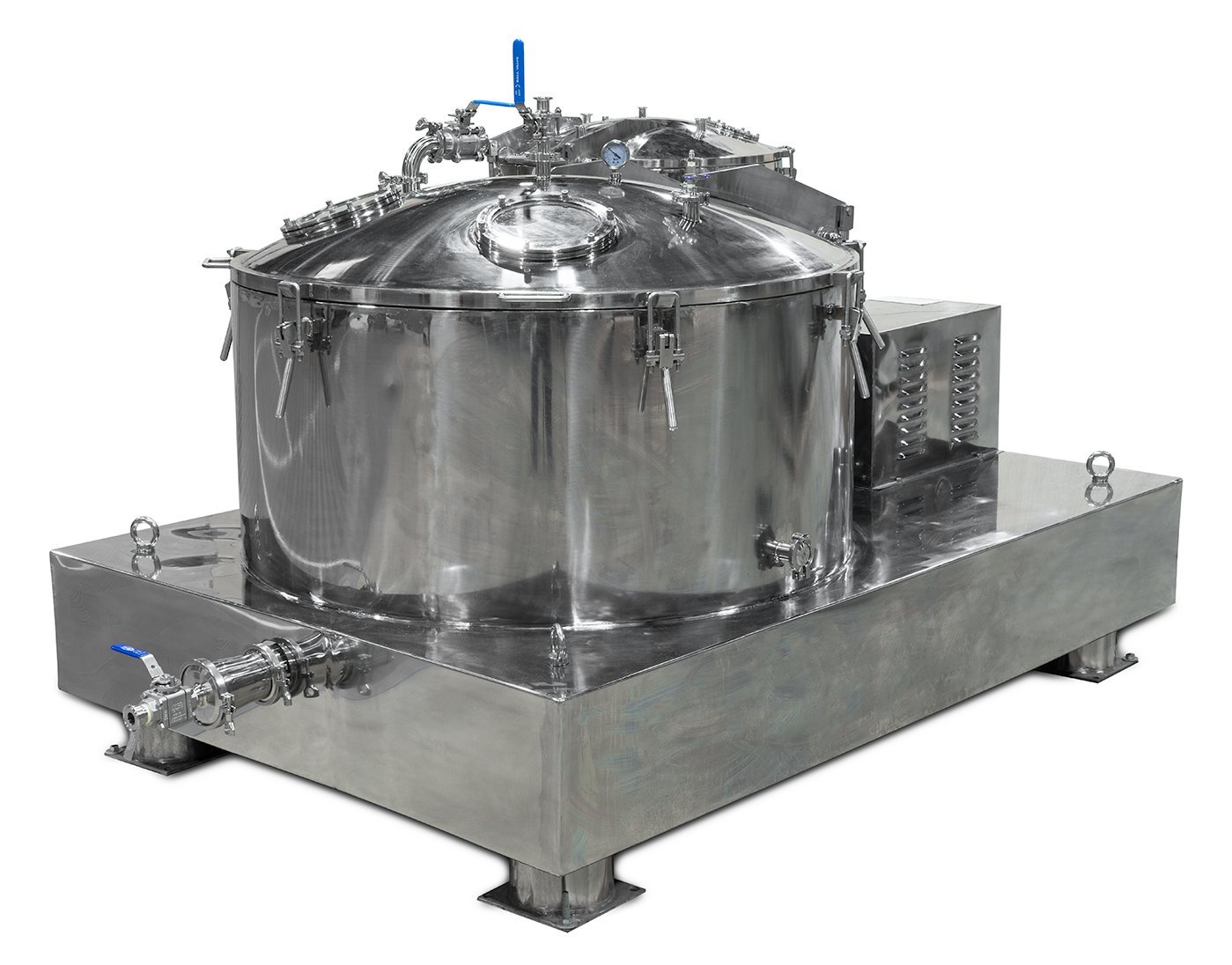

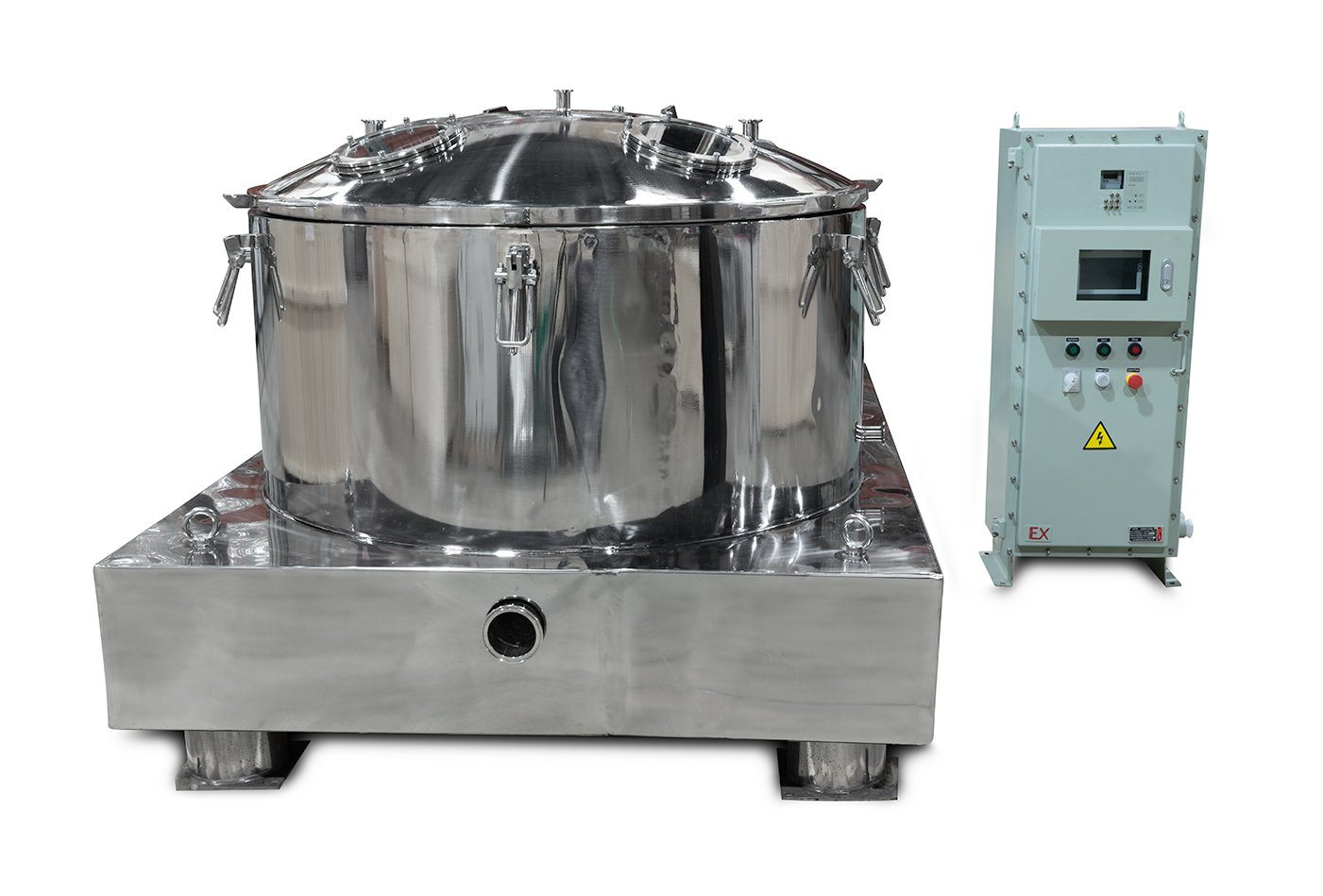

Certified 280L Ethanol Wash/Dry CentrifugeĀ Ā
NOTE: This item currently has a 2 week lead time.
Ā Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Notice to Customer:Ā This unitĀ has 4 lift points (one in each corner) and requires a forklift to lift it and will also ship via freight only.
Key Features:

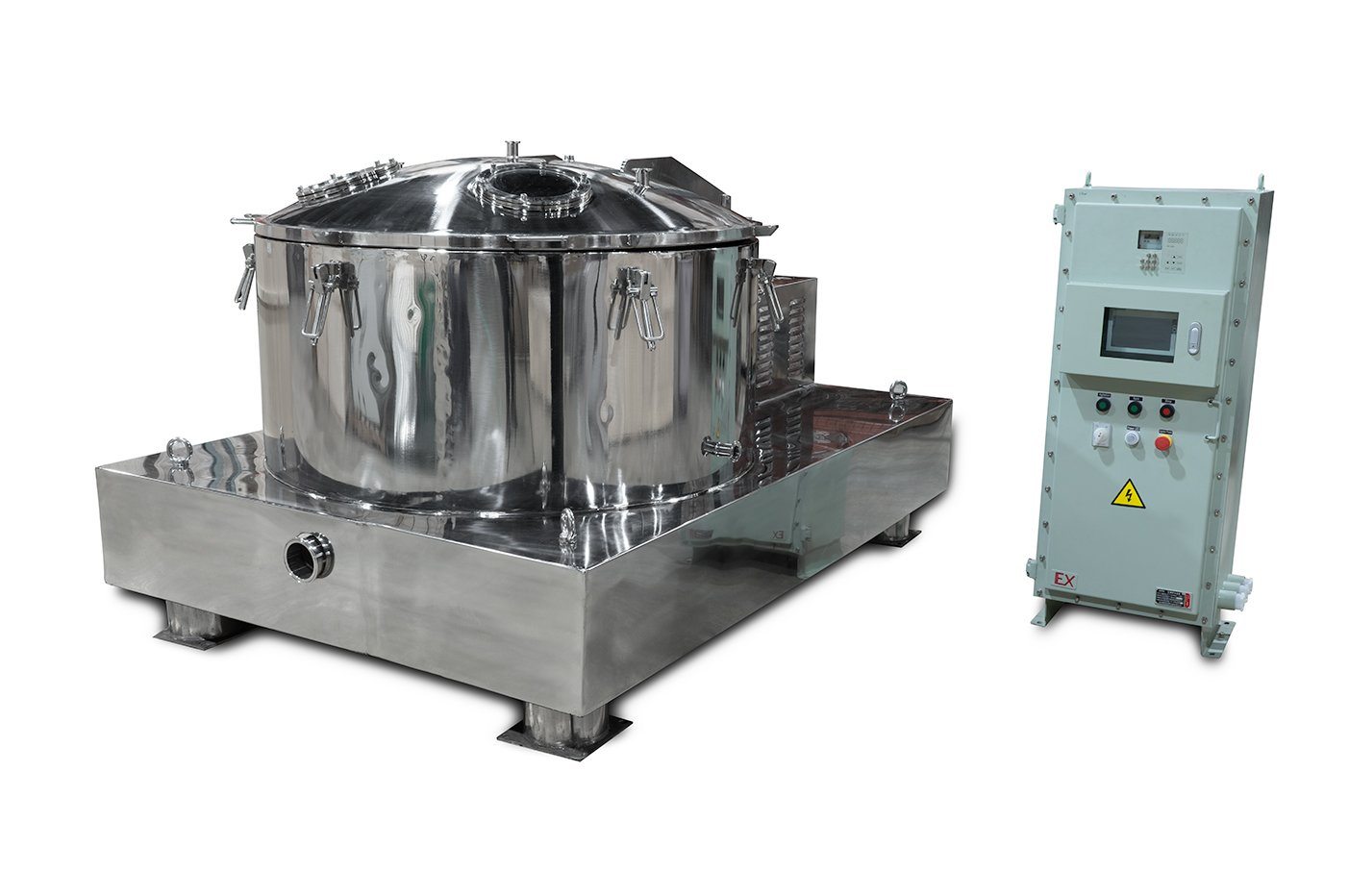

- Siemens Touch Screen Controller
- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 1000 RPM with Gradual Speed Stepping
- 559 Separation Factor
- Multiple Connection Ports/Sizes
- High Polish Stainless Steel Components
- Shock absorbing legs
- Vacuum Jacket with Two 1" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters areĀ an additional $4,000 + travel expenses.*
| Specifications | |
|---|---|
| Capacity | 280L |

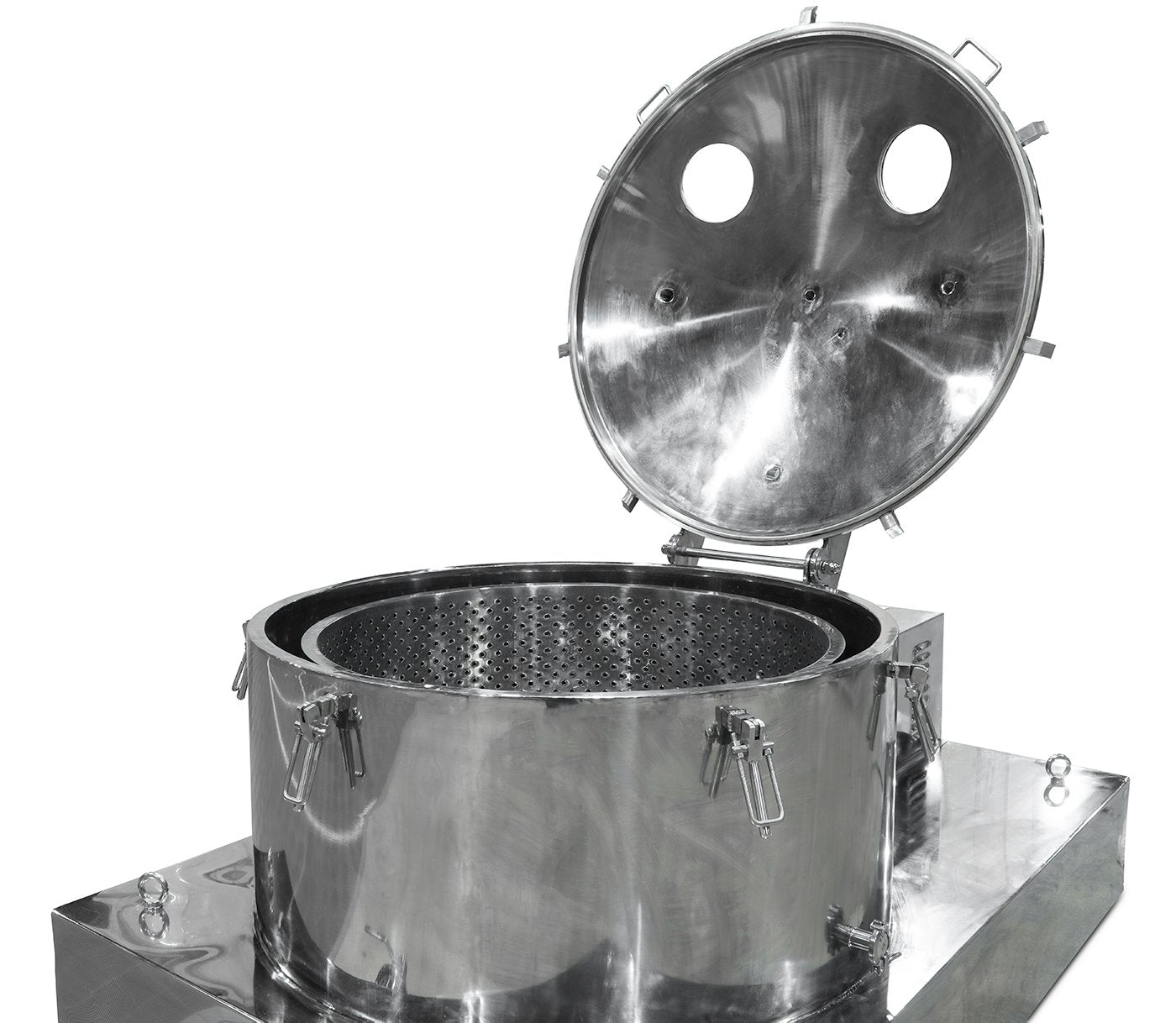

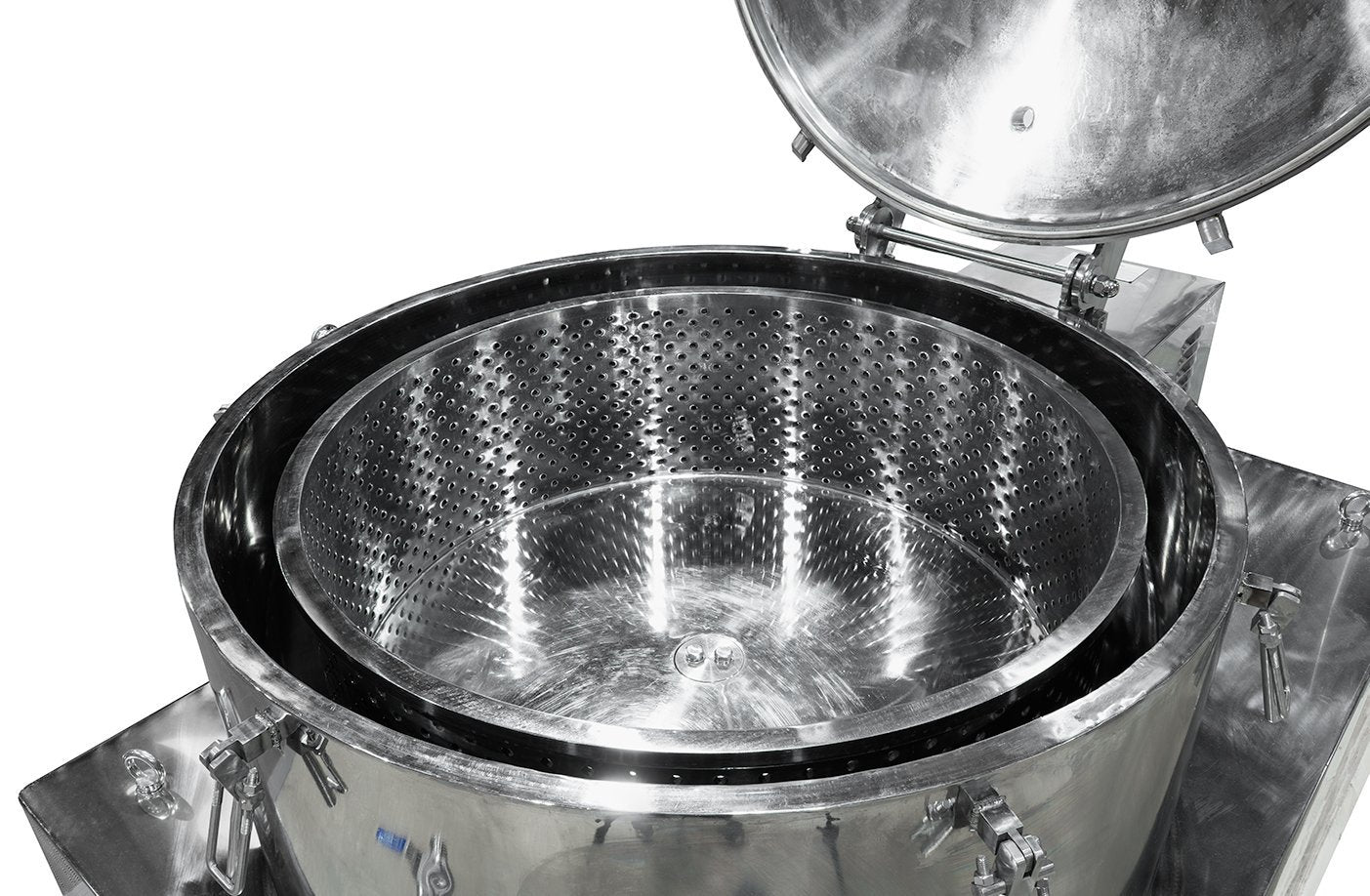

| Drum Dimensions | 39.4" (1000mm) Diameter x 14.17" (360mm) |
| Speed | 0-1000r/min |
| Weight | 4,188lbs (1900KG) |
| Exterior Dimensions | 59.06" x 82.68" x 45.28"Ā (1500x2100x1150mm) |
| Material | 304 Stainless Steel |
| Motor Power | 11KW Explosions Proof - 220v 60Hz 3 Phase |
| Ā | |
